Operation Reference
Function
Memory Interface (Accessory)

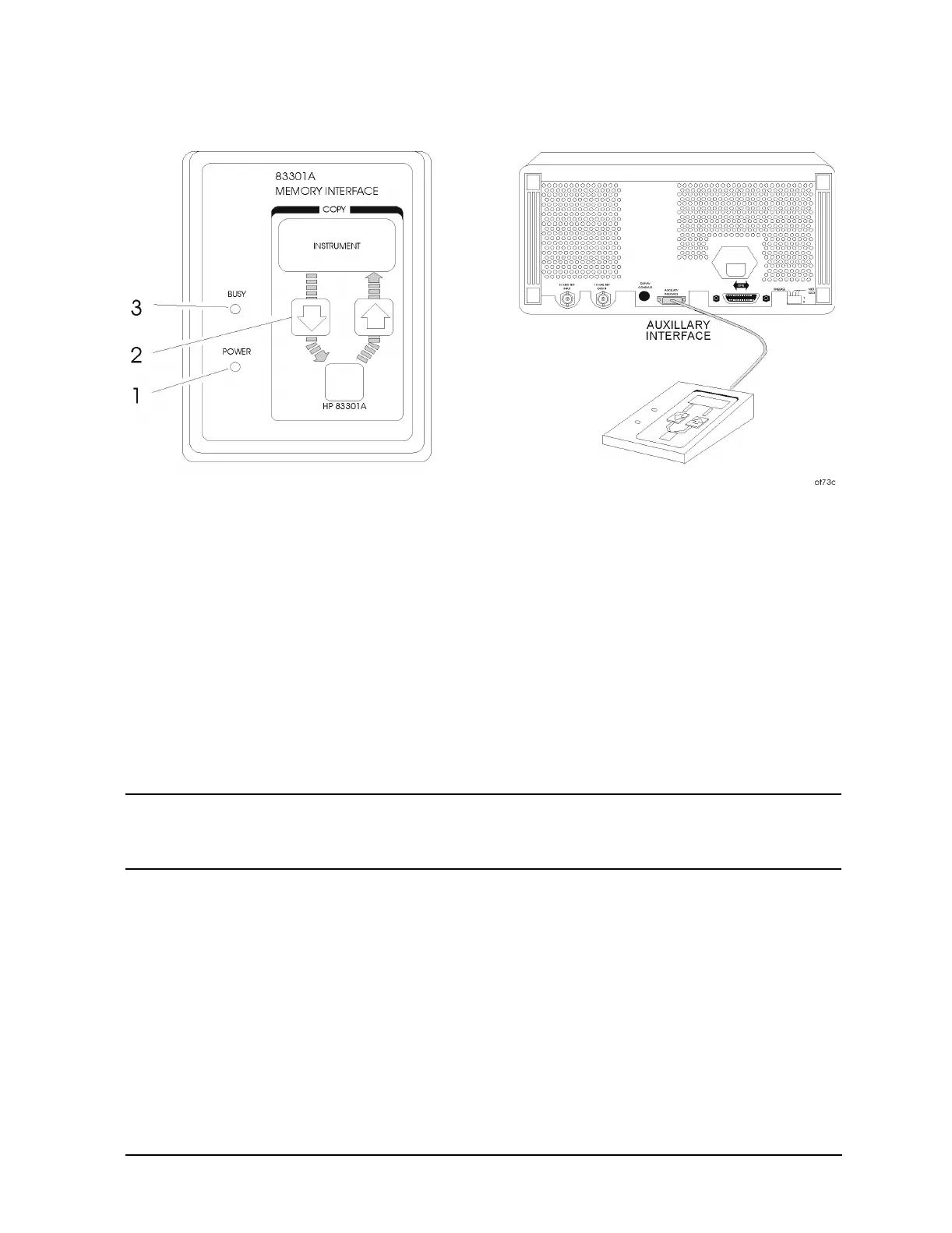

1. POWER
This light indicates that power is being supplied to the 83301A. It should light when the
cable is connected to the AUXILIARY INTERFACE connector on the rear panel of the
instrument. If it does not light, refer to Chapter 5, "Service."
2. Copy Arrow Keys
Making a Copy When the 83301A is connected to the instrument, press the ⇓ to copy all
of the memory registers saved in the instrument into the 83301A’s memory. After you have
pressed an arrow key, you must also press the
SAV key on the instrument’s front panel to
begin the copy process. Press the ⇑ and
SAV keys to copy the memory registers stored in
the 83301A into the instrument’s memory.
NOTE Copying memory into the instrument or the 83301A causes any existing
memory registers in the receiving device to be erased. It does not effect the
memory in the sending device, however.
3. BUSY
This light is turned on while memory registers are being copied from one device to another.
Attempting to operate the instrument or memory interface while this light is on may cause
the memory data to be corrupted. The light will turn off when the copy is complete.
