1a-8
Operation Examples
Using the Memory Registers
Saving Instrument Setting in Register Sequences

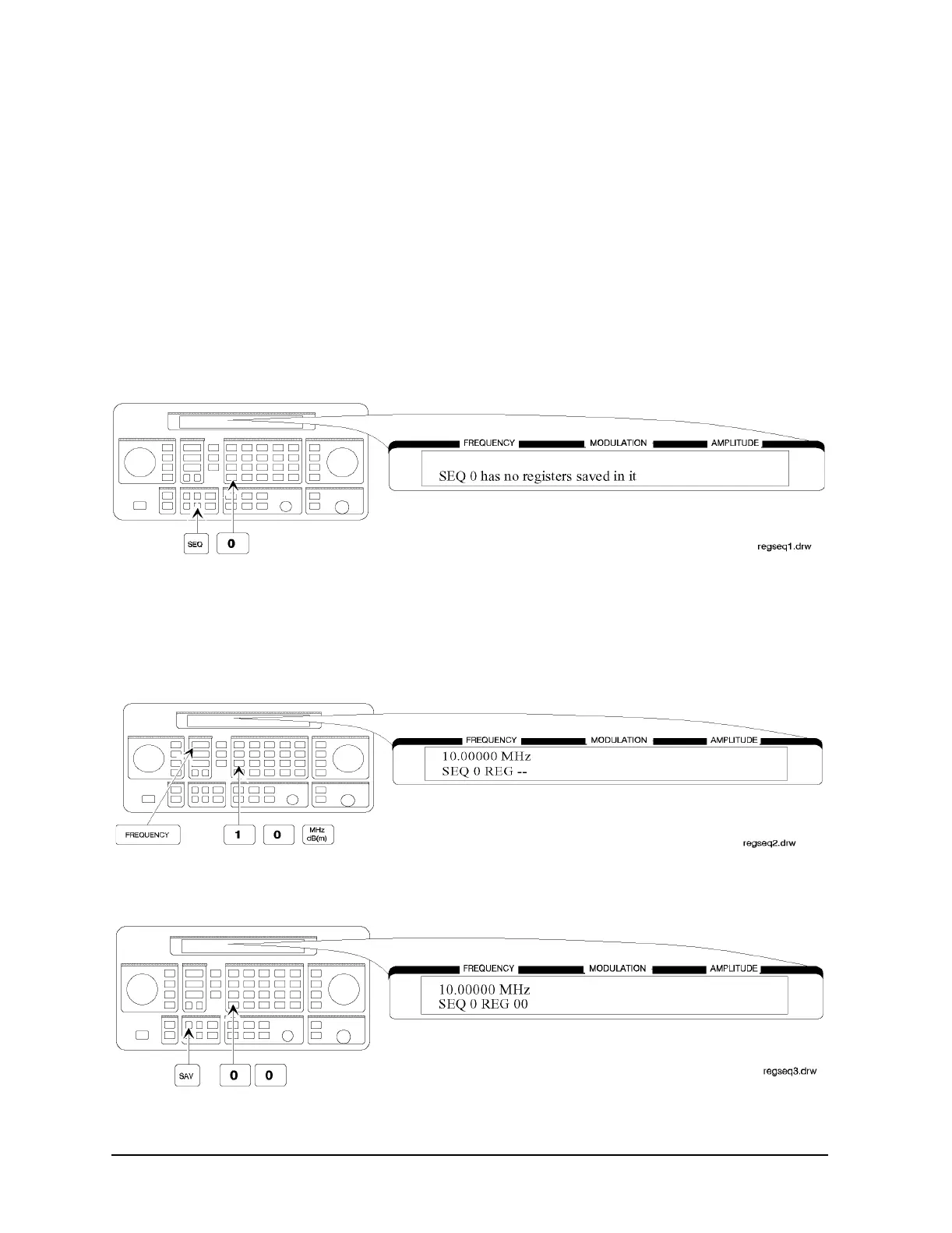

In this ten step example, you will use the memory keys to create a sequence containing
three registers. Each register will contain a different frequency setting.
Selecting the Sequence
1. Select sequence 0.
If there are registers saved in sequence 0, the message shown in the display below will
not appear. Note that the steps in this example will cause the settings in registers 00,
01, and 02 of sequence 0 to be changed.
Saving Settings in Registers
2. Set the frequency to 10 MHz.
3. Save the instrument settings in register 00.
To Next Page
