1a-24
Operation Examples
Signaling a Numeric-Type FLEX Pager (Option 1EP Only)
Use the ⇓ (NEXT) and ⇑ (PREV) keys to scroll through the encoder parameters. The
cursor will blink around the first letter of the active parameter. The ⇓ (NEXT) key
moves forward sequentially through each pager encoder parameter and the ⇑ (PREV)
key moves backward sequentially.
To move between setting for each parameter, rotate the AMPLITUDE/ENCODER knob
until the desired setting is displayed. When characters are entered by way of the
keypad (such as the capcode), terminate the entry with the
MHz dB(m) (ENTER) key.
5. Start signaling the pager after all of the encoder parameters are set by pressing the
INCR SET (START/STOP) key.
Entering Pager Encoding Settings
1. Display the first pager encoder menu.
After setting your pager’s carrier frequency and an FM deviation of 4.8 kHz (for a FLEX
pager) on the signal generator, press the
FM (ENCODER) key once again to display the
first pager encoder menu (FORMAT). The
FM (ENCODER) key toggles between the
frequency modulation menu and the pager encoder menu.
Selecting the Format Settings

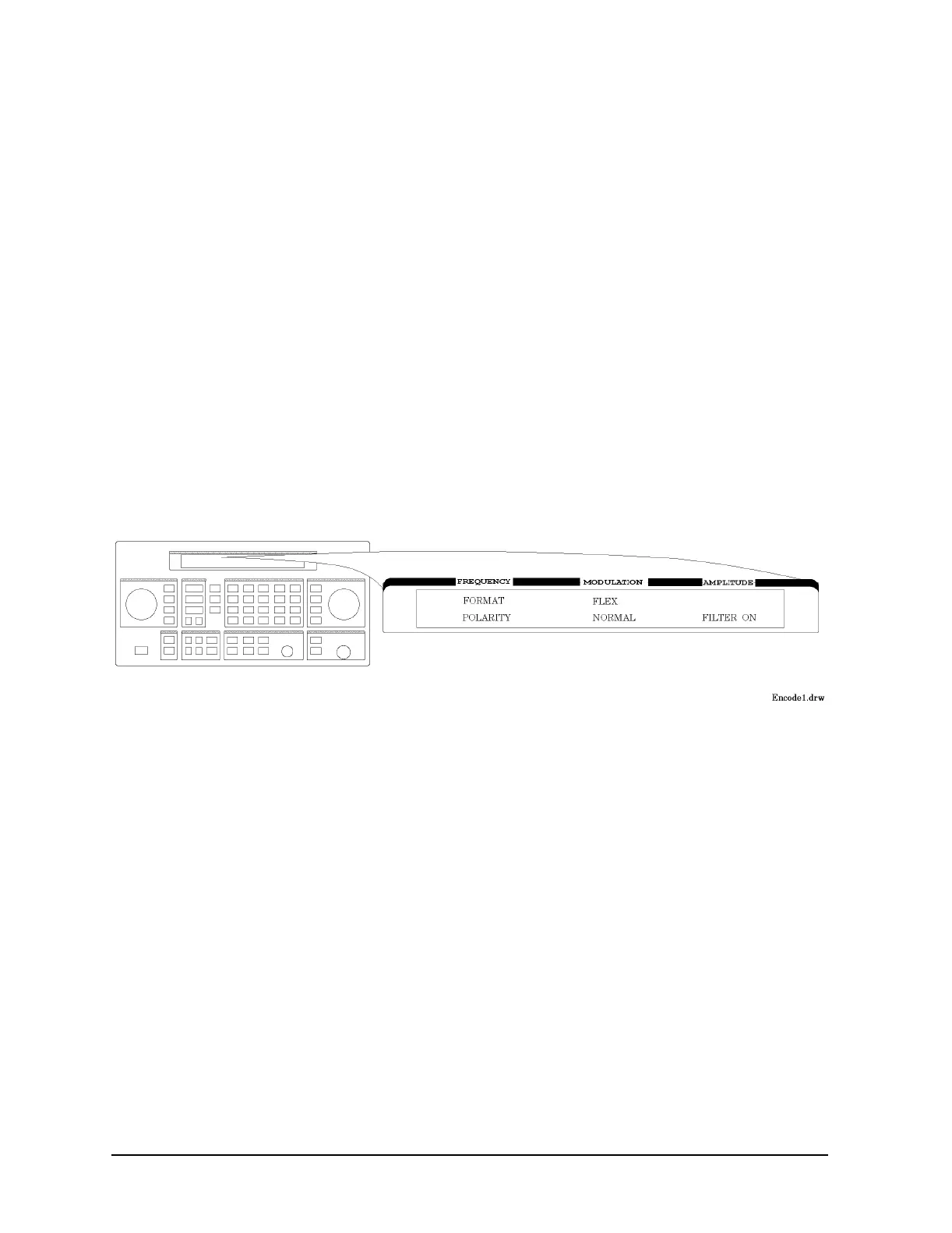

2. Set FORMAT to FLEX, POLARITY to NORMAL, and FILTER to ON.
a. With the blinking cursor on the “F” of FORMAT, set the FLEX format by rotating the
AMPLITUDE/ENCODER knob until FLEX is displayed.
b. Press the ⇓ (NEXT) key to move the blinking cursor to POLARITY, then use the
AMPLITUDE/ENCODER knob to set the polarity to NORMAL.
c. Using the ⇓ (NEXT) key and the AMPLITUDE/ENCODER knob, set FILTER to ON.
