7-59
Adjustments
Agilent Service Support Software
Reading Information from the A3 Motherboard
This is a safe way to view the information stored in the motherboard. You do not run the
risk of accidentally downloading information to the motherboard.
To read information from the A3 motherboard, follow these steps:
1. Open the HP8648 Motherboard Utility:
• For MS Windows version 3.x;
a. Open the Program Manager window.
b. Open the Service Support program group.
c. Select the HP8648 Motherboard Utility icon.
• For MS Windows 95, 98, NT:
a. Select Start.
b. Select Agilent Service Software for PC’s.
c. Select HP8648 Motherboard Utility.
2. When the User Information dialog box requesting a password is displayed, leave the
password box empty and select the Cancel button.

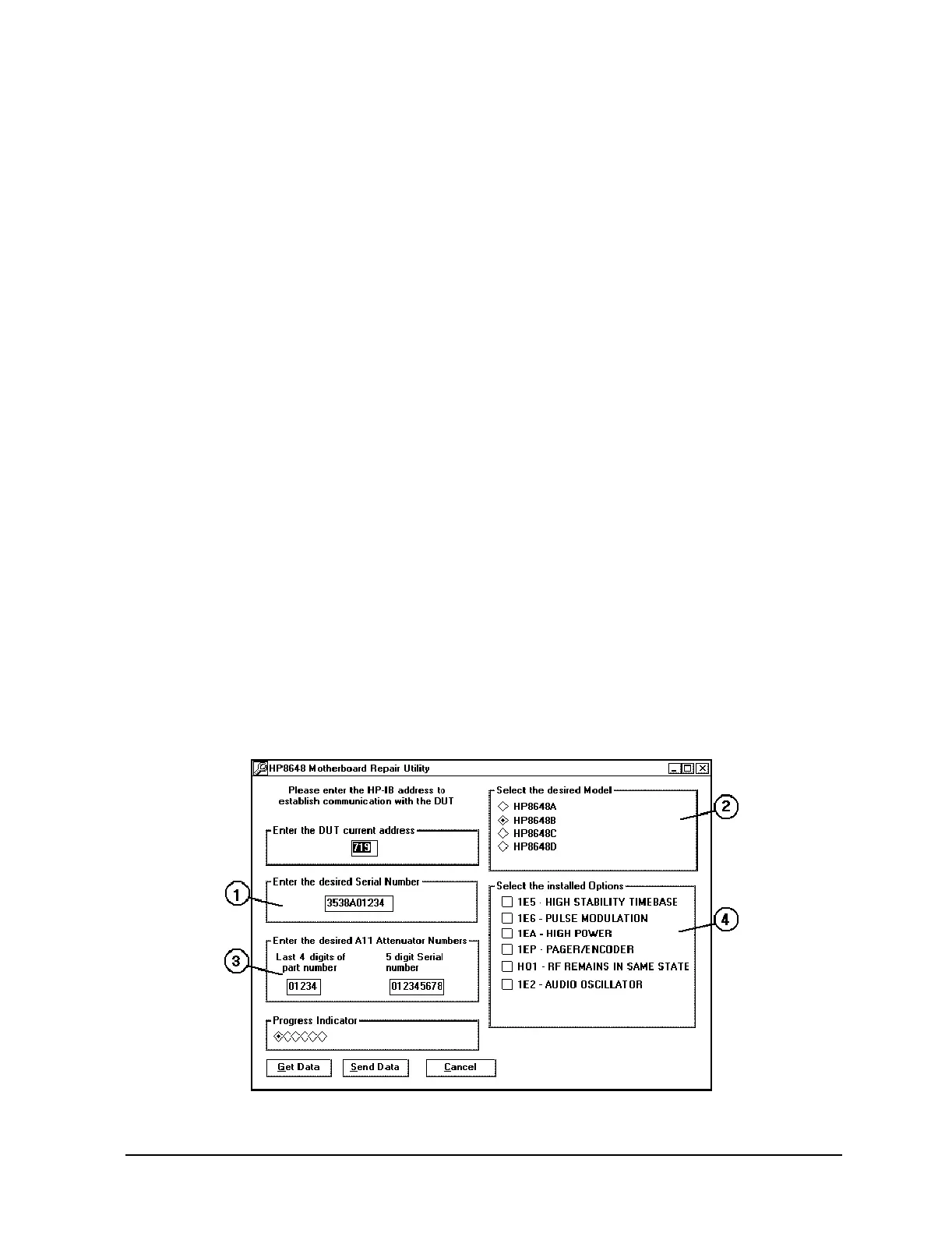

3. The HP8648 Motherboard Repair Utility window is displayed along with the following
information that is stored in the motherboard.
• instrument serial number (1)
• instrument model number (2)
• attenuator part number and serial number (3) (8648B/C/D only)
• options installed (4)
