Introduction
22 Agilent Cary 3500 UV-Vis Spectrophotometer User’s Guide

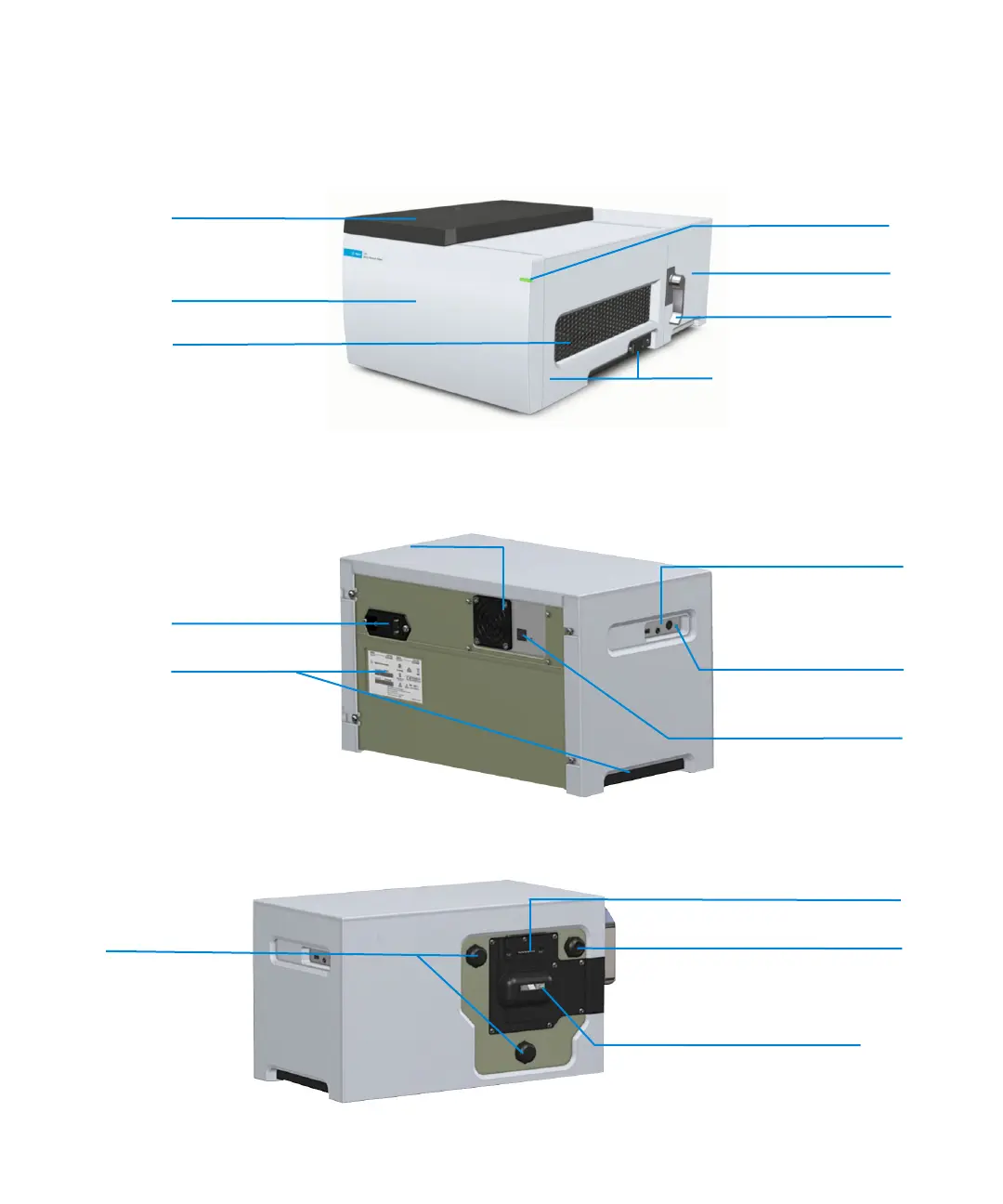

Front and right side of the module and engine
Back of the engine
Front of the engine
Sample compartment
Slide to access the cell
holder
Module securing lever
With the module in place,
push the lever down
(shown here)
to secure
the module. Push the
lever up to remove the
module
Engine
Module
Engine power and fuses
Light path from the lamp
Light passes through here into the
module
Module securing latch
When the lever is pushed down, the latch
securely holds the module to the engine
Module guide points
These will line up
with the indents in
the module to help
position the module
Module fan outlet
Engine Fan
Module power inlet,
power switch
and fuse
Only thermal versions of
the modules will require
power and fuses
LED status indicator
Engine label
The serial number is
located here and on the
left side (not shown) of
the engine
USB and external accessory
connectors
These connections are
reserved for future use
Communications port
Connect the supplied
communications cable to
this port and the computer
Engine power light
Electrical interface
