Getting Started
The Display Layout
1-12 Agilent E4419B User’s Guide

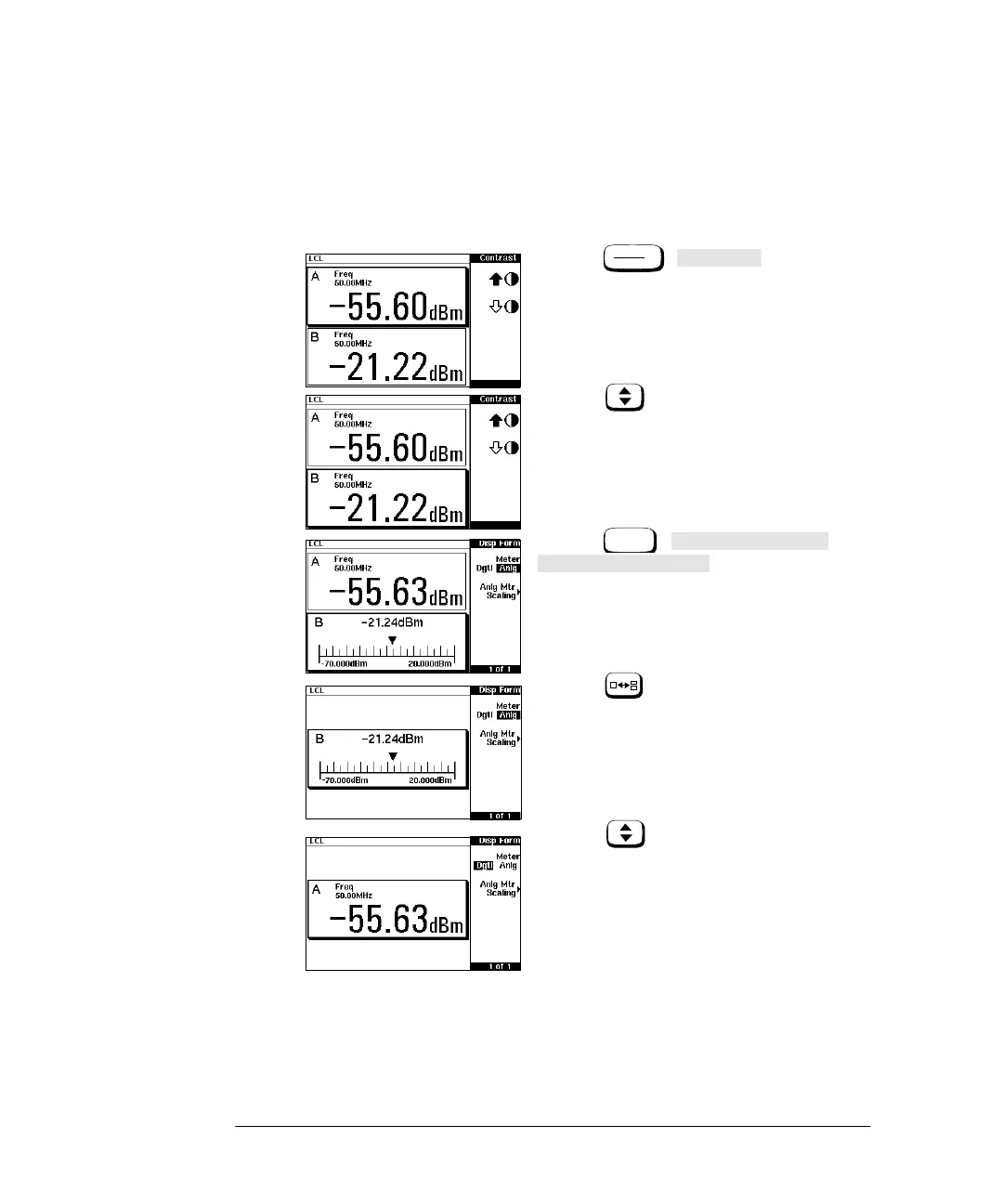

Display Tutorial
If you wish to experiment with the display layout before you move on to
make measurements, the following procedure guides you through a few of
the display setups you can choose.
1.Press , .
Notice that the upper window is the
one which is highlighted by the dark
box.
2.Press . The display remains the
same apart from the fact that it is now
the lower window that is highlighted
by the shadowed box.
3.Press , ,
(Anlg should be
highlighted). The display now shows
one analog and one digital window.
4.Press . The display now only
shows one window. This is the analog
window which was selected in the
previous step.
5.Press . The display now shows
only the digital window.
Preset
Local
Confirm
Meas
Setup
Display Format
Meter Dgtl Anlg
