Agilent Technologies E4419B - Pass;Fail Limit Indicators

Power Meter Operation
Setting Measurement Limits
Agilent E4419B User’s Guide 2-51

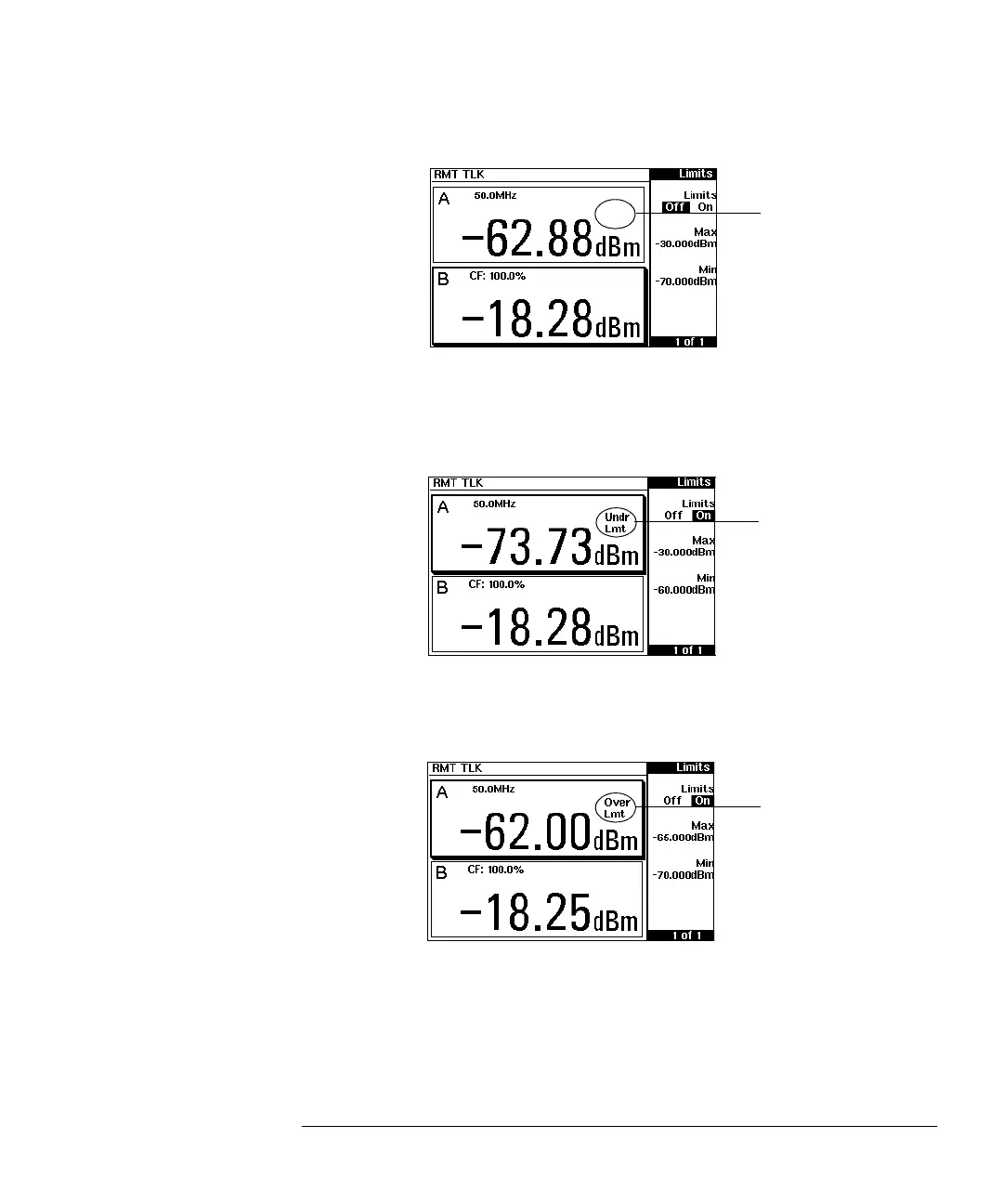

Figure 2-15: Pass/Fail Limit Indicators
This measurement
has passed which
is indicated by the
limit field being
empty.
This measurement
has failed as the
result is less than
the minimum limit
level set of
-60 dBm. This is
indicated with the
text “Undr Lmt”.
This
measurement has
failed as the result
is more than the
maximum limit
level set of
-65 dBm. This is
indicated with the
text “Over Lmt”.
