Power Meter Operation
Setting Averaging
2-42 Agilent E4419B User’s Guide

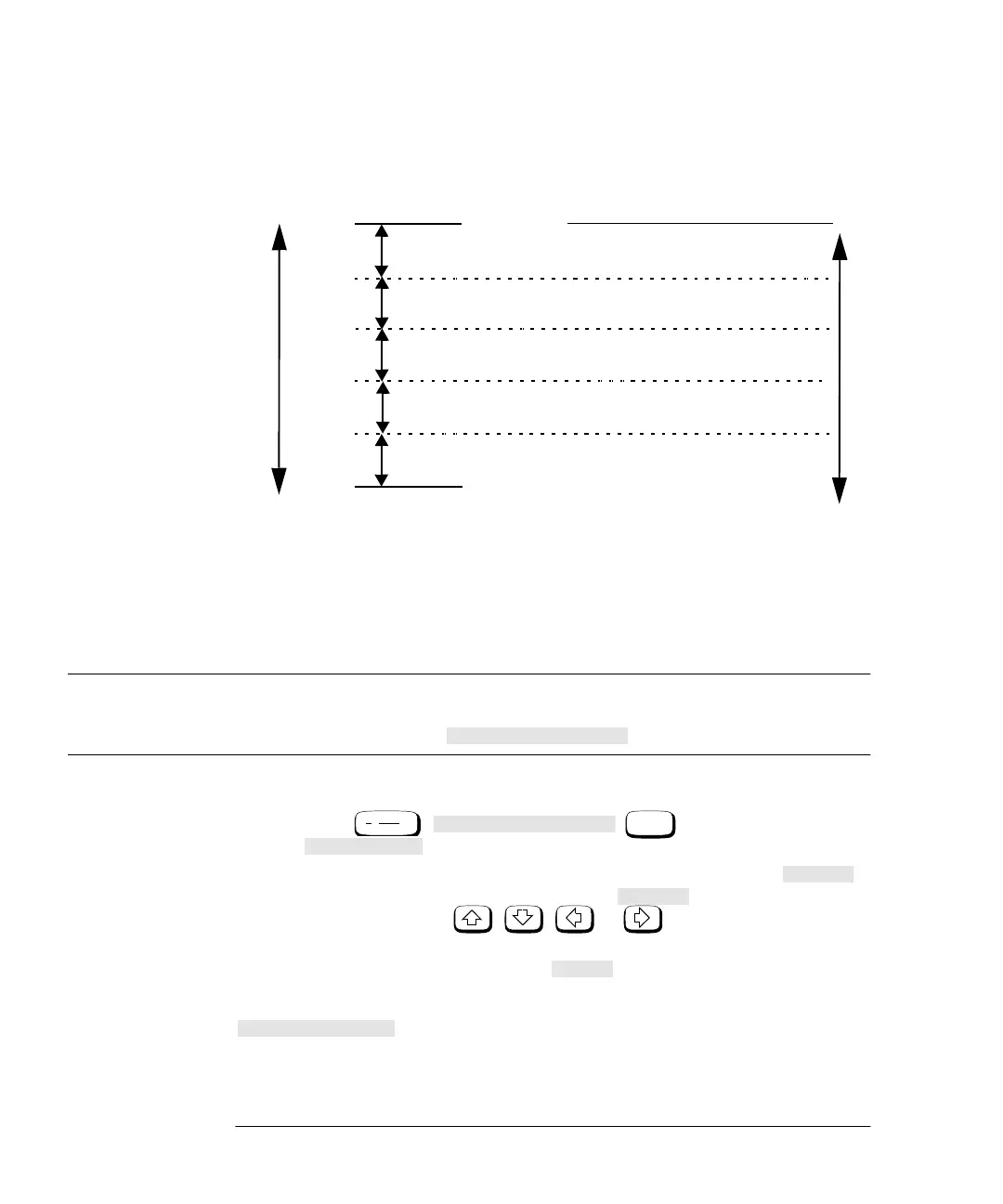

Figure 2-10: Averaged Readings
These four resolution levels represent:
• 1, 0.1, 0.01, 0.001 dB respectively if the measurement suffix is
dBm or dB.
• 1, 2, 3 or 4 significant digits respectively if the measurement suffix
is W or %.
Note The following procedure details how to set the averaging for
channel A. To set the averaging on channel B use the same
procedure using the softkey.
To set averaging:
1. Press , , . Press the
softkey to access the filter menu.
2. The current setting of averaging is displayed under the
softkey. To change this setting press . A pop up window
appears. Use the , , or keys to set your filter
length.
3. To confirm your choice press .
The filter can be disabled and re-enabled simply by pressing
.
10 dB
10 dB
Minimum Sensor Power
Maximum Sensor Power
Power Sensor Dynamic Range
10 dB
10 dB
1234
1 8 128 128
Resolution Setting
Number of Averages
1 1 16 256
11232
11116
1118
B Input Settings
System
Inputs
A Input Settings
More
ChA Filter
Length
Length
Enter
Filter Off On
