108 Chapter 6
Replacement Procedure
Base Plate Replacement
NOTE When you fasten the ground cable and the Base Plate with the two TORX T20 screws, set
screwdriver's torque to 21.1 in-lb.
When you fasten the Base Plate with the seven TORX T20 screws, set screwdriver's torque
to 21.1 in-lb.
When you fasten the Shield Angle with the two TORX T10 screws, set screwdriver's
torque to 8.7 in-lb.

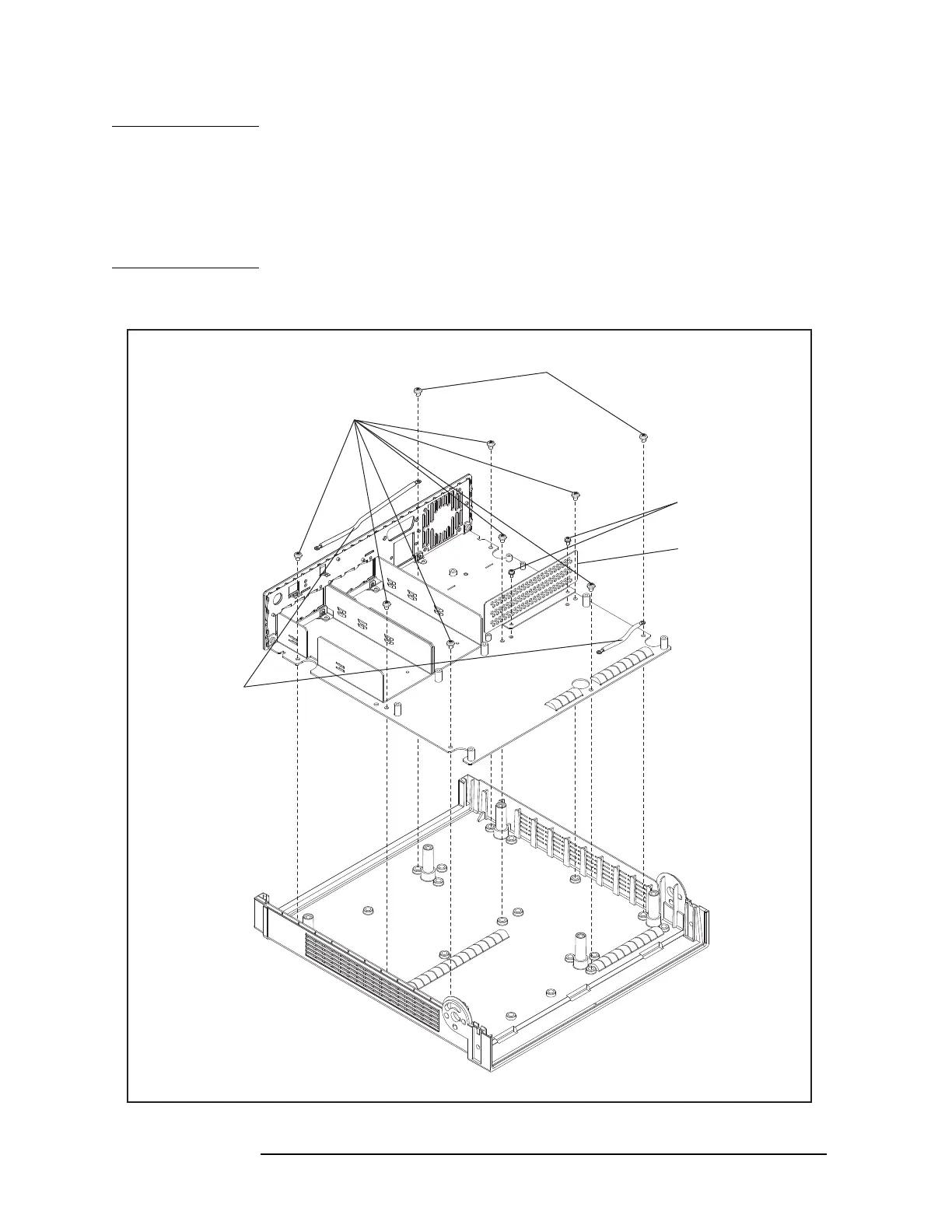

Figure 6-10 Base Plate Board Removal
㪼㪋㪐㪏㪇㪸㫊㪼㪈㪇㪋㪋
㽵
㽴
㽲
㽳
㽶
