Agilent Technologies E4980A Service Guide

138 Appendix C
Power Requirement
Replacing Fuse
Replacing Fuse
Fuse Selection
Select proper fuse according to the Table C-1.
Setting up the fuse
Use the fuse that meets the following specifications.
UL/CSA type, Slo-Blo, 5x20mm miniature fuse, 3A 250V (part number: 2110-1017)
Spare fuses are available from Agilent Technologies sales office. To check or replace the
fuse, disconnect the power cable and pull out the fuse holder (refer to
Figure C-1) towards
you (refer to Figure C-2).

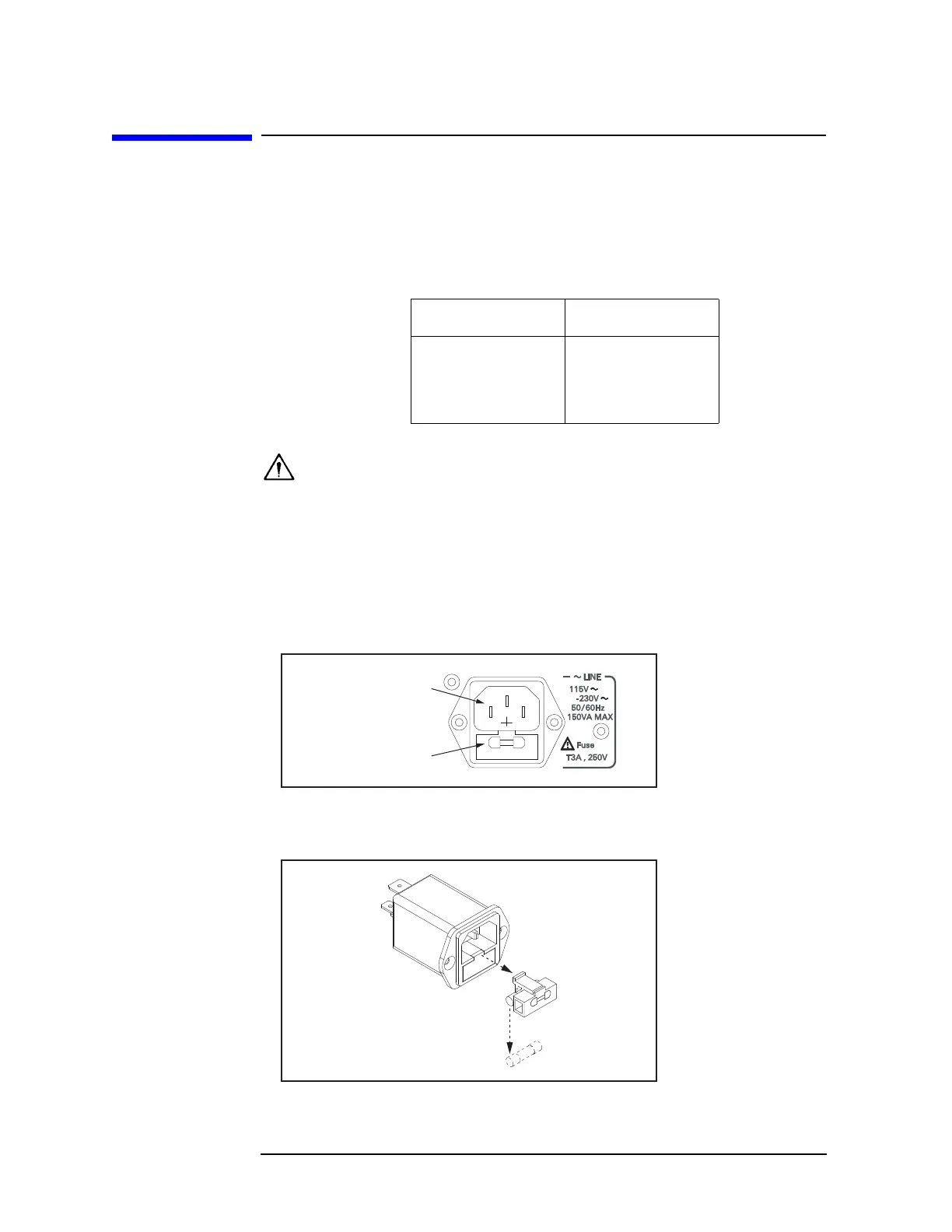

Figure C-1 Fuse holder and power cable socket
Figure C-2 Removing the fuse
Table C-1 Fuse Selection
Fuse Rating/Type Fuse Part Number
3A 250Vac
UL/CSA type
Time Delay
2110-1017
㪼㪋㪐㪏㪇㪸㫊㪼㪈㪇㪊㪐
Power cable receptacle
Fuse holder
USE ONLY WITH A 250V FUSE
㪼㪋㪐㪏㪇㪸㫊㪼㪈㪇㪋㪇
㪬㪪㪜㩷
㪦
㪥㪣
㪰
㩷
㪮
㪠㪫
㪟㩷㪘㩷㪉㪌
㪇
㪭
㩷
㪝㪬㪪㪜
