Chapter 5 69
Replaceable Parts
Replaceable Parts List
2. Chapter Title 3. Chapter Title
4. Chapter Title
5. Chapter Title
5. Replaceable Parts
Top View (Tested PCA A2 (Analog Board))

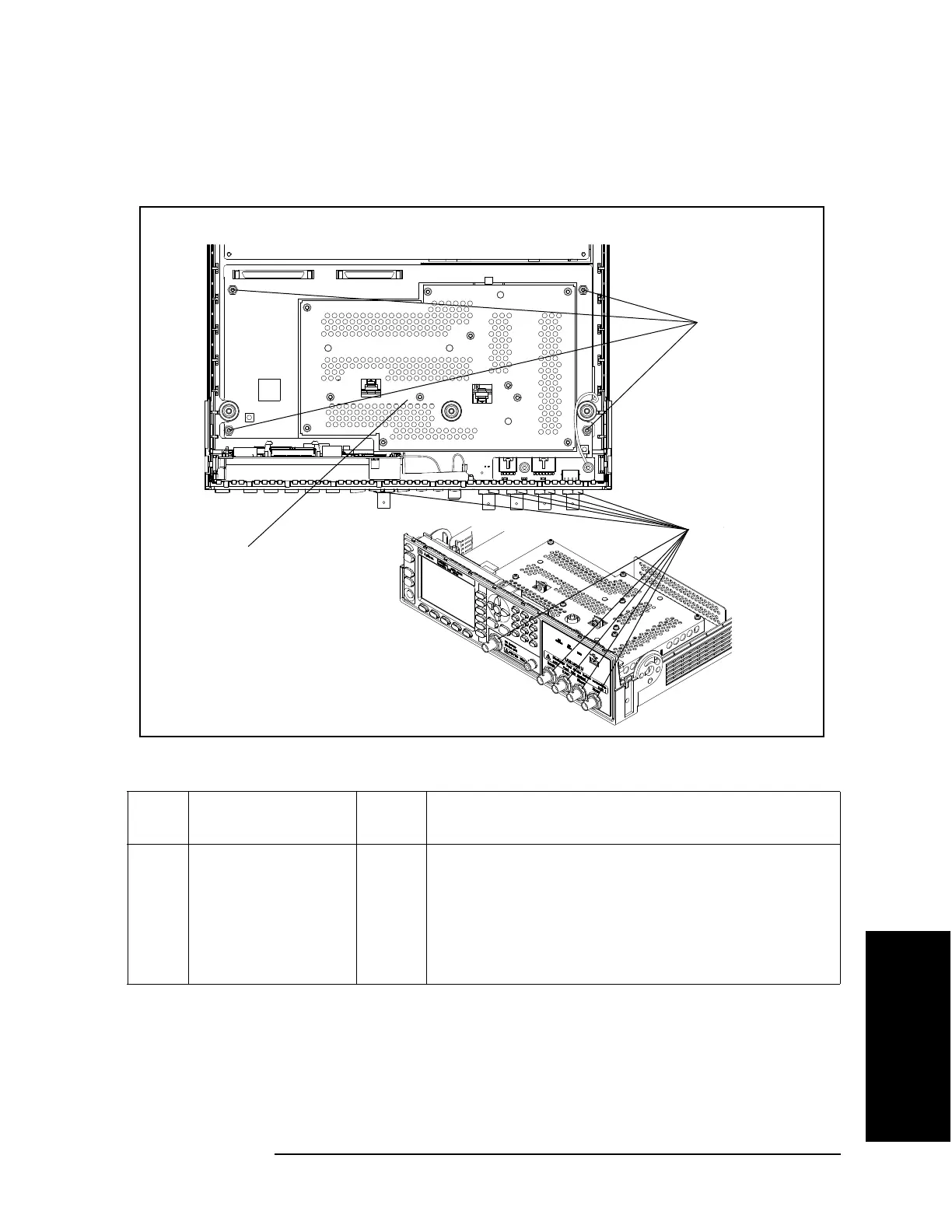

Figure 5-5 Top View (Tested PCA A2 (Analog Board))
Table 5-4 Top View (Tested PCA A2 (Analog Board))
Ref.
Desig.
Agilent Part Number Qty. Description
1 E4980-62002 1 TESTED PCA A2 (ANALOG BOARD)
E4980-69002 1 RSTRD E4980-62002 ANALOG
2 0380-4989 4 STANDOFF-HEX M4X0.7
3 2940-0256 5 NUT-HEX-DBL-CHAM 1/2-28-THD .095-IN-THK
4 3050-2230 5 WASHER-SPR-WAVY 13-MM-ID 17-MM-OD
㪼㪋㪐㪏㪇㪸㫊㪼㪈㪇㪇㪋
㽲
㽳
㽴㽵
