2Performance Tests
32 E4416A/E4417A Power Meters Service Guide
Test Procedure 2
Equipment
• Range Calibrator: Agilent 11683A Option H01
• Power Sensor Cable: Agilent E9288A
• DC Calibrator: Datron 4000A
Test S et up
NOTE
This test procedure makes use of a 11683A Range Calibrator fitted with Option H01.
The measurement uncertainty of this test procedure is significantly lower than the
previously described method (refer to Appendix D, Measurement Uncertainty Analysis -
Instrument Accuracy Test for a description of the measurement uncertainty analysis).
As such, this test procedure should be used to ensure the power meter meets its
published specification.

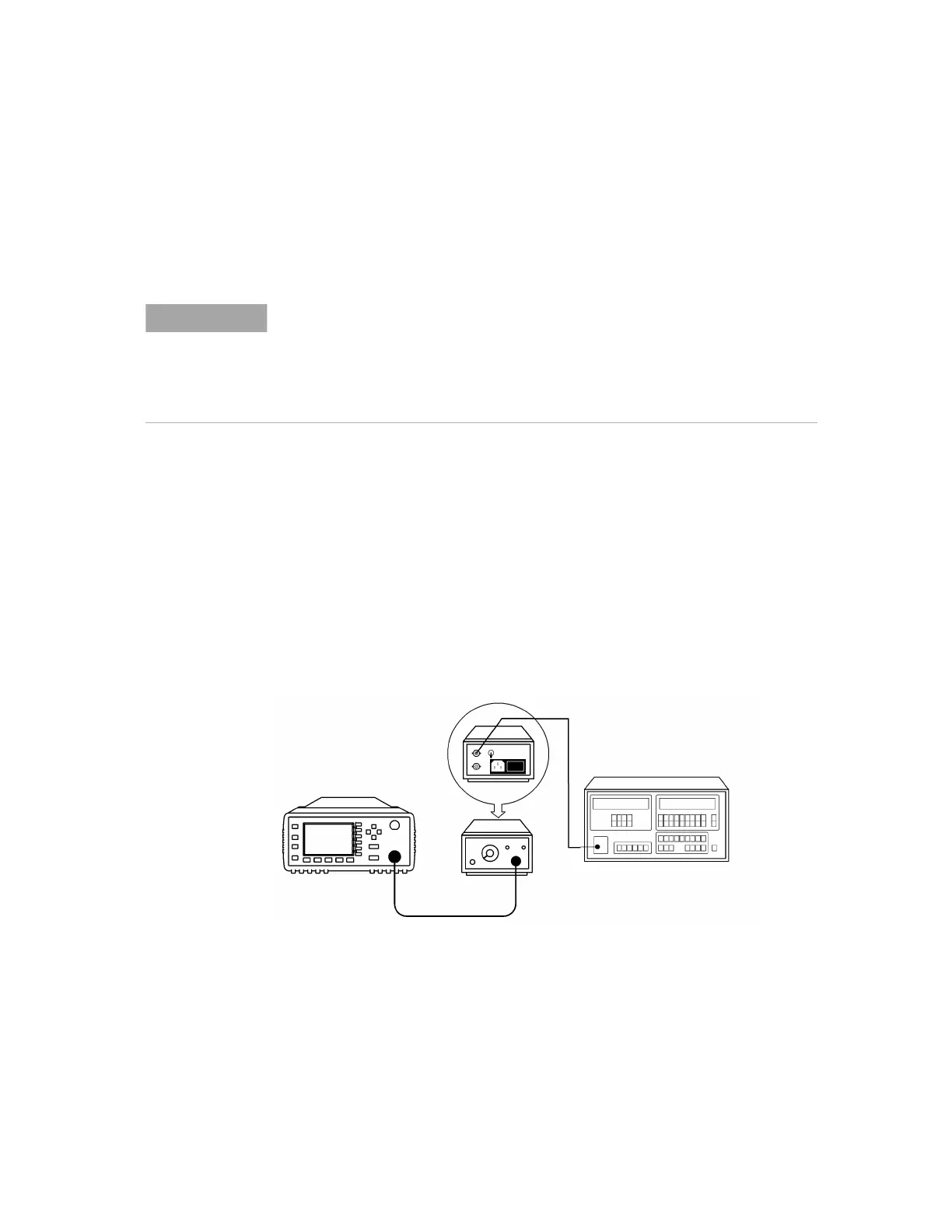

Figure 2-5 Instrument Accuracy (Average Path) Test Setup
Power Meter
Power sensor cable
Range Calibrator
DC Calibrator
CHANNEL A
