54 1200 Series DAD and MWD User Manual
4Using the Detector

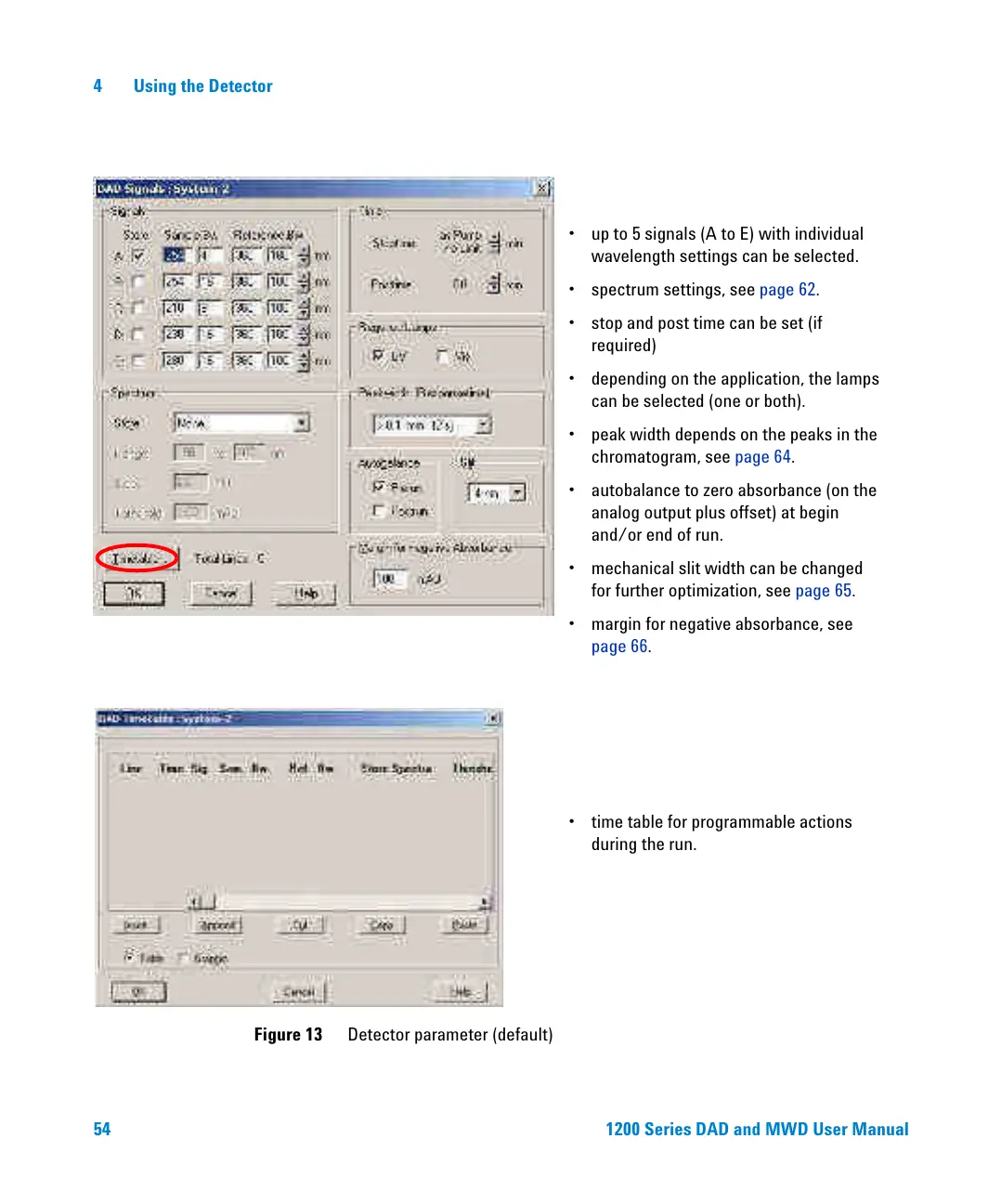

Figure 13 Detector parameter (default)
• up to 5 signals (A to E) with individual
wavelength settings can be selected.
• spectrum settings, see page 62.
• stop and post time can be set (if
required)
• depending on the application, the lamps
can be selected (one or both).
• peak width depends on the peaks in the
chromatogram, see page 64.
• autobalance to zero absorbance (on the
analog output plus offset) at begin
and/or end of run.
• mechanical slit width can be changed
for further optimization, see
page 65.
• margin for negative absorbance, see
page 66.
• time table for programmable actions
during the run.
