General Maintenance 5
5977 Series MSD Operation Manual 139

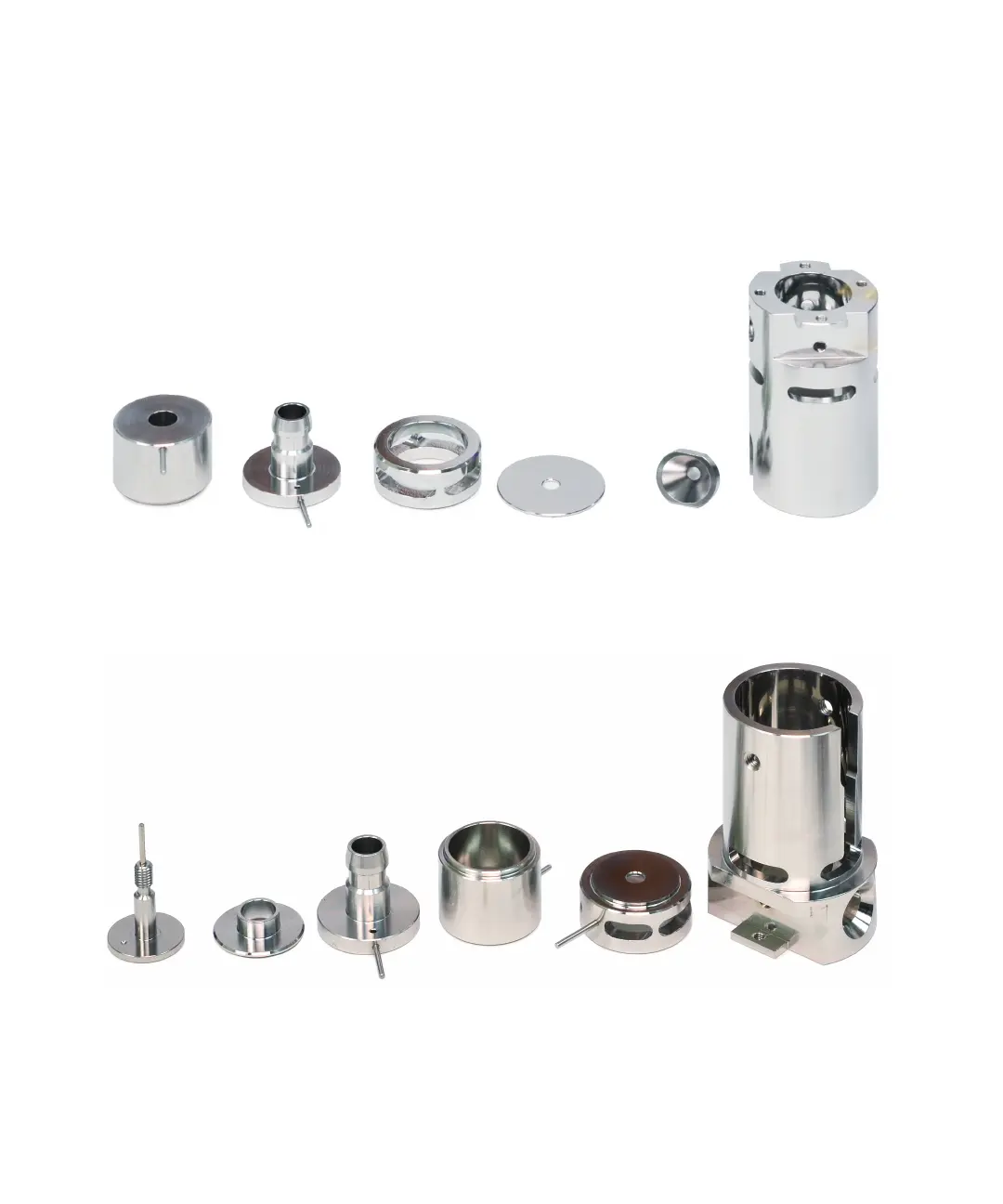

Figure 23 Source parts to be cleaned
Ion focus lens
Entrance lens
Drawout
cylinder
Drawout plate
Interface socket
Source body
Standard or inert EI ion source parts to be cleaned
Extractor EI ion source parts to be cleaned
Repeller
Insulator
Entrance
lens
Ion focus lens
Extractor lens
Source body
