1 Introduction to the Variable Wavelength Detector
Optical System Overview
Flow Cell
A variety of flow-cell cartridges can be inserted using the same quick and simple
mounting system.
The flow cells have an integrated RFID tag that contains the flow cell specific
information (e.g. part number, cell volume, path length, ...). A RFID tag reader
reads out this information and transfers it to the user interface.

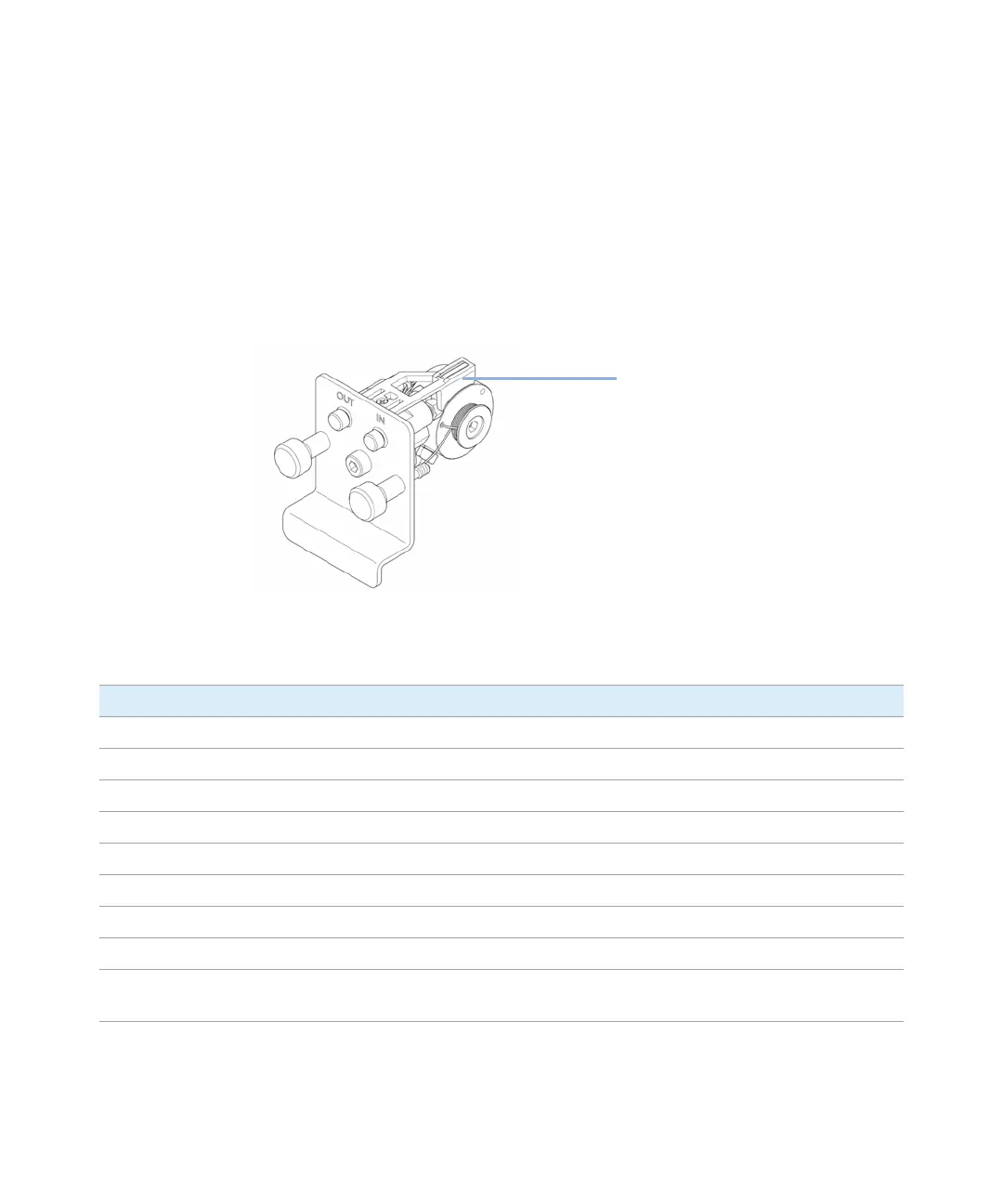

Figure 4 Flow Cell with RFID tag
Table 1 Flow Cell Data
STD Semi-micro Micro High Pressure
Maximum pressure 40 (4) 40 (4) 120 (12) 400 (40) bar (MPa)
Path length 10 (conical) 6 (conical) 3 (conical) 10 (conical) mm
Volume 14 5 2 14 µL
Inlet i.d. 0.25 0.17 0.12 0.25 mm
Inlet length 750 250 310 750 mm
Outlet i.d. 0.30 0.17 0.17 0.17 mm
Outlet length 120 120 120 120 mm
Total volume 60.77 14.49 14.00 60.77 µL
Materials in contact
with solvent
SST, quartz, PTFE,
PEEK
SST, quartz, PTFE SST, quartz, PTFE SST, quartz, Kapton
