Agilent InfinityLab LC Series VWD User Manual 45
3Using the Module
Detector Control Settings
Detector Control Settings

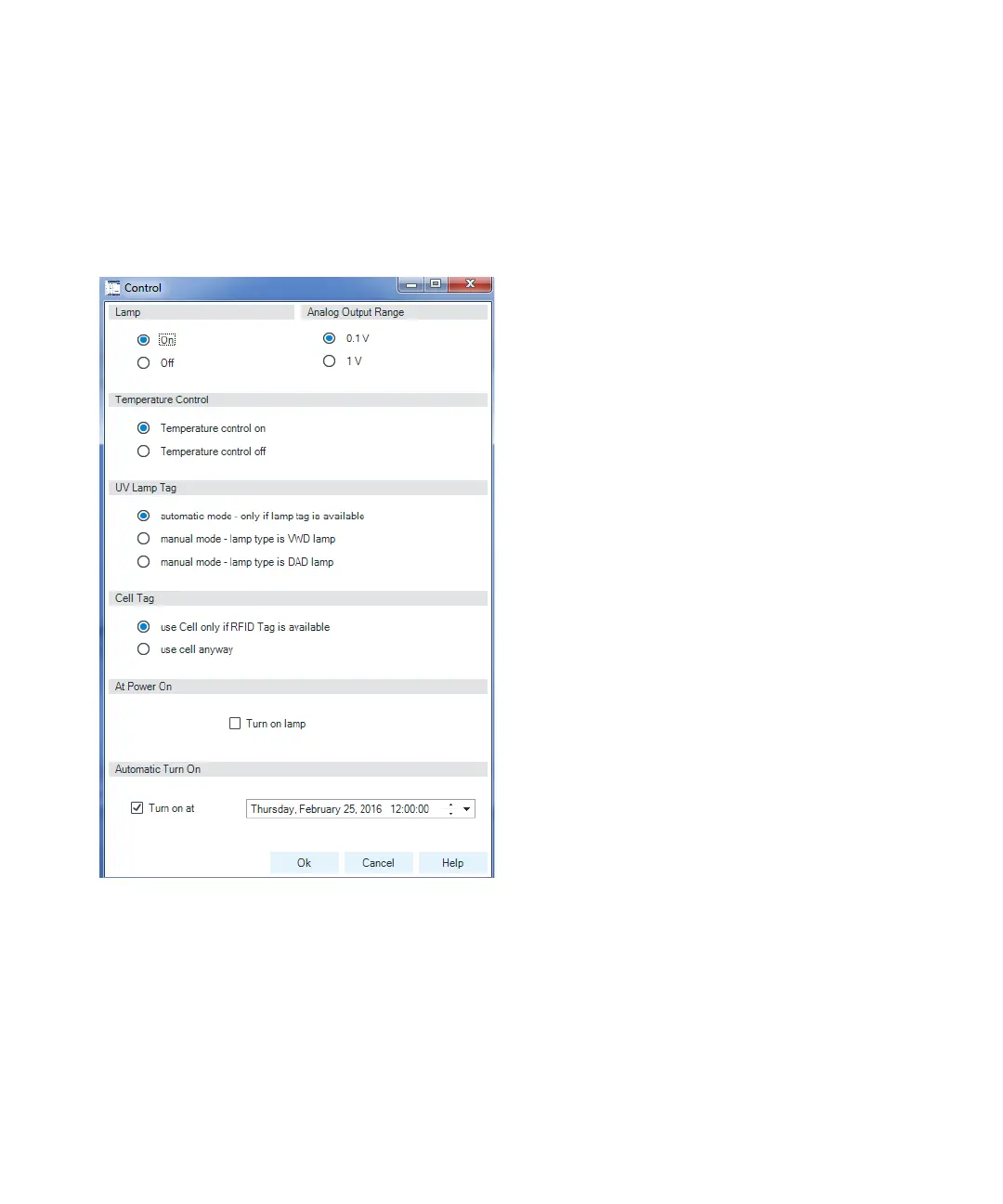

The figure shows the default settings.
•Lamps: can be turned ON/OFF.
• Analog Output Range: can be set to either 100 mV or
1 Vfull scale, for additional settings see “Analog” (under
Table 5 on page 47).
• Temperature Control: The optical unit is kept on constant
temperature (some degrees above ambient) and
improves the baseline stability in unstable environments,
see also “Environment” on page 28.
If the flow cell temperature is critical for your chromatog-
raphy or your environment is stable, you may set the Tem-
perature Control to off. This will lower the optical unit and
flow cell temperature by some degree.
• UV Lamp Tag
• Automatic detects a lamp with RFID tag. If no RFID
tag lamp is used, “UV lamp not ready” is displayed
and it cannot be ignited. A compatible mode has to be
selected based on the used lamp; see Non-RFID-tag
lamp information below.
• Manual (by PN) uses the selected “heating” mode.
This mode can also be used when the RFID tag of the
standard lamp (Deuterium lamp (with RFID tag)
(G1314-60101)) is not recognized (defect RFID tag or
reader).
• Non-RFID-tag lamp: In case a non-RFID-tag lamp is
used, the user interface will show this when selecting
a compatible mode. You may operate the detector
outside of the guaranteed specification. The correct
selection is important for optimal performance and
lifetime.
• Cell Tag: Automatic mode for Agilent flow cells with RFID
tags. If no RFID tag cell is used, detector icon will become
gray (cell tag not ready) and analysis is disabled.
•At Power On: automatic lamp-on at power on.
•Automatic Turn On: automatic detector power on.
