Technical Information
Oil and Filter Cartridge Replacement Procedures
MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (H.00) 78/104
Oil and Filter Cartridge Replacement Procedures
Oil Change Procedure
1. Place a tank for waste oil under the oil drain plug.

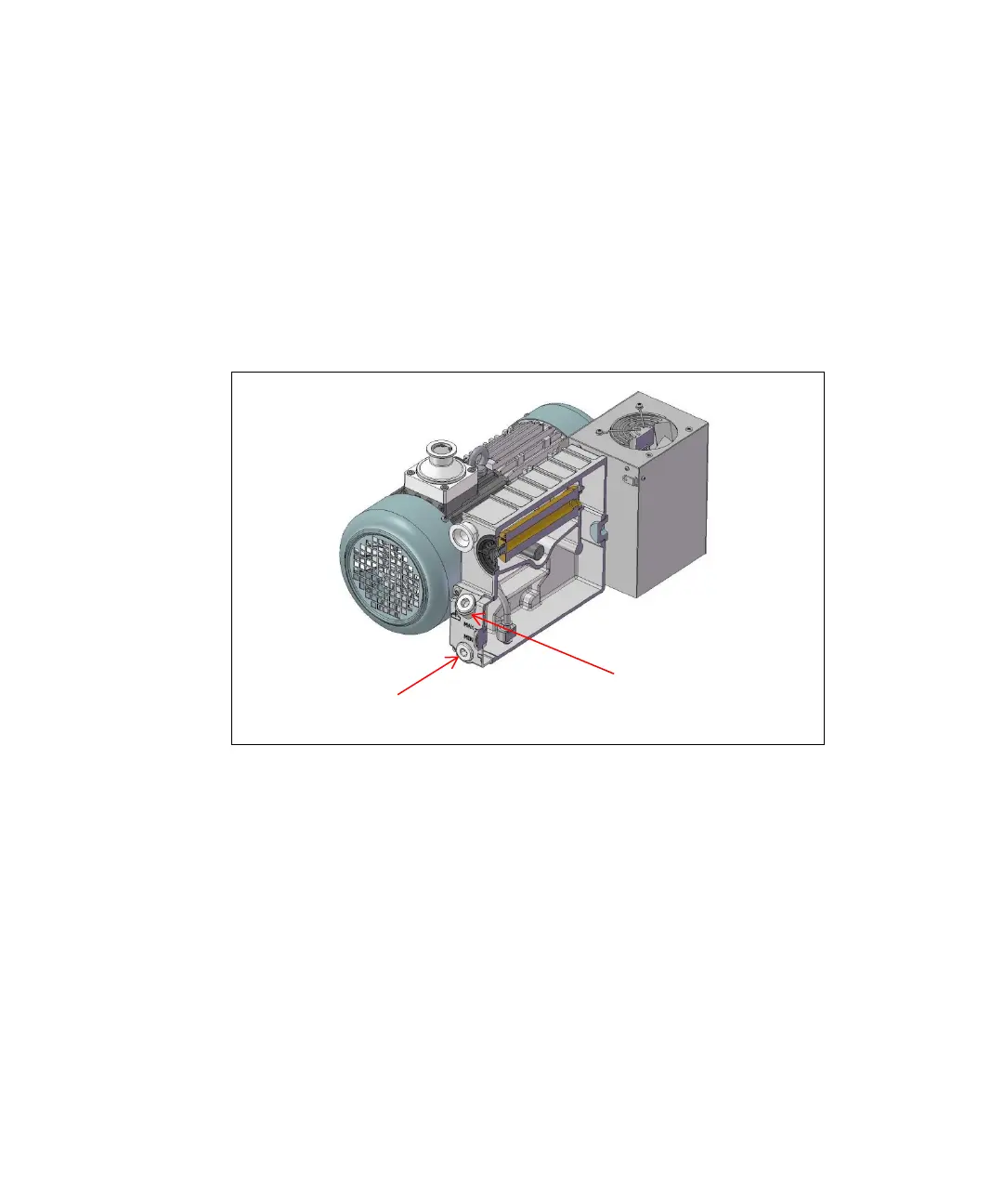

Figure 6
2. U
nscrew slowly the oil drain cap rotating it anti-clock wise using
a 10mm hex key. Let the oil flow out. In the meantime clean the
inside of the drain plug.
3. After closing the drainage hole with its plug make the pump
perform a number of turns, giving it a brief current pulse, so as to
let residual oil in the pump chambers flow out. Then drain off the
residual oil again.
4. After the oil has been drained, close the drain plug tight; take the
tank of waste oil away and clean thoroughly, using rags of cotto
n
o
r other suitable material to dry.
Oil drain Cap
Fill oil cap
