Installation Note E4440-90613 25
Installation Procedure
45.Refer to Figure 18. Locate and install Ribbon Cable 8150-5698 (2) from the kit
(Mixer Bias Board to Unpreselected Mixer). Connect as shown.
NOTE The ribbon cable contacts are insulated on one side. Assure the exposed
contacts are pointed down when installing the cable into the mixer.

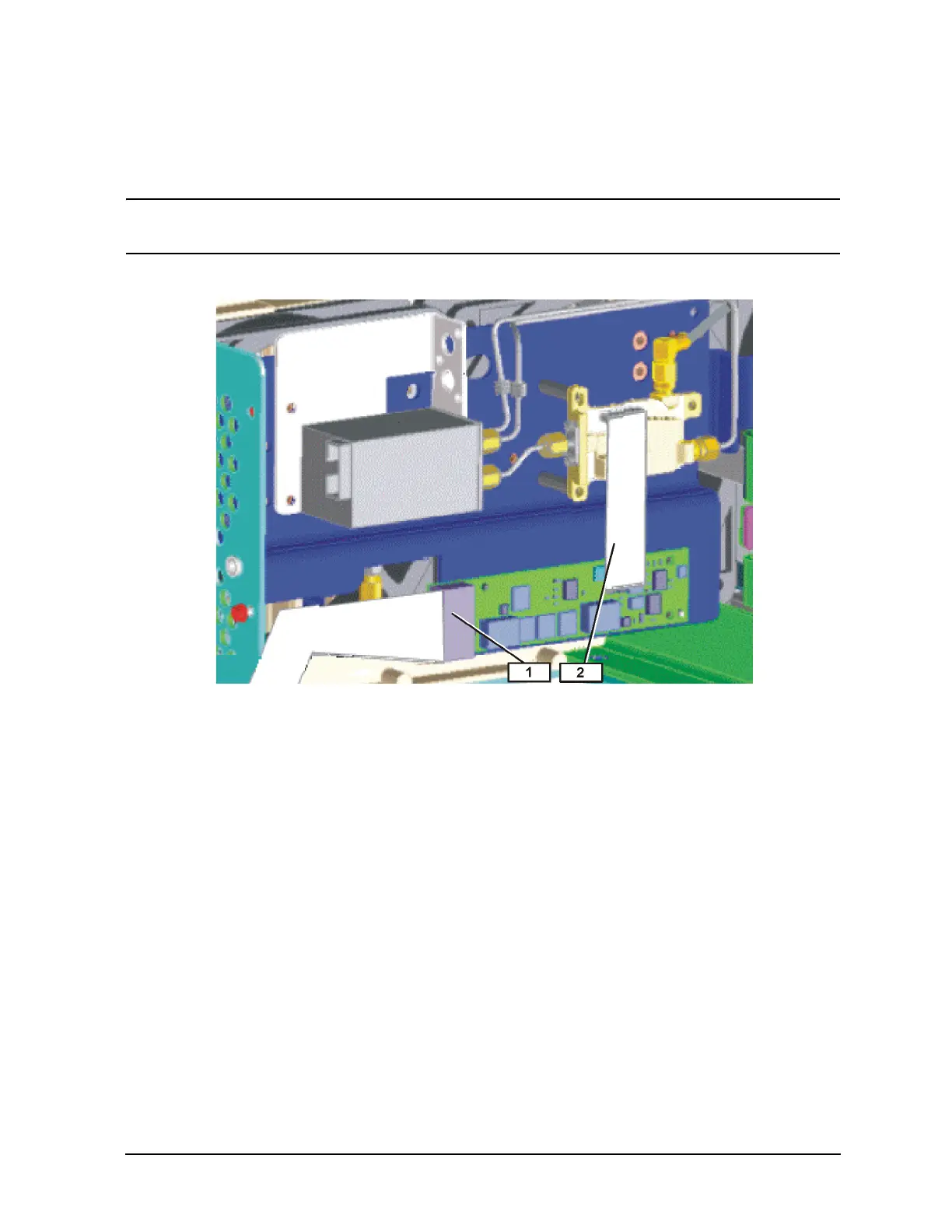

Figure 18 Mixer Bias Board Ribbon Cable
46.Locate and install Ribbon Cable E4440-60397 (1) from the kit. This cables reference
designator is W95. Connect one end of the Ribbon Cable to the Mixer Bias Board and
the other end to the Option Driver assembly J7. Refer to Figure 33.
47.Refer to Figure 34 for cable routing.
