Agilent Technologies PSA Series Installation Note

24 Installation Note E4440-90613
Installation Procedure
44.Refer to Figure 17. Install Mixer Bias Board to the chassis by carefully aligning the
board over the mounting holes and secure with four screws (0515-0372) as shown.
Torque to 9 in-lbs. If you need to re-position the board to get the screws to line up
make sure the Thermal Pad is still stuck to the Mixer Bias Board.

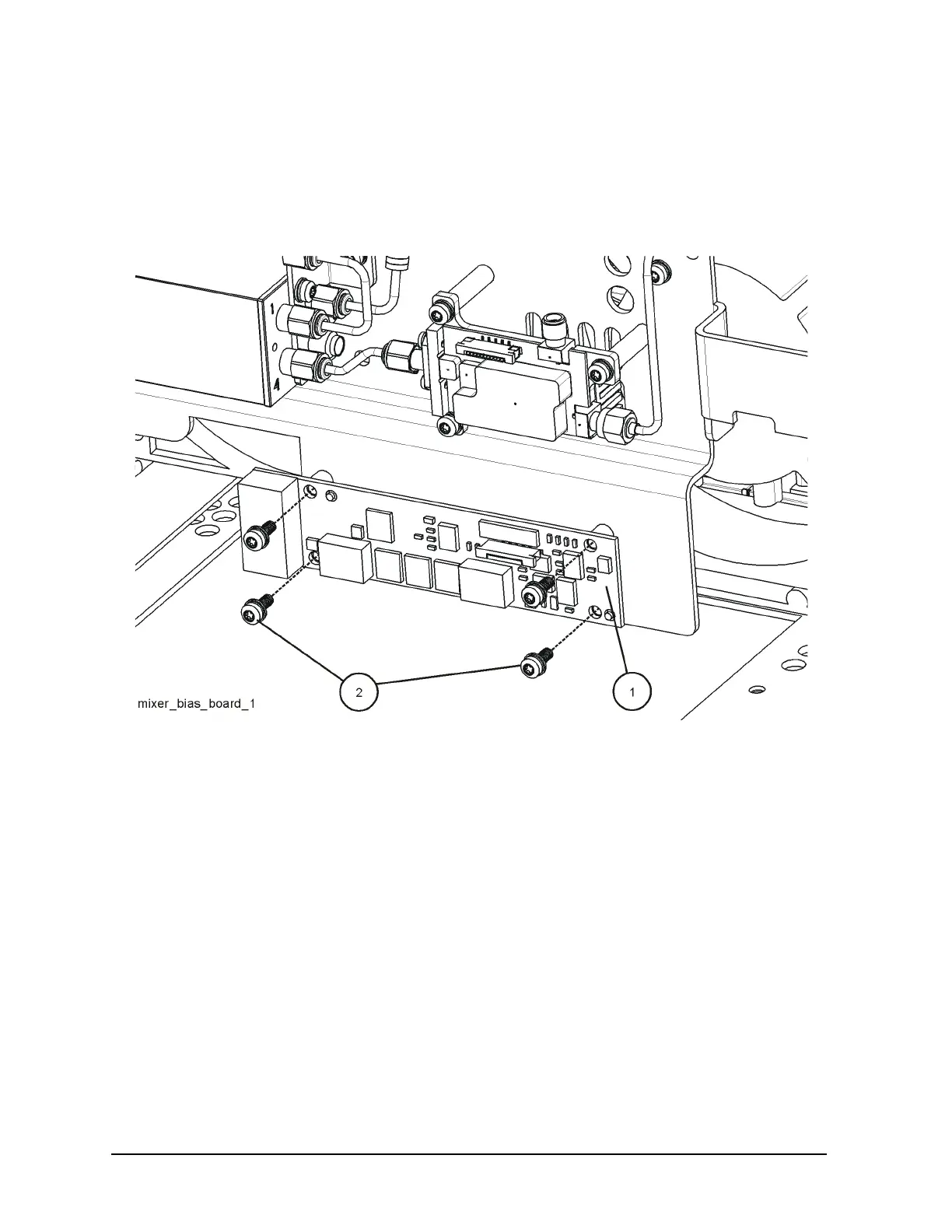

Figure 17 Mixer Bias Board Installation
