38 Installation Note E4440-90613
Installation Procedure
35.Refer to Figure 31. Locate and install Ribbon Cable 8150-5698 from the kit. This
cables reference designator is W90 (2). Connect between the Mixer Bias Board and
the Unpreselected Mixer.
NOTE The ribbon cable contacts are insulated on one side. Assure the exposed
contacts are pointed down when installing the cable into the mixer.

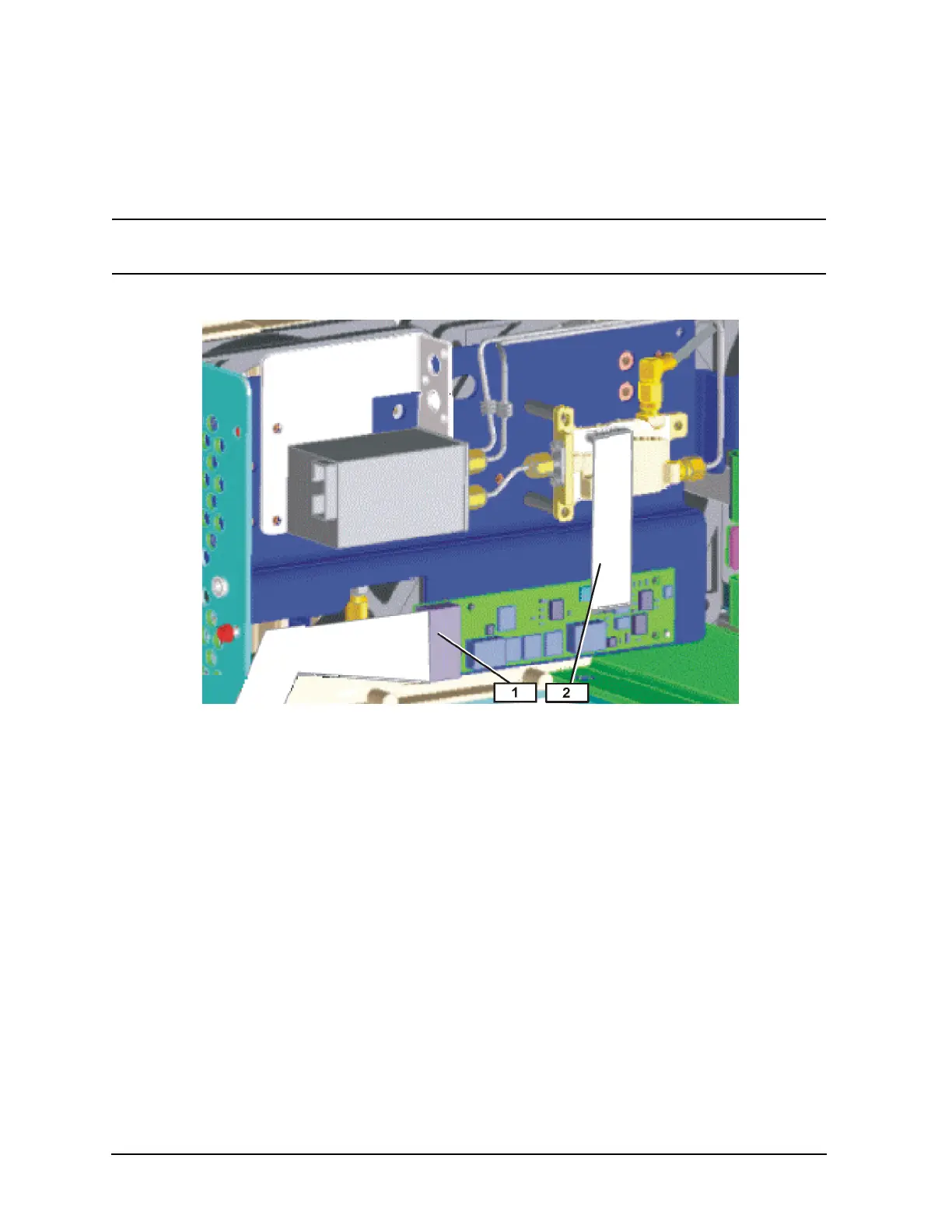

Figure 31 Mixer Bias Board Ribbon Cable
36.Locate and install Ribbon Cable E4440-60397 from the kit. This cables reference
designator is W95. Connect the Ribbon Cable (1) to the Mixer Bias Board.
37.Connect Cable W94 (Coaxial Switch SW3 Port C to 3rd Converter Assembly J1).
