Agilent Technologies PSA Series Installation Note

Installation Note E4440-90613 37
Installation Procedure
34.Refer to Figure 30. Install Mixer Bias Board (1) to the Chassis by carefully aligning
the board over the mounting holes and secure with four screws (2) (0515-0372).
Torque to 9 in-lbs. If you need to re-position the board to get the screws to line up
make sure the Thermal Pad is still attached to the voltage regulator on the Mixer
Bias Board.

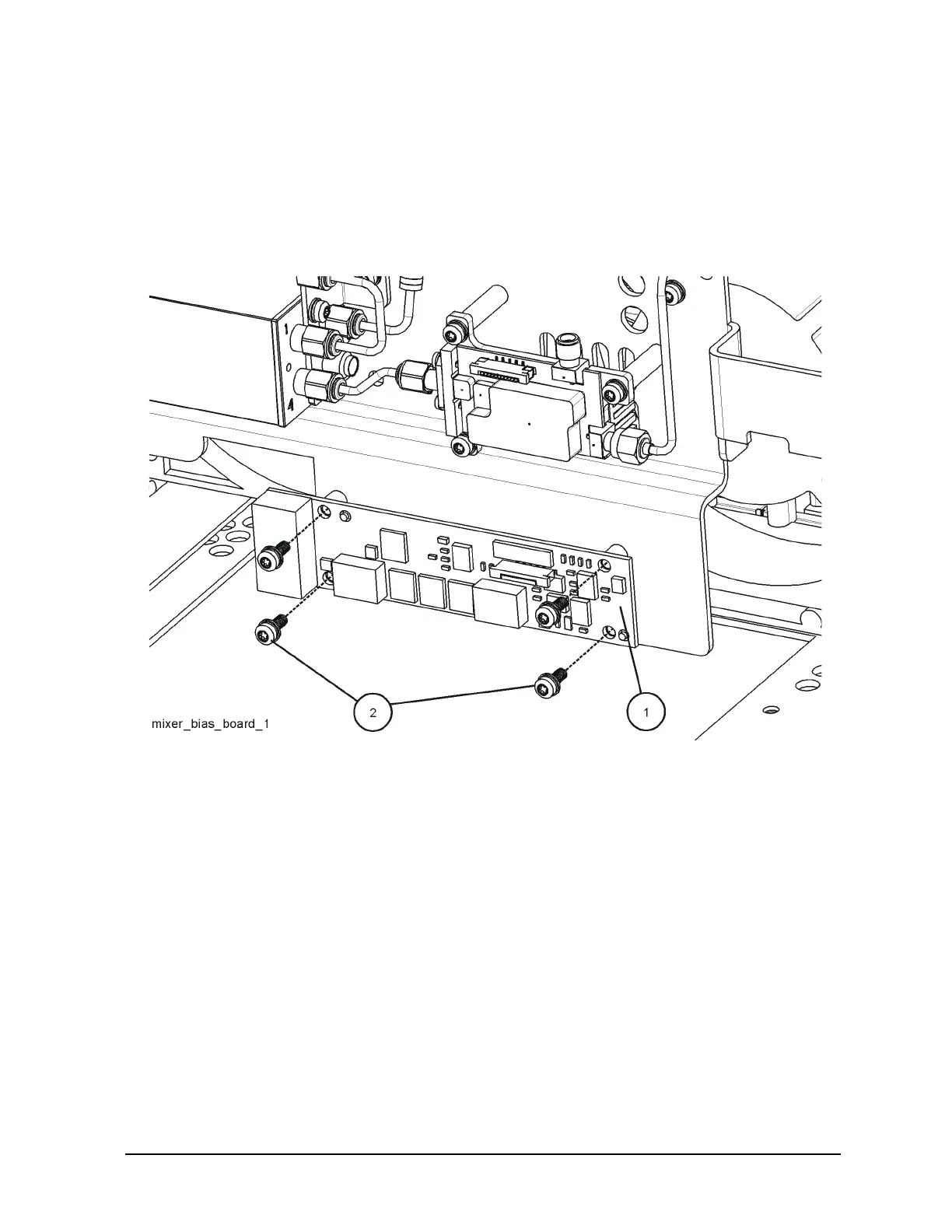

Figure 30 Mixer Bias Board Installation
