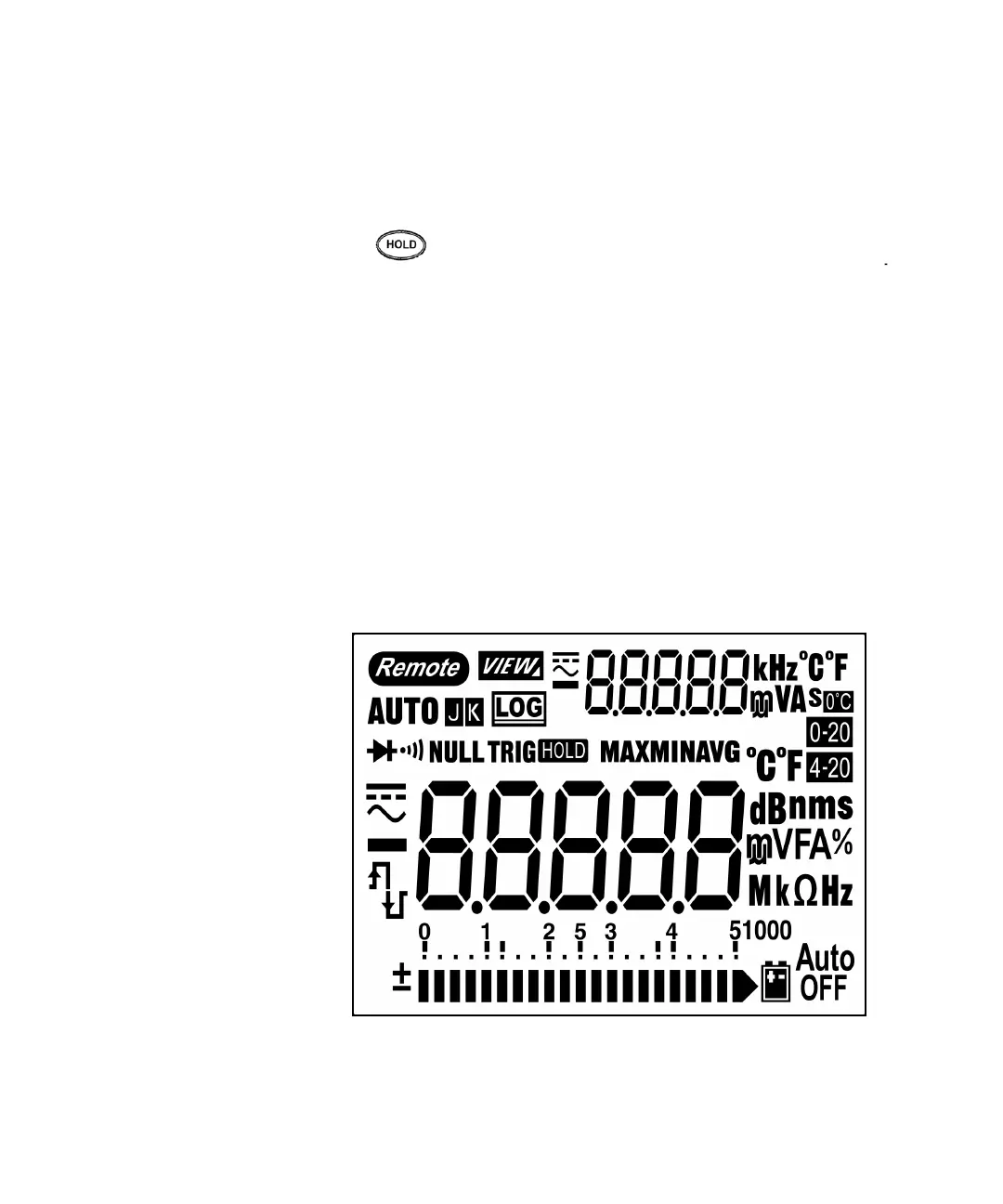

The Display at a Glance
To view the full display (with all segments illuminated), push
button and hold while turning the rotary switch from
OFF to any non- OFF position. After you are done viewing
the full display, push any button to resume normal function-
ality based on the rotary switch position. This is followed by
a wake- up feature.
The meter will then enter power save mode once auto power
off (APF) is enable. To wake the meter up:
1 Turn the rotary switch (knob) to OFF position, and then
turn it back on again.
2 Press any button for rotary switch position that is not at
square wave output position. This only available for
U1252A.
3 For U1252A only, rotary switch at square wave out
position, press only DUAL, RANGE and HOLD buttons or
turn the rotary switch to other position.
The LCD signs are described on page 22, 23 and 24.
