Agilent Technologies U1251A - Measuring DC Voltage

38 Agilent U1251A/U1252A User’s and Service Guide
2 Making Measurements

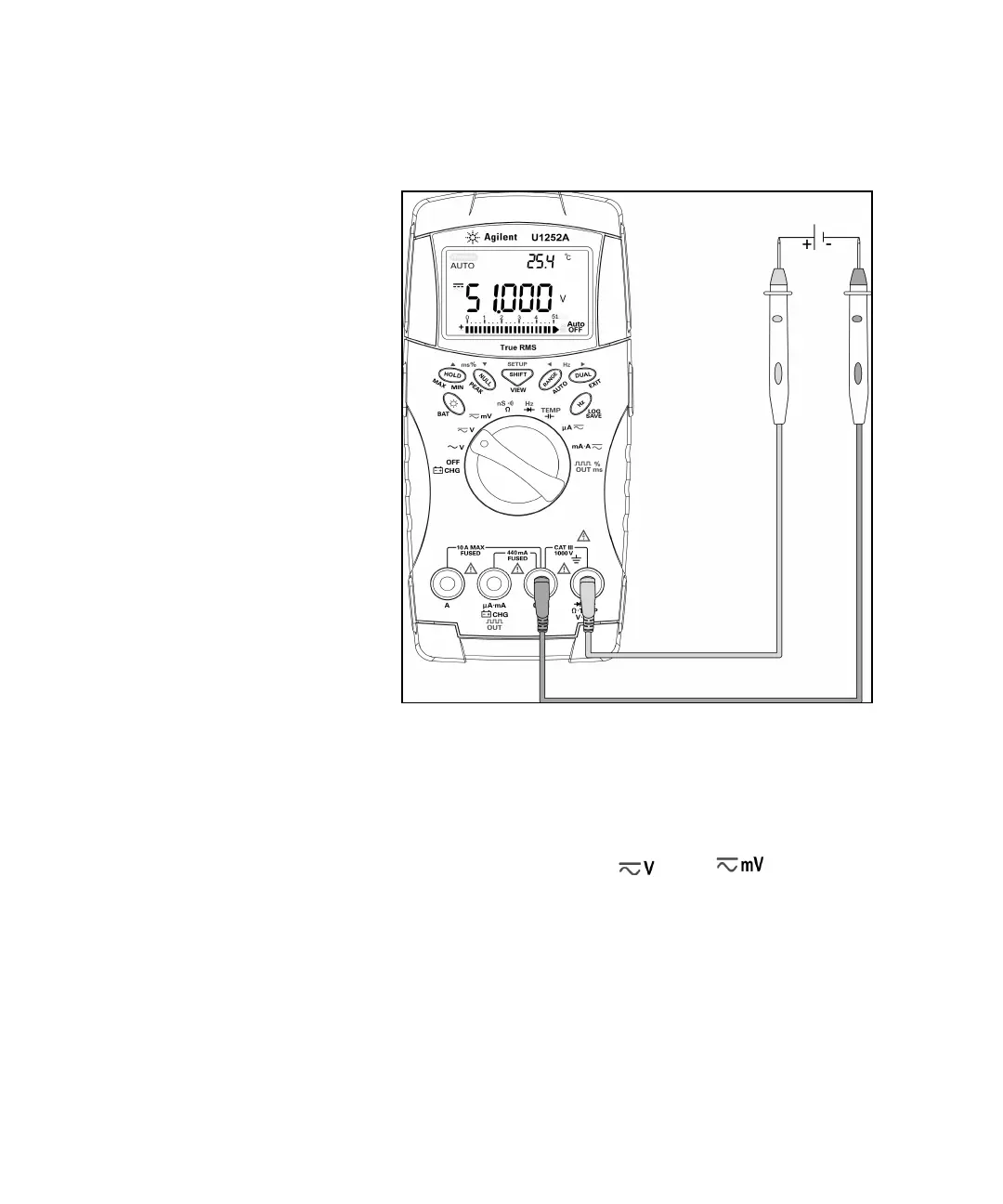

Figure 4 Measuring DC voltage
Measuring DC voltage
1 Set the rotary switch to and .
2 Connect the red and black test leads to input terminals
V.m V and COM respectively.
3 Probe the test points and read the display.
MAX
