70 Agilent U1251A/U1252A User’s and Service Guide
3Features and Functions

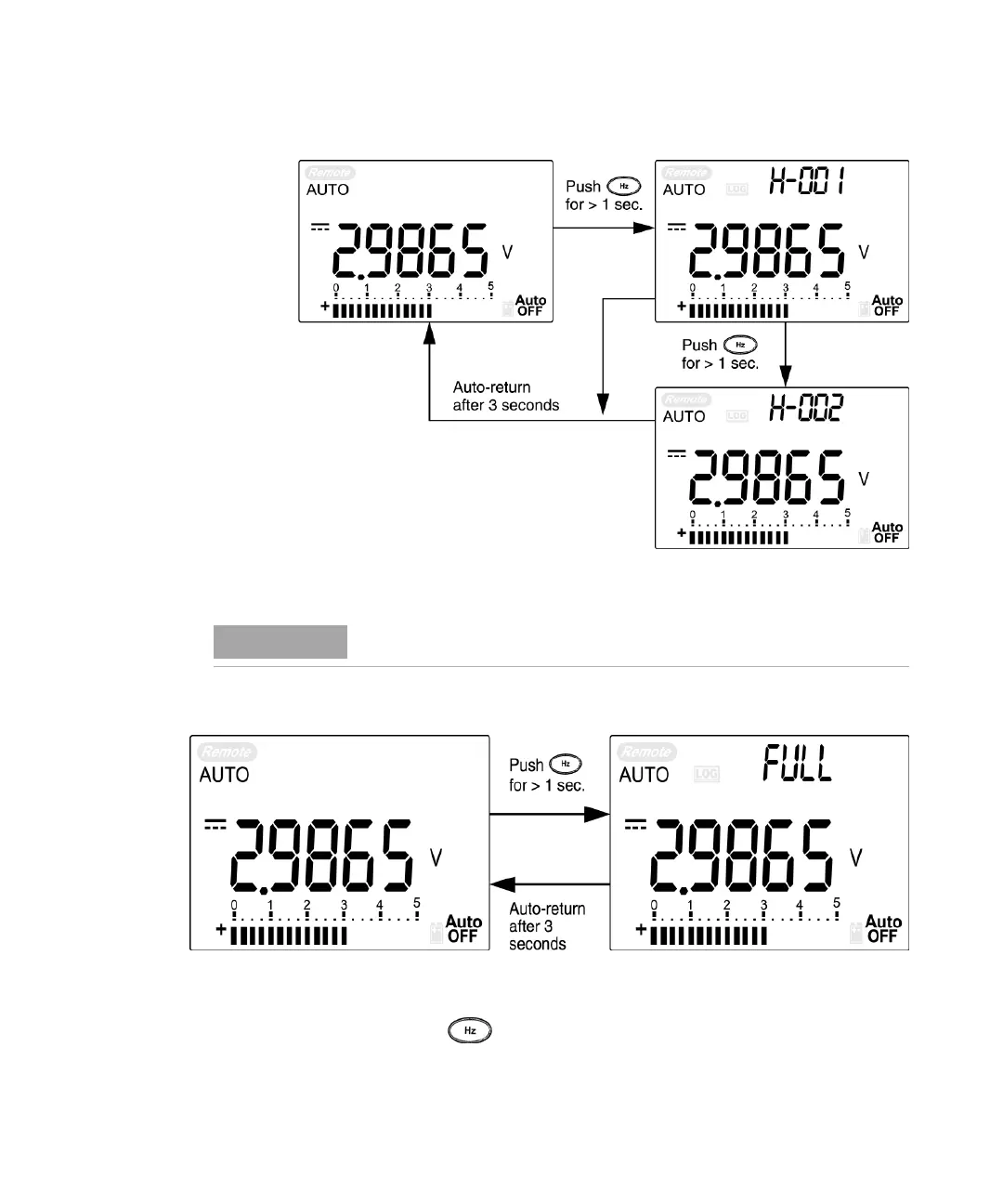

Figure 23 Hand (Manual) logging mode operation
Figure 24 Full Log
3 Push for more than 1 second to exit this mode.
NOTE
Maximum data that can be stored is 100 entries. When the 100 entries are
filled, “FULL” is indicated on the secondary display, as shown in Figure 24.
