76 Agilent U1251A/U1252A User’s and Service Guide
3Features and Functions

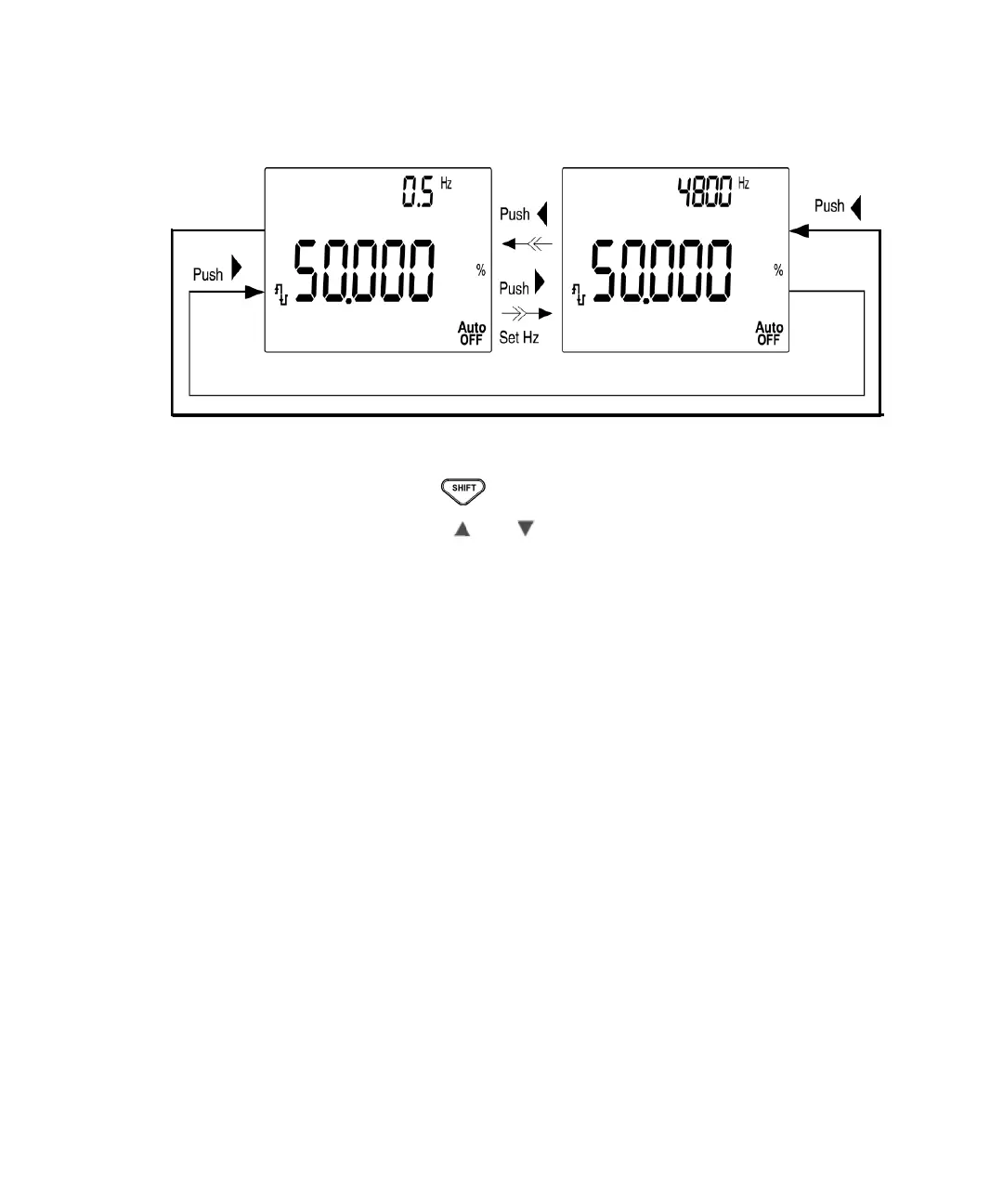

Figure 27 Frequency adjustment for square wave output
5 Push to select pulse width (%) on primary display.
6 Push or to adjust the pulse width. The pulse
width can be set for 256 steps and each step is 1/ (256 x
Frequency). The display range auto- adjusts in the range of
9.9999~9999.9 ms.
Push
