Agria 3100 - Specifications

14 Single-wheel power hoe 3100 Edition 03.95
2. Specifications

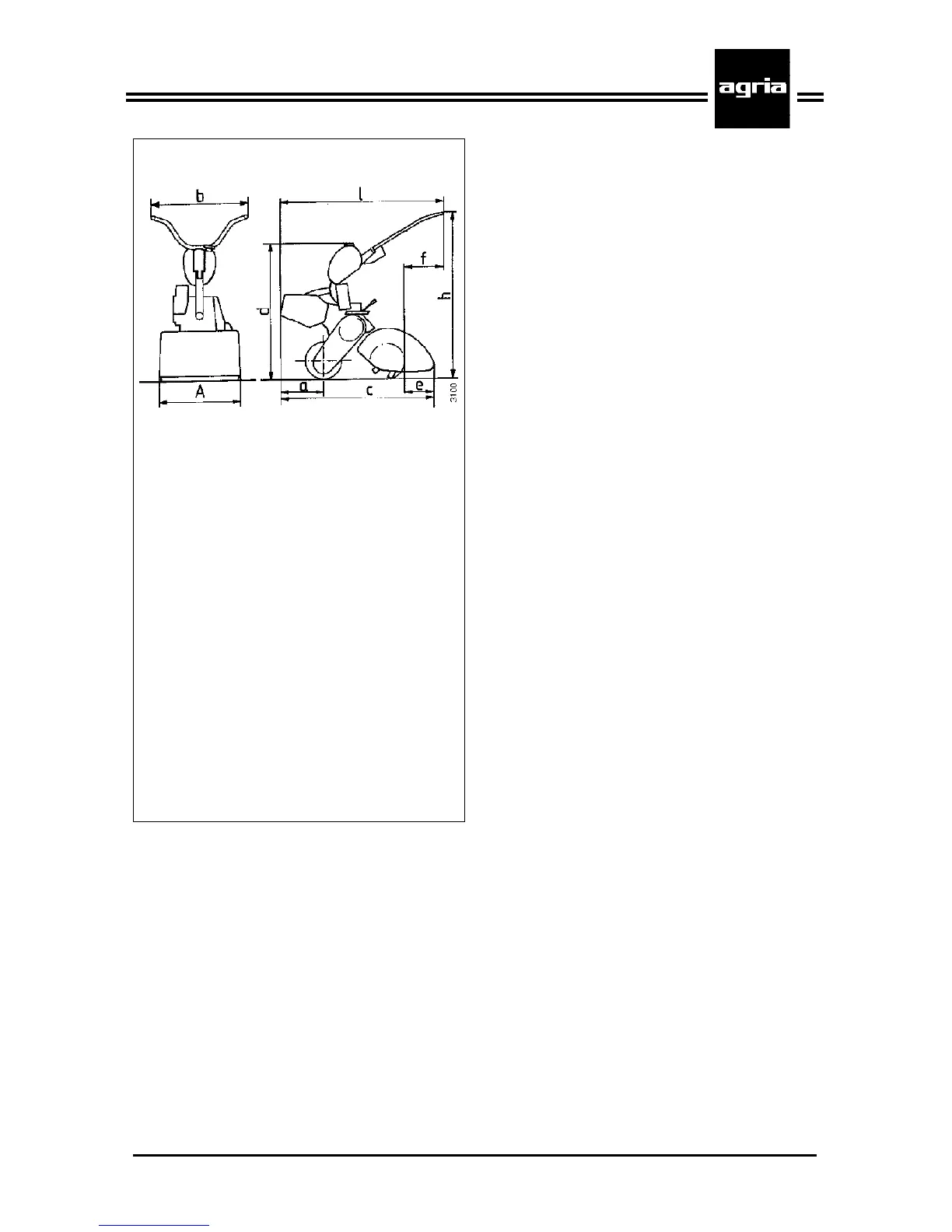

Machine Dimensions:
a ......................................... 310 mm
b ......................................... 620 mm
c........................................ 1000 mm
d ......................................... 890 mm
h ............................ ca.700–900 mm
l ......................................... 1330 mm
A ................................. 100–500 mm
(depending on tilling attachment)
Safety requirements in accordance
with CEN/GS are met:
e ...................................... > 150 mm
f .............. > 500 mm at h = 800 mm
Type: ........................................... 3100
Tyre: .........................3.00-4 (field tyre)
Tyre air pressure: ................... 0.8 bar
Clutch: .................... Multi-plate clutch,
running in oil bath
Weight:.......................... approx. 47 kg
Gearbox: .............2-speed mechanical
gearbox with 1 roller chain to wheel
and tilling shaft respectively.
Oil filling quantity:......... approx. 0.6 l
Transmission oil BP TFJD - GL4
Lubricant filling quantity:
Travelling drive
chain housing ............... approx. 150 g
Tilling drive
chain housing ................ approx. 150 g
Transmission flow grease
(e.g. BP Energrease LS-EP00)
Travelling Speeds:
1st gear .................................. 2.7 km/h
2nd gear ................................ 4.8 km/h
Tilling shaft speed:
1st gear ................................... 196 rpm
2nd gear ................................. 350 rpm
Tilling work width: ..............10–50 cm
depending on tilling attachment
version = accessory
Accessories:
– Tilling attachment 10–50 cm
– Ridging attachment 2152 011
– Front weight 3128 011
– Leaf deflector 2130 031
Noise levels:
In accordance with German 3rd Ordi-
nance on machine-safety law:
Noise level
at operator’s ear ...................... 90 dBA
Sound level ......................... 101.5 dBA
(in accordance with regulations of Ger-
man Agricultural Association)
