Edition 03.95 Single-wheel power hoe 3100 7
Instructions for Unpacking and Assembly
Instructions for
Unpacking and Assembly

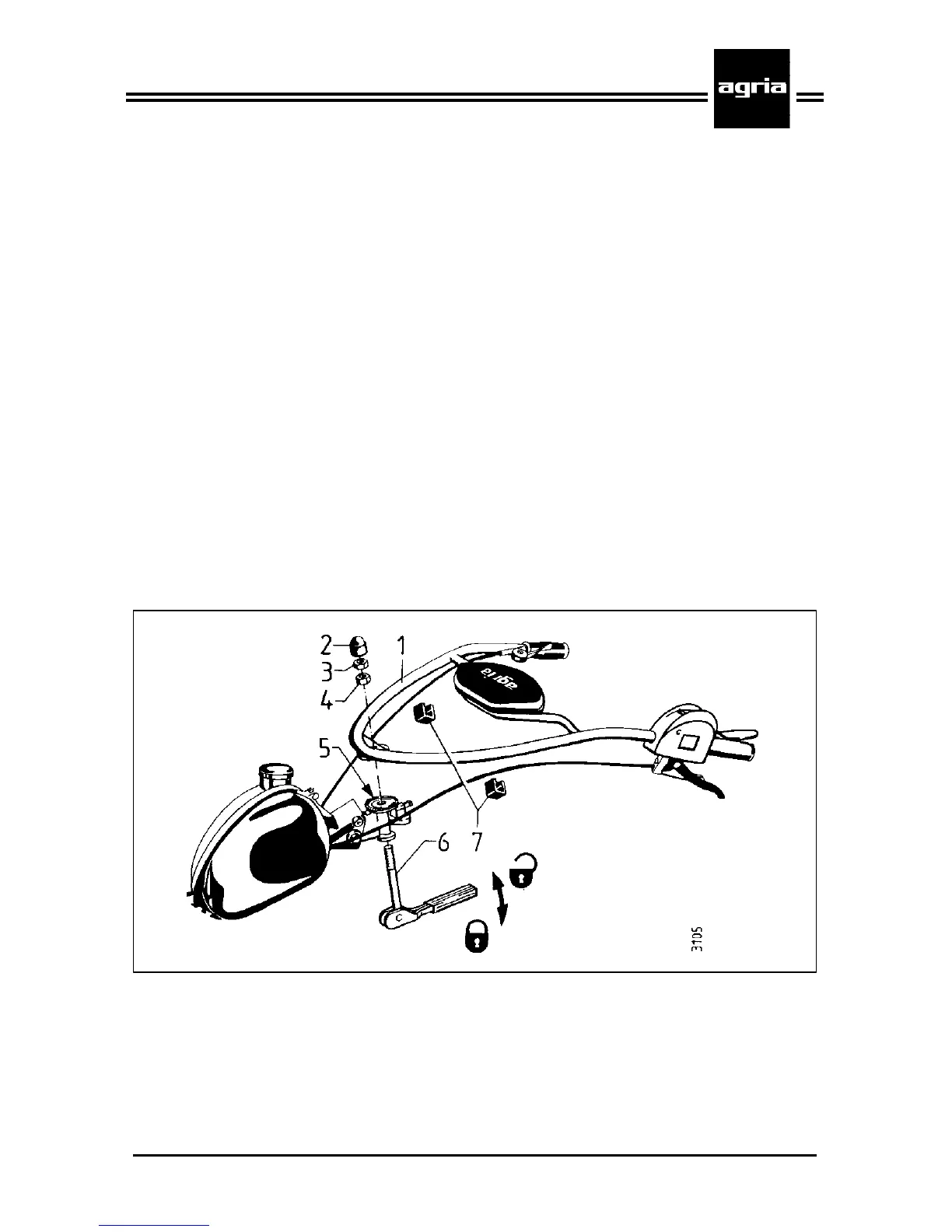

l Open top of cardboard box.
l Unscrew hexagonal screws (3 + 4).
l Place handlebar (1) onto locking disk
and hold – make sure that bowden ca-
bles and electric cables are not twisted
or squeezed.
l Insert threaded bolt (6) of tensioning
lever into steering bar joint and handle-
bar. Push threaded bolt in from below.
l Move tensioning lever to the left and
screw hexagonal nut (4) onto threaded
bolt until hexagonal nut fits into triangu-
lar relief on handlebar.
l Move tensioning lever backwards to
centre position and press down (ten-
sion). Now the handlebar must be firmly
jammed with steering bar. If this is not
the case, screw hexagonal nut (4) fur-
ther down (for adjusting tensioning le-
ver, refer to page 33).
l If handlebar jamming is not sufficient,
screw hexagonal nut (3) onto bolt and
lock with hexagonal nut (4).
l Place nut cap (2).
l Fasten bowden cables and electrical
lines with clamps (7) onto handlebar
rods.
l For disassembly of handlebar, pro-
ceed in reverse order.
