Edition 03.95 Single-wheel power hoe 3100 23
3. Devices and Operating Elements
Leaf Deflector
(Item no. 2130 031
for 16–38 cm work width)
For working in row cultivations, the above
deflector can be used to deflect leaves
and plant parts.

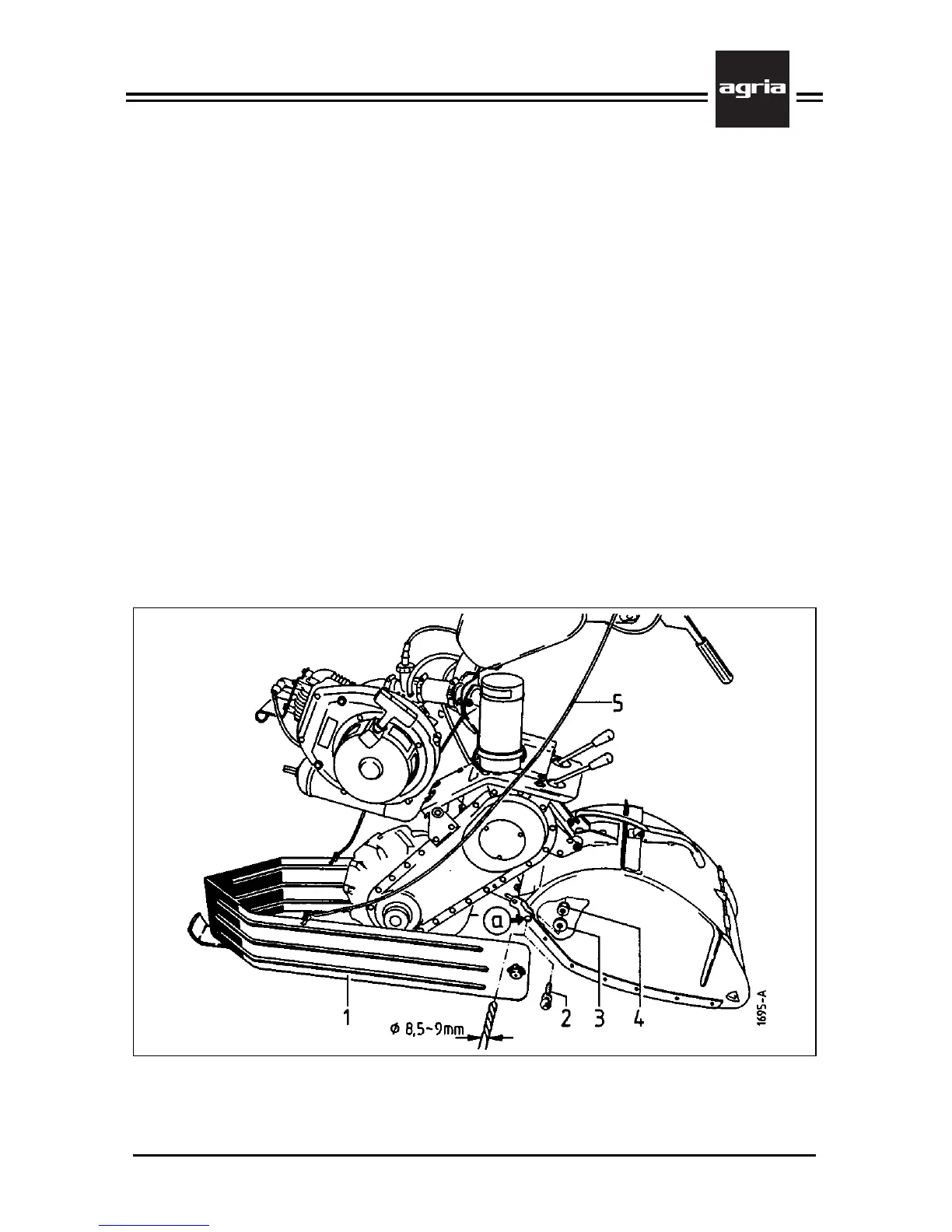

Mounting Leaf Deflector
l Use a drill of Ø 8.5–9 mm and the in-
cluded template to drill the holes “a” into
tilling hood.
l Push ball pivots (2) into holes (push
outside in) and fasten with washers (3)
and counternuts (4).
l Press ball cups of leaf deflector (1),
located on both sides at the rear, onto
ball pivots until these lock into place.
l Tie both ends of included synthetic
rope (5) onto leaf deflector and place bow
over the machine and steering handle
near the handlebar grips.
Dismounting Leaf Deflector
l To dismount leaf deflector, use a
screwdriver (or similar tool) and press ball
cups off the ball pivots.
l The ball pivots can remain in place
for re-mounting the leaf deflector.
Operation
For easy turns, slightly lift the leaf de-
flector with the rope (5).
