Agria 3100 - Hand Lever and Safety Circuit Adjustments

32 Single-wheel power hoe 3100 Edition 03.95
5. Maintenance
Stop position
Adjustments on
Hand Levers
Check clutch play or clutch adjustment
each time you operate the machine. If
necessary, re-adjust (especially after
commissioning the machine during
break-in period, and after exchanging
clutch linings and brake pads).

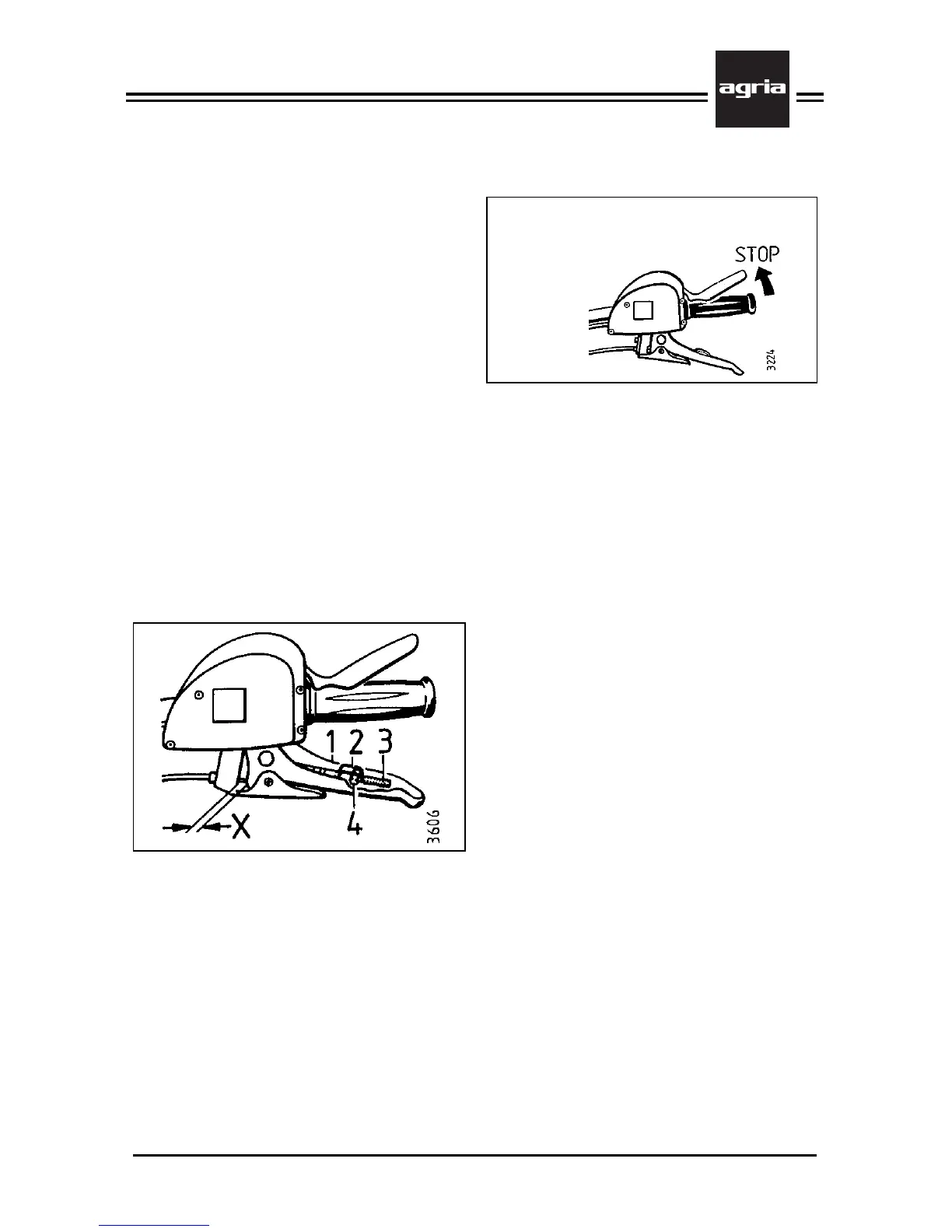

l Remove retaining spring (2) with screw
driver or similar tool.
l Use set pin (4) to press cable end (3)
out of bracket in hand lever.
l Adjust the set pin (4) to a play of X.
Screw set pin in to reduce play, screw
out to increase play.
l Use set pin to place cable end back
into bracket and check.
l Fit retaining spring (2).
Hand clutch lever:
x = 3–5 mm (clutch play)
Safety Circuit
Check safety circuit for proper function
each time you maintain the machine.
l With clutch engaged and upon release
of safety lever (C/4) the engine must
automatically come to a stop.
l Check electric lines and connections
for proper condition and exchange, if nec-
essary.
For this purpose, contact your AGRIA
workshop.
