Edition 03.95 Single-wheel power hoe 3100 33
5. Maintenance

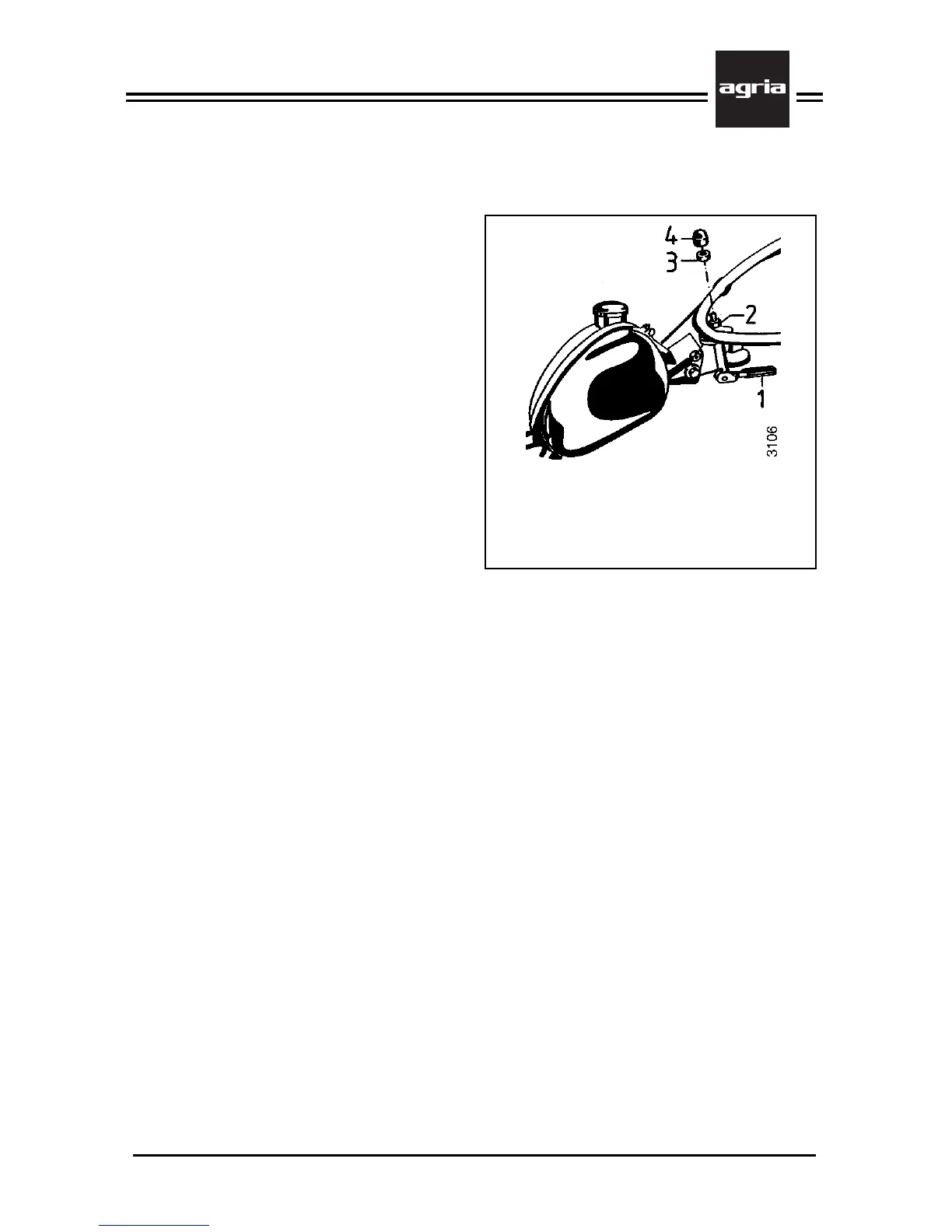

1 Tensioning lever
2 Hexagonal nut
3 Conternut
4 Nut cap
Tensioning Lever for
Handlebar Side
Adjustment
If the tensioning lever (1) for handlebar
side adjustment is pressed down, but the
handlebar is still not jammed sufficiently,
readjustment is necessary.
Adjustment
l Remove nut cap (4).
l Loosen top hexagonal nut [(3)
conternut] about 2 turns.
l Open tensioning lever (1) = swivel
upwards while pressing the handlebar
onto the locking disk.
l Twist tensioning lever to the left until
bottom hexagonal nut (2) is released from
triangular relief.
l Clockwise screw in hexagonal nut (2)
1/6 to 5/6 turns, as required.
l Fit hexagonal nut (2) back into trian-
gular relief, move tensioning lever back
to centre position and tension.
l Check jamming. If it is still not satis-
factory, repeat adjustment.
l Tighten top hexagonal nut (3) – lock
and put on nut cap (4).
