Agria 3100 - Steering Handle

Edition 03.95 Single-wheel power hoe 3100 19
3. Devices and Operating Elements
Steering Handle

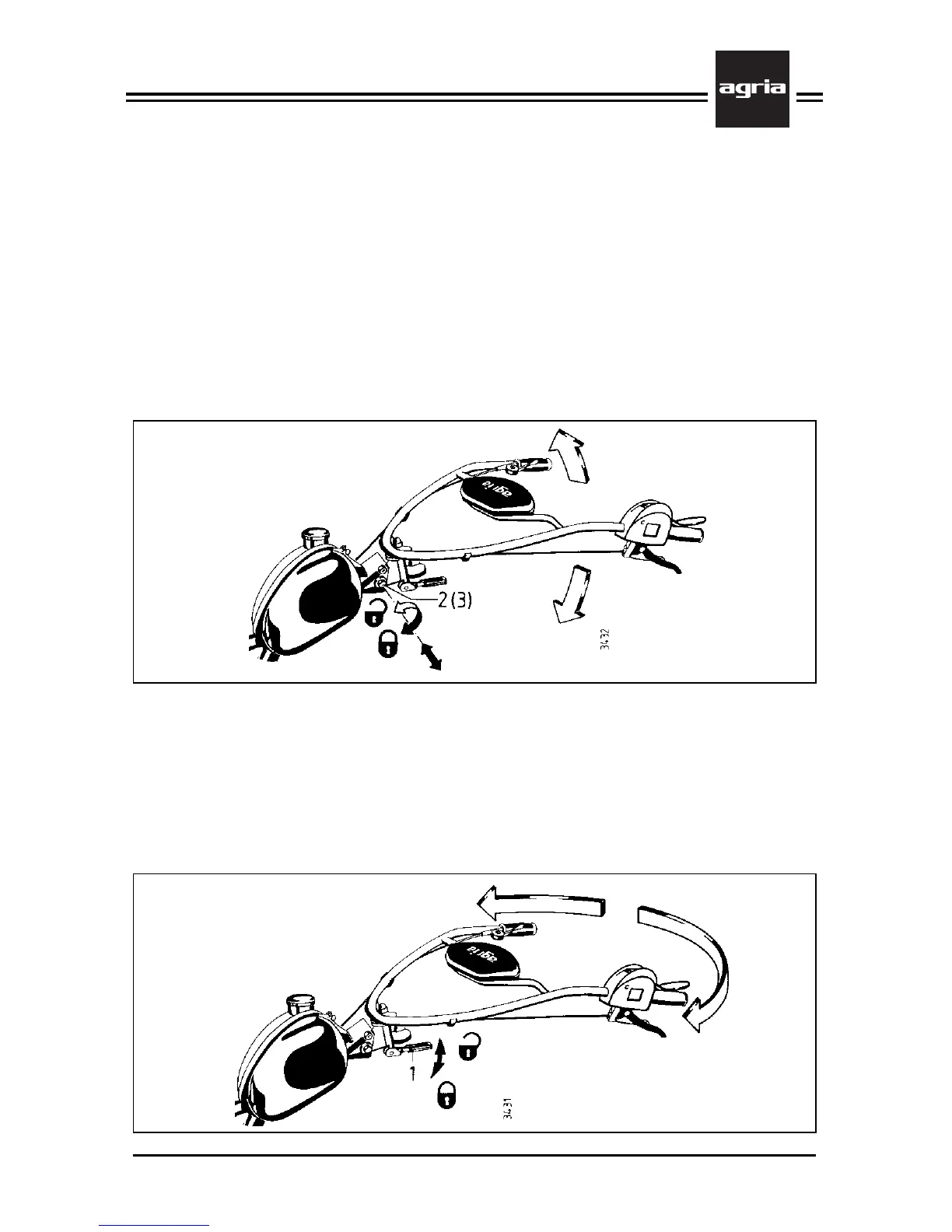

Steering handle
height adjustment
l Unscrew hexagonal screw (2) from
square clamping piece (3) and remove
from steering bar joint.
l Adjust handlebar to desired height and
insert into proper boring in steering bar
joint.
l Press tensioning lever back down
(tension).
l Insert hexagonal screw and screw into
square clamping piece and tighten. (En-
sure that snug of clamping piece locks
into long hole of location in steering bar
joint).
Steering handle
side adjustment
l Pull tensioning lever upwards (1),
swivel handlebar to desired position and
fit into proper toothing.
