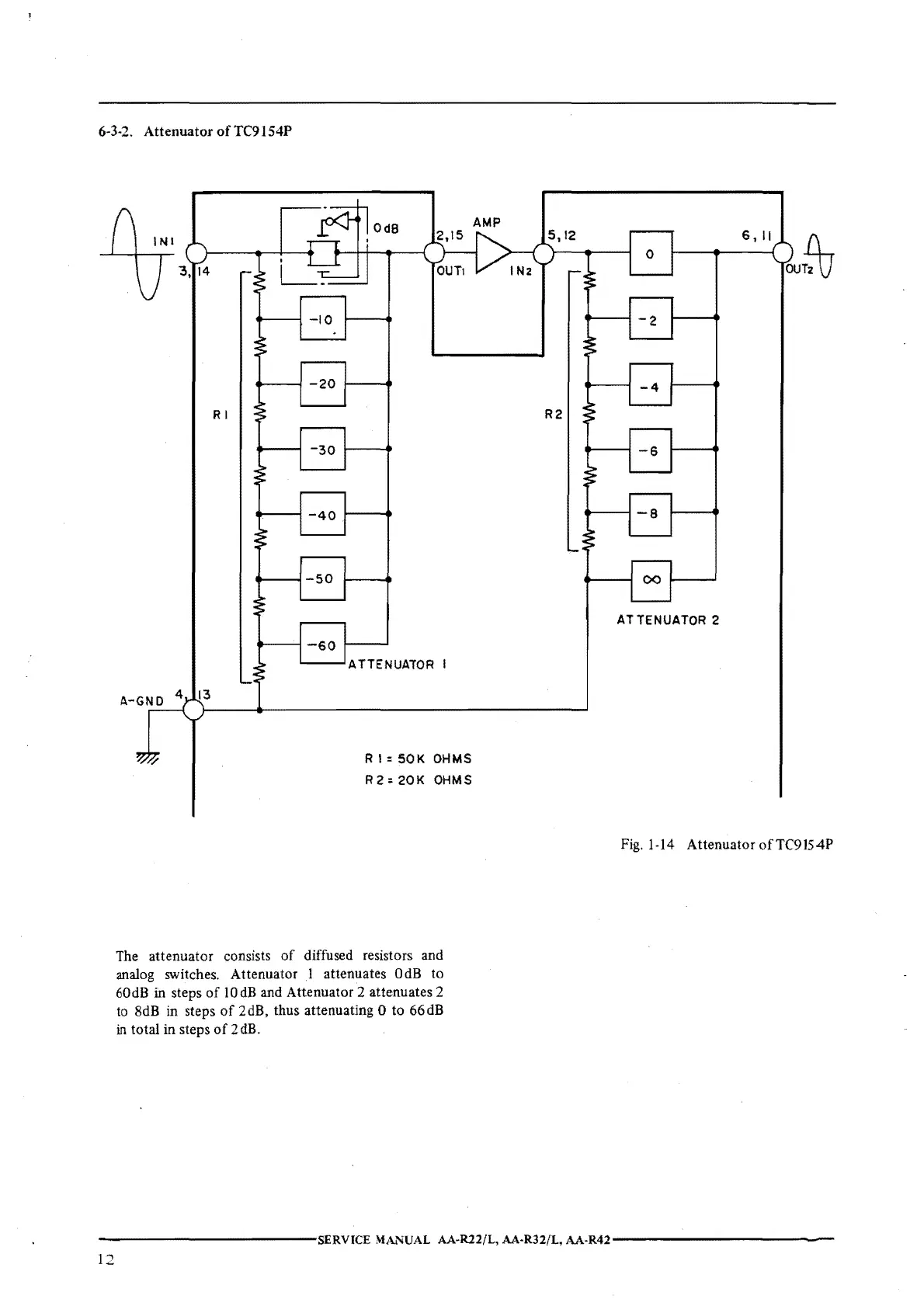

6-3-2.
Attenuator
of
TC9 l
54P
RI
RI=
50K
OHMS
R2=20K
OHMS
The
attenuator
consists
of
diffused resistors and
analog switches. Attenuator
.1
attenuates OdB to
60dB
in steps
of
IO
dB
and Attenuator 2 attenuates 2
to
8dB in steps
of
2dB, thus attenuating O
to
66dB
in
total in steps
of
2dB.
0
____
s_,_1"""'1
IL
OUTz
V
ATTENUATOR 2
Fig. 1-14
Attenuator
ofTC9154P
------------SERVICE
MAt'-iUAL
AA·R22/L, AA·R32/L,
AA-R42-------------
l 2
