Battery pack

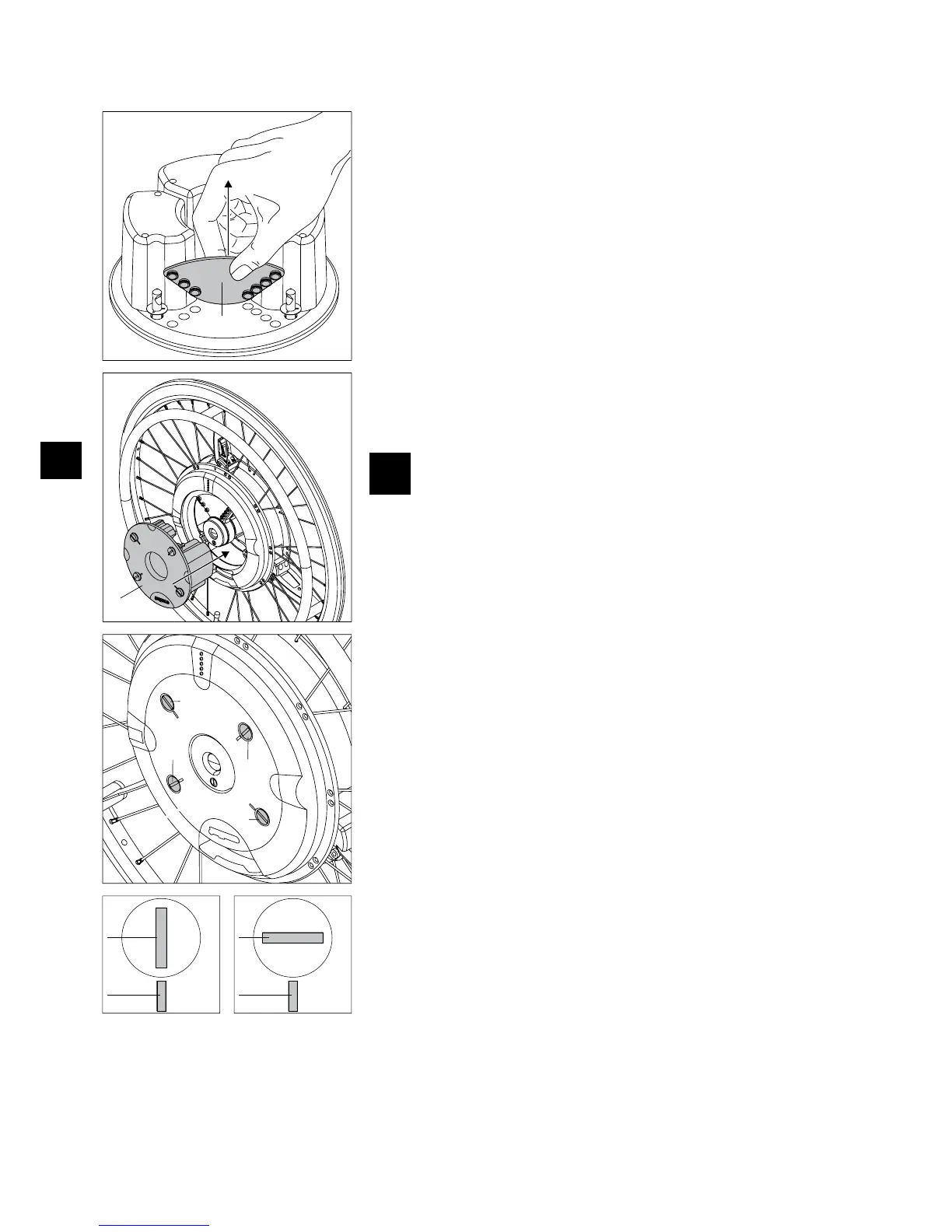

Pull the protective cover [13] from the bottom of the battery pack. Keep the protec-
•
tive cover [13] for further transports.
Take the battery pack [12] and push it into the wheel hub.
•
Push the four locking pins [11] one after the other slightly to the inside and rotate •
them by 90 degrees.
The battery pack [12] has only been correctly inserted into the wheel hub if it does
•
not protrude beyond it at any point.
The cover [12] is only correctly secured in the wheel hub if its marks [33] and the
•
slots [32] of the locking pins [11] are property aligned (refer to the graphic
illustration).
The graphical illustration explains:
A= locking pin locked
B= locking pin released
Your e-motion wheel is now completely ready for the next ride.
Insert the battery pack only into the wheel hub if both are clean
and dry. Both parts must never be joined in case of dirt and mois-
ture. Observe the notes in on cleaning in Chapter 12.1.
!
