Alcad 960 Series Technical Manual

15
DOOR CONTACT
Ref. 9730004
DOOR CONTACT
CNP-001
Accessory which, when used in conjunction
with an electric lock, allows double doors to
be opened.

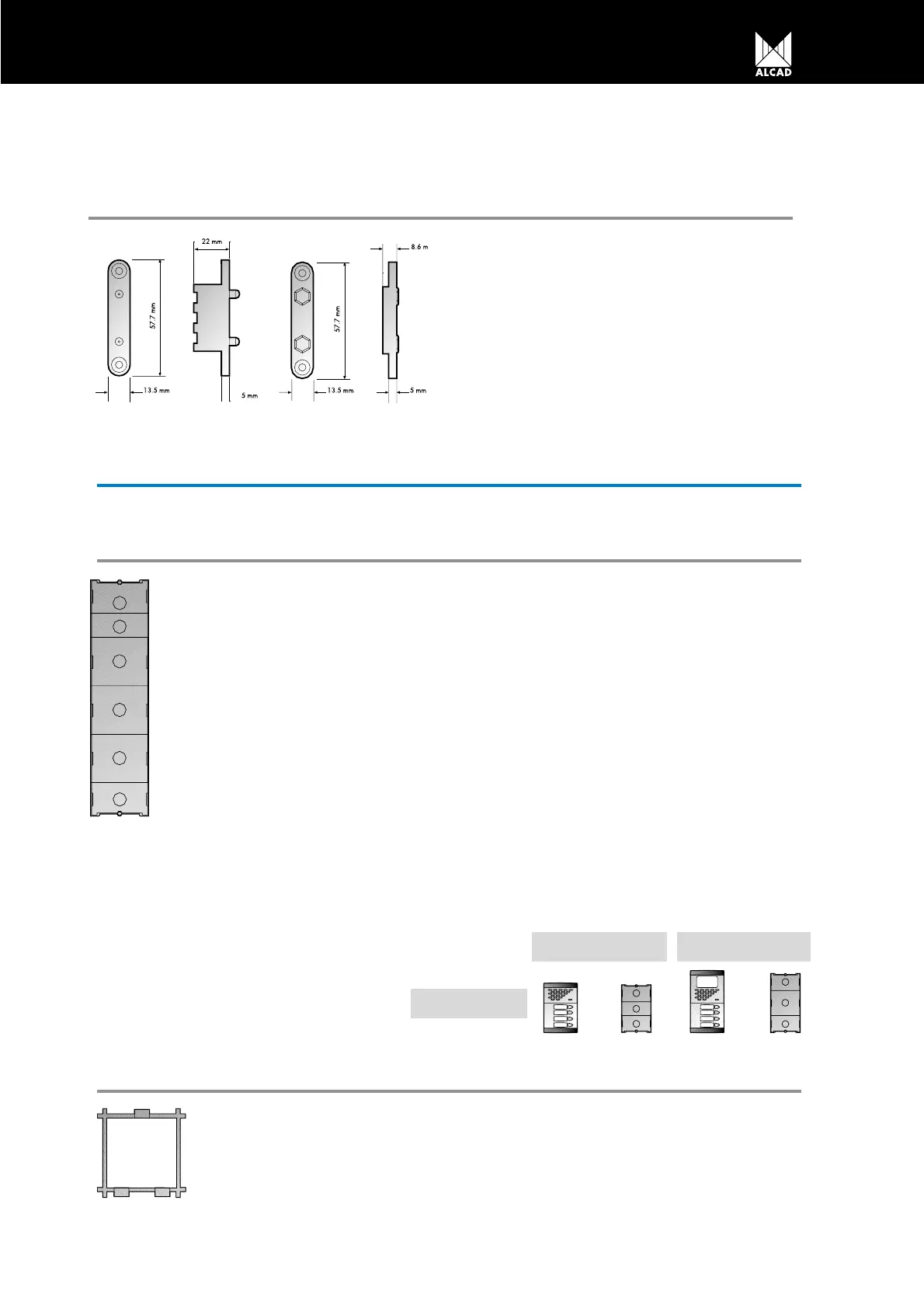

Door contact - Male Door contact - Female
PANEL ACCESSORIES
It´s necessary to use a flush-mounted box to install the entrace panel in the required place.
Ref. 9740005 CMO-002
Ready-assembled flush-mounted box
for 1 or 2 storeys entrance panel
Ref. 9740006 CMO-004
Ready-assembled flush-mounted box
for 3 or 4 storeys entrance panel
Ref. 9740007 CMO-006
Ready-assembled flush-mounted box
for 5 or 6 storeys entrance panel
Ref. 9740008 CMO-008
Ready-assembled flush-mounted box
for 7 or 8 storeys entrance panel
Ref. 9740009 CMO-010
Ready-assembled flush-mounted box
for 9 or 10 storeys entrance panel
Ref. 9740009 CMO-010
Ready-assembled flush-mounted box
for 9 or 10 storeys entrance panel
Ref. 9740010 CMO-012
Ready-assembled flush-mounted box
for 11 or 12 storeys entrance panel
Ref. 9740011 CMO-014
Ready-assembled flush-mounted box
for 13 or 14 storeys entrance panel
Ref. 9740012 CMO-016
Ready-assembled flush-mounted box
for 15 or 16 storeys entrance panel
READY-ASSEMBLED FLUSH-MOUNTED BOXES
Available for installations in buildings with 1 to 16 storeys.
All flush-mounted boxes have a depth of 45 mm.
(See dimensions for the flush-moun-
ted boxes in the “Range of entrance
panels” section, page 16)
FLUSH-MOUNTED BOX SEPARATOR
Ref. 9740004
FLUSH-MOUNTED BOX SET OF SEPARATORS
CEM-001
For combinations with more than one entrance panel, box separators will need to be fitted to the
flush-mounted boxes to ensure correct separation between the entrance panels. Separators are sup-
plied in pairs. Remember that you will need a set of separators for each additional panel.
Note: The description
show above are valid
when the entrance panel
upper module is a single
one. For entrance panels
with double upper modu-
le (Module with avoid
unit and card holder,
module with audio and
video unit, etc.). The box
to be ordered is the follo-
wing model.
4 STOREYS AND
4 DWELLINGS BUILDING
Entrance panel with single
upper module
Entrance panel with double
upper module
CMO-006MPD-004CMO-004
MPD-004
