29
FIXING THE BASE TO THE W
ALL

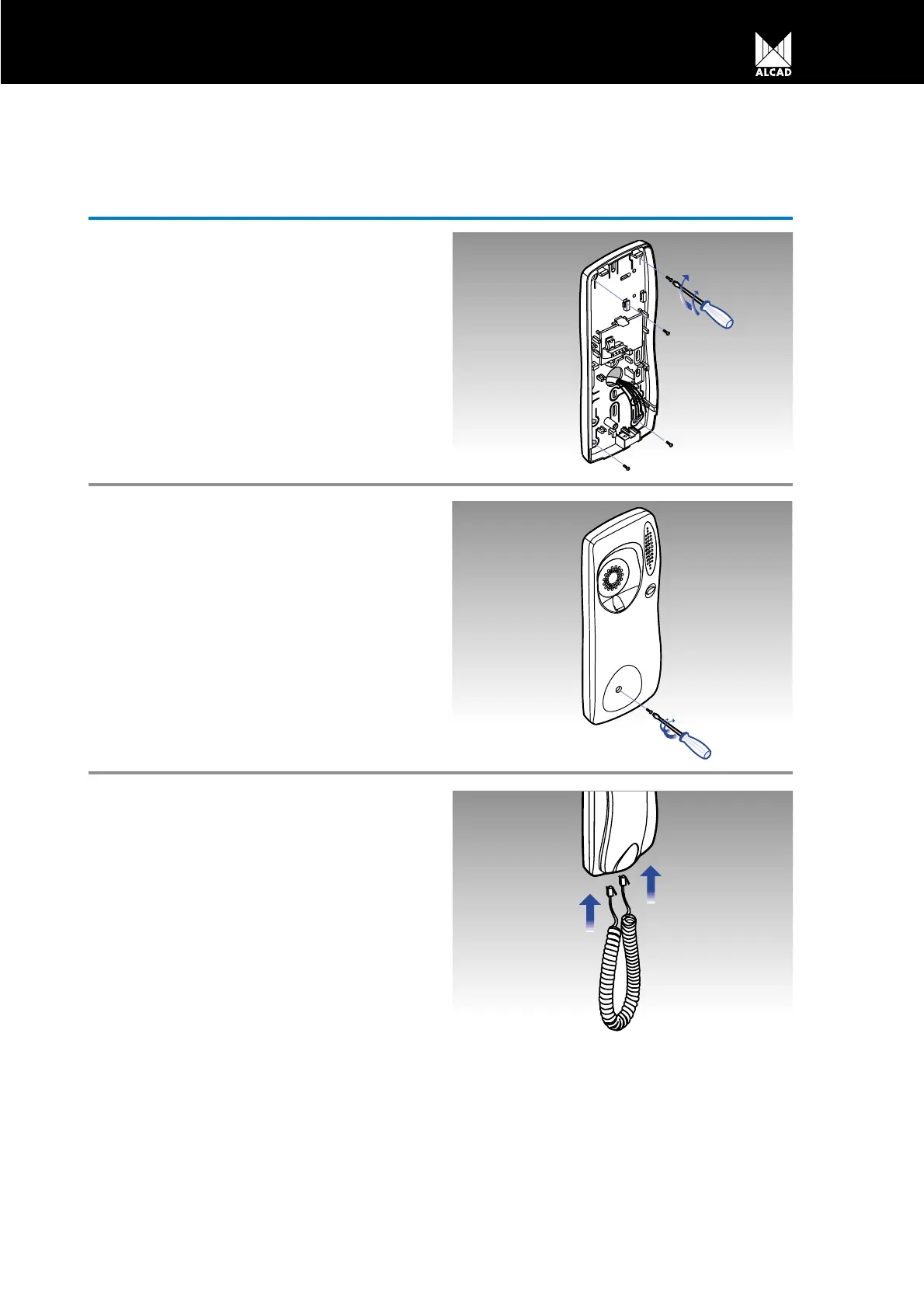

The base has several fixing points. Using the
four most suitable fixing points, fix the telephone
base to the wall with the wall plugs and lag
screws provided. W
e recommend that you fix the
unit at the four corners.
FITTING THE BASE COVER
Close the telephone and fix the cover to the
base using the fixing screw
.
FITTING THE HANDSET
Connect the cord from the telephone base to the
handset.
28
30
Table of Contents
Default Chapter
2
Table of Contents
2
Description
4
Door Entry System
4
Components
5
Technical Data
6
Standards
6
Telephones
6
Audio Units
8
Power Supplies
10
Blank Entrance Panel Module
11
Entrance Panel Module with Card Holder
11
Entrance Panel Modules with Audio Unit
11
Entrance Panels
11
Entrance Panel Modules with Double Row Push Buttons
12
Entrance Panel Modules with Single Row Push Buttons
12
Kits
13
Accessories
14
Electrick Locks
14
Door Contact
15
Flush-Mounted Box Separator
15
Range of Entrance Panels
16
Panel Accessories
15
Ready Assembled Flush-Mounted Boxes
15
Entrance Panels
16
Kit Entrance Panels
20
Dimensions of Entrance Panels
22
Assembly
24
Assembling Several Boxes
24
Flush-Mounted Box
24
Height of Placement
24
Removing the Punched Knockouts
24
Assembling Entrance Panels
25
Complete Disassembly of Entrance Panels
25
Entrance Panel
25
Audio Unit
27
Fitting Push Buttons
27
Fitting the Audio Unit
27
Push Buttons
27
Removing Push Buttons
27
Removing the Audio Unit
27
Placing Identifying Labels
28
Removing the Base Cover
28
Telephone
28
Fitting the Base Cover
29
Fitting the Handset
29
Fixing the Base to the Wall
29
Fitting to a DIN Rail
30
Fixing the Terminal Cover
30
Power Supply
30
Removing from DIN Rail
30
Wall Mounting
30
Connection and Set-Up Instructions
31
Audio Unit
31
Audio Unit Set-Up
31
Electronic Audio Unit GRF-001
31
Terminal Connections
31
Audio Unit Set-Up
32
Mixed Audio Unit GRF-005
32
Terminal Connections
32
Audio Unit Set-Up
33
Terminal Connections
33
Telephone
34
Telephone Set-Up
34
Terminal Connections
34
Universal Telephone TUN-001
34
Power Supply
35
Terminal Connections
35
Circuit Diagrams
37
General Points Concerning Tthe Installation
37
4+N System Circuit Diagrams
38
Basic Installation with Electronic Call
38
Basic Installation with Buzzer Call
40
Expansion of the Installation with Additional Telephones
42
Opening the Door from Inside the Building
43
Basic Installation with Electronic Call
44
Microprocessor-Based 4+N System Circuit Diagrams
44
Basic Installation with Electronic Call and Privacy of Conversation
46
Two Entrance Installation with Electronic Call
48
Three Entrance Installation with Electronic Call
51
Installation with Electronic Call in a Complex with Several Blocks
54
Two Entrance Installation with Electronic Call and Privacy of Conversation
57
Three Entrance Installation with Electronic Call and Privacy of Conversation
60
Installation with Electronic Call and Privacy of Conversation in a Complex with Several Blocks
63
Expansion of the System with Additional Telephones
66
Expansion of the System with Additional Telephones in Installations with Privacy of Conversation
67
Opening the Door from Inside the Building
68
Troubleshooting
69
Basic Installations. 4+N System
69
Microprocessor-Based 4+N System
71
Installations with Privacy of Conversation: Basic Installations with Several Entrances
73
Or Complexes with Several Blocks. Microprocessor-Based 4+N System
73
