33
1234
7
16 17 18
9
10
11 12 13 14 15
12 V
~
J1
V
~
Made in Spain
GRF-003
cod. 96104
19
20
GRF-004
cod. 96105
18
Principal access common terminal
Multiple access
17
Multiple acces complex
16
12
Electronic lock
Electronic lock
11
Panel lighting
10
Panel lighting
9
Common push button terminal (electronic call)
7
Telephone loudspeaker
4
Telephone microphone
3
Telephone common terminal
2
Door lock release
1
Power supply voltage
V
Ground
1234 79
10 11 12
V~
J1
13 14 15 16 17 18

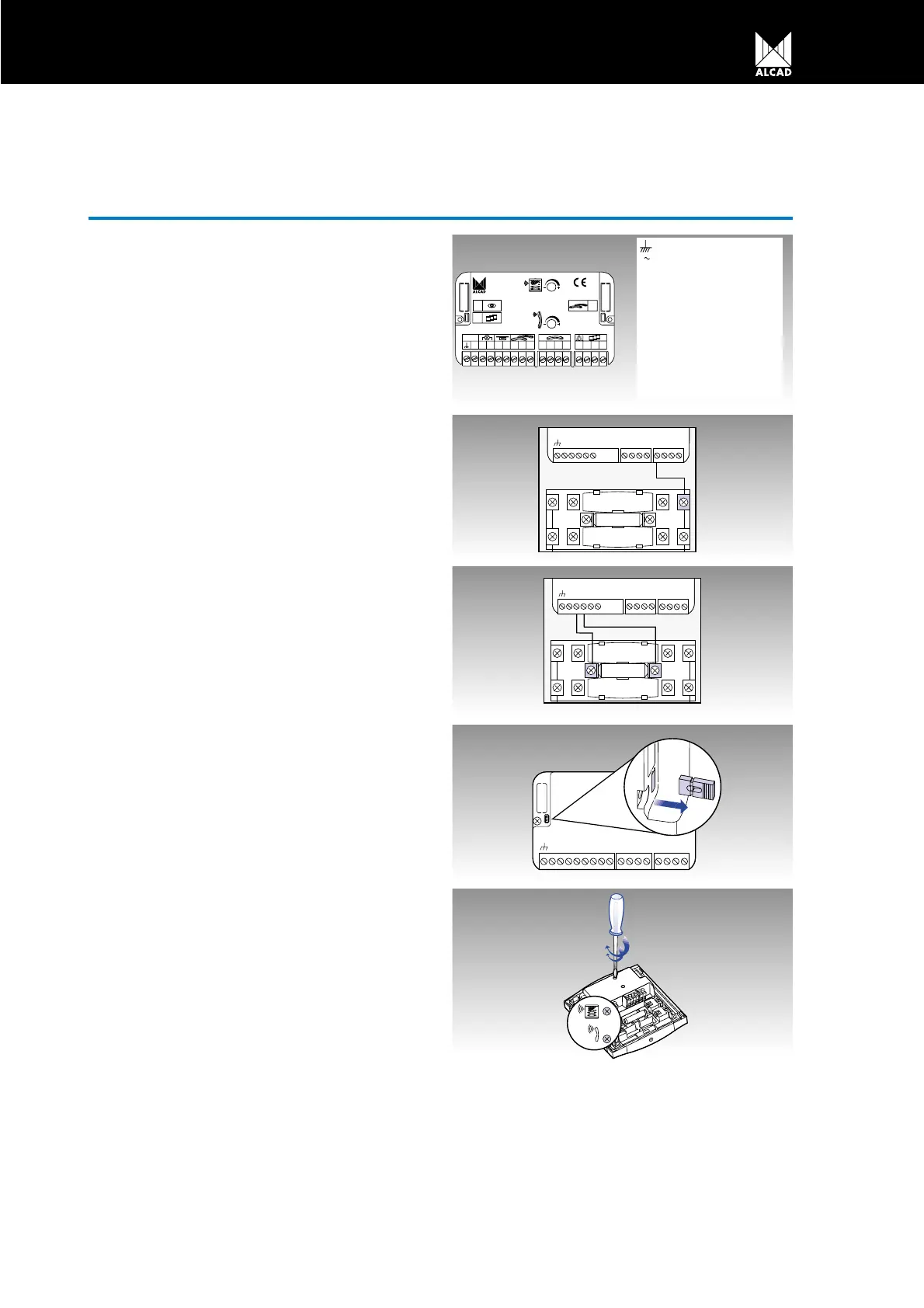

AUDIO UNIT MULTI ENTRANCE WITHOUT
PRIVACY OF CONVERSATION GRF-003
AUDIO UNIT WITH PRIVACY OF
CONVERSATION GRF-004
Terminal connections
Make the connections to the terminals as indi-
cated in the diagram.
Connect the push button common terminal 7, to
the push buttons on the entrance panel.
Connect the entrance panel lighting bulbs to ter-
minals 9 and 10.
Audio unit set-up
The entrance panel defined as being the syste-
m’s main panel must have jumper J1 in place.
Only one main panel can be defined per installa-
tion. Therefore, remove jumper J1 from the audio
units of the rest of the panels in the system.
If necessary regulate the volume level of the
entrance panel and the telephones using the vo-
lume control potentiometers on the audio unit.
