ELECTRONIC TELEPHONE TEL-001
ELECTRONIC TELEPHONE WITH PRIVACY
OF CONVERSATION TES-001

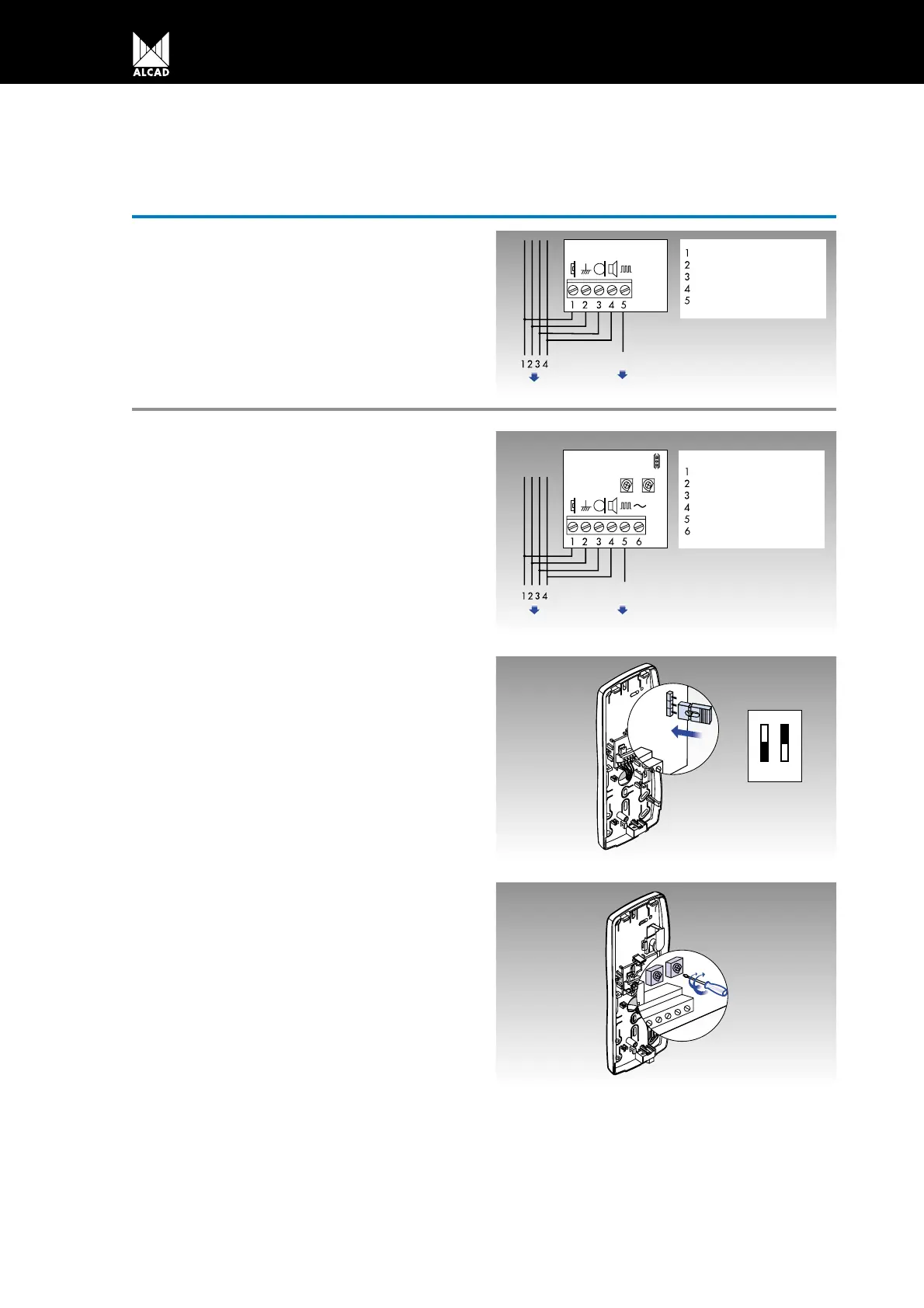

Terminal connections
Make the connections to the terminals as indi-
cated in the diagram.
TELEPHONE
Door lock release
Common
Telephone microphone
Telephone microphone
Electronic call
Call
Push button
Audio unit
J1
Door lock release
Common
Telephone microphone
Telephone microphone
Electronic call
Buzzer call
Call
Push button
Audio Unit
AB
Possible positions of
J1 jumper
UNIVERSAL TELEPHONE TUN-001
Terminal connections
Make the connections to the terminals as indi-
cated in the diagram.
Telephone set-up
Fit jumper J1 in position B if your door entry
system is of the separated common lines type.
If necessary, regulate the telephone microphone
and loud speaker volume level to avoid feedback
with the entrance panel or the telephone itself. To
regulate the volume level use the potentiometers
on the telephone base.
