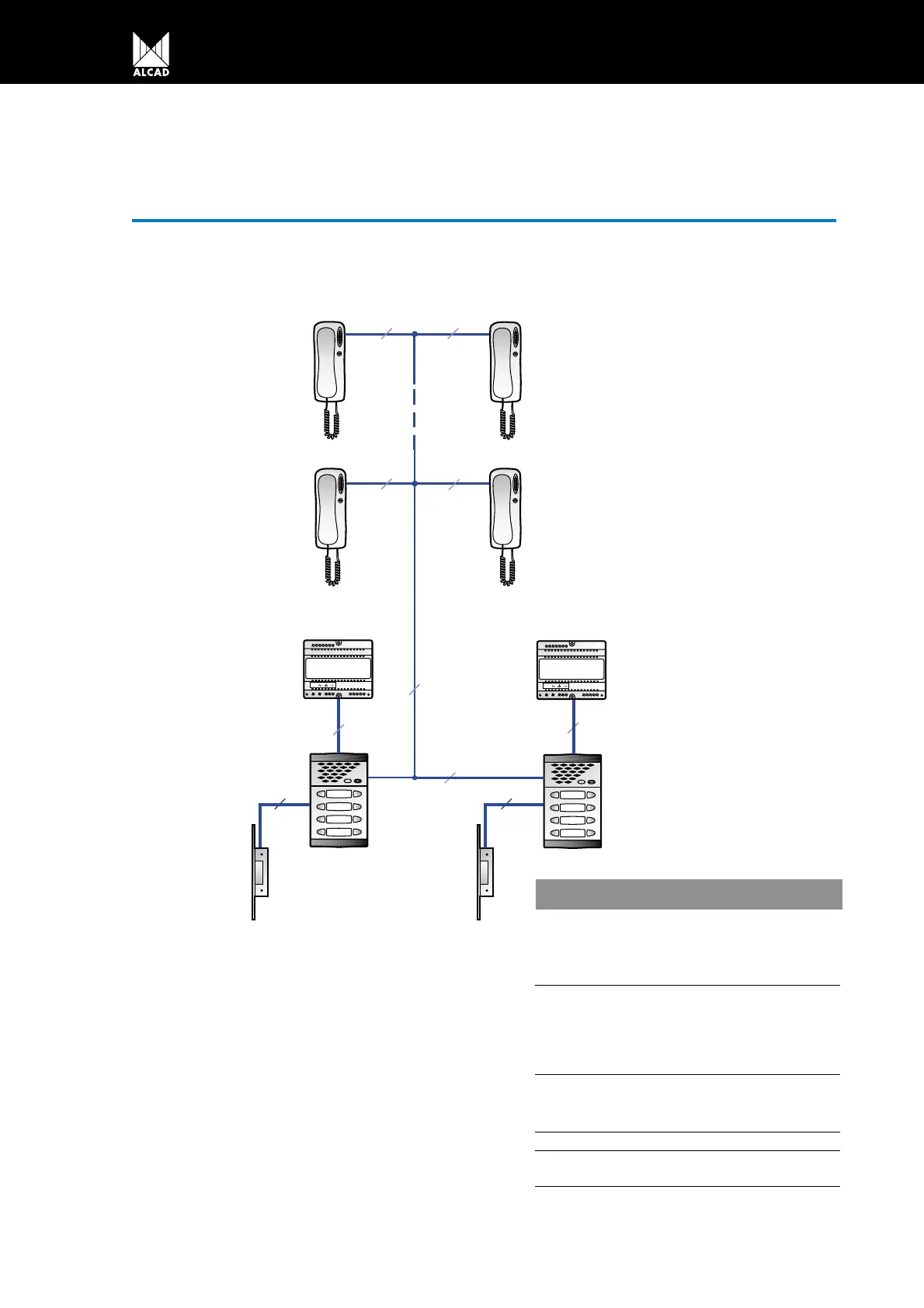

TWO ENTRANCE INSTALLATION WITH ELECTRONIC CALL
AND PRIVACY OF CONVERSATION
MICROPROCESSOR-BASED 4+N SYSTEM
V
V
6+N
230 V230 V
230 V230 V
2
2
4+N
TES-001
5
5
5
5
ABR-001
2 2
ABR-001
ALA-040 ALA-040
V
V
MAN-040
MPD-004
MAN-040
MPD-004
MATERIAL REQUIRED
MPS - /MPD Push button panel
module(depending
on characteristics of
the installation)
9670005 MAN - 040 Entrance panel
with audio unit
(with privacy
of conversation),
4+N system
9600003 TES - 001 Electronic telephones
with privacy of
conversation
9620001 ALA - 040 Power supply
9730000 ABR - 001 Electric lock (other
models available)
CMO Flush-mounted box
(depending
on characteristics
of the installation)
