7
Microphone
Door lock release
Loudspeaker
Electronic call
Ground
TERMINALS REST WORKING
Common line
Buzzer call
Max Audio 4 Vpp
Max audio 7.0 Vpp
Max Tone 7 Vpp
Description of
terminals and
voltages:

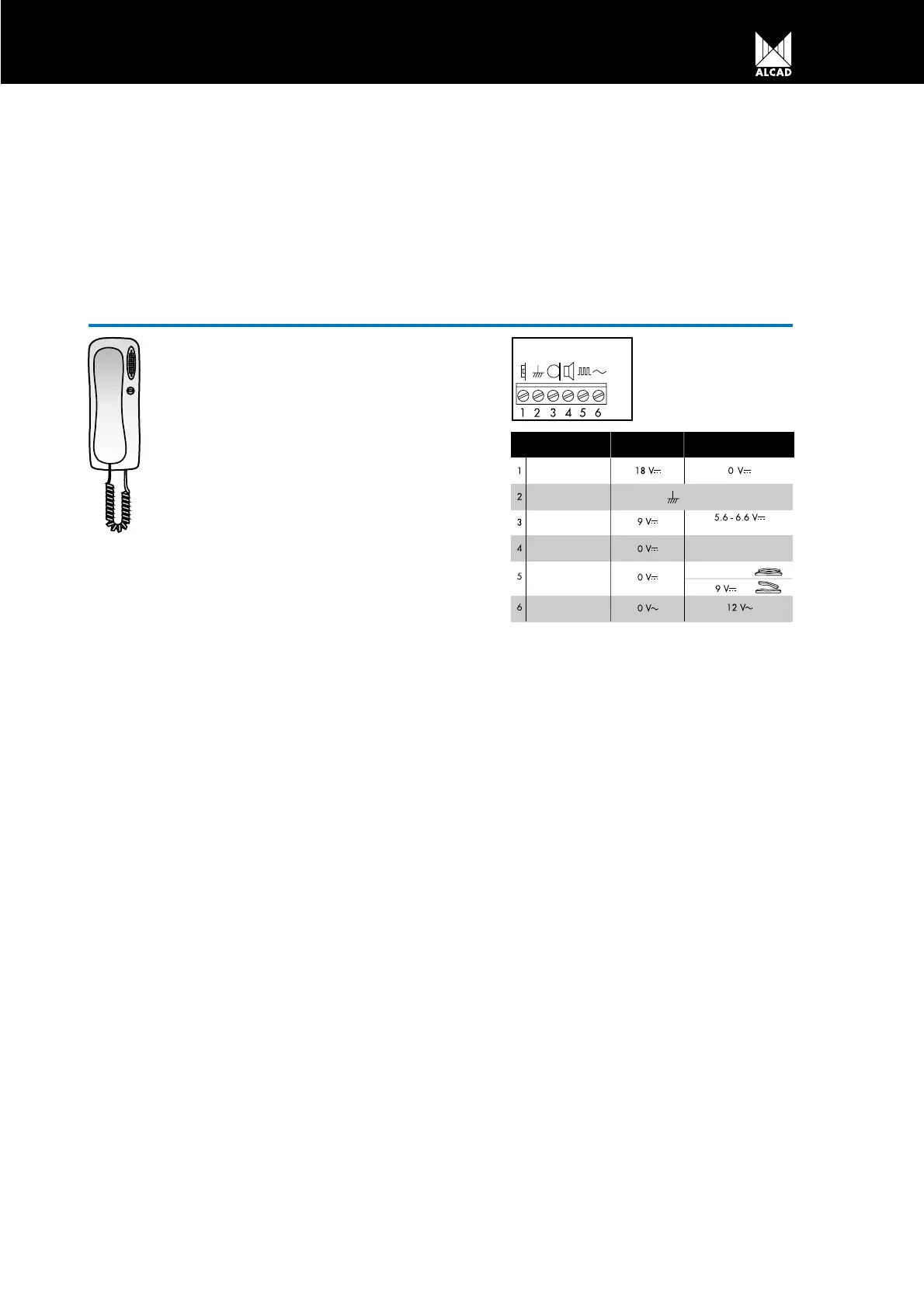

Ref. 9600002
UNIVERSAL TELEPHONE
TUN-001
Telephone intended for wall mounting in conven-
tional 4+N system. Compatible with door entry
systems produced by a broad range of manufactu-
rers. Can be used in systems with either an electro-
nic call or buzzer.
The telephone unit comprises a base, a handset
and a handset cord. This allows the user to answer
the call from the entrance panel, talk to the caller
and operate the electric door by pressing a button.
The door lock release button is located on the side of
the telephone, so it can be used without picking the
handset up.
It has audio level controls ensuring the telephone
works perfectly with any entry door entry system.
This enables possible feedback problems at the
entrance panel or telephone end to be avoided.
A jumper is incorporated to enable compatibility
with 4+N separated common lines door entry
systems.
Dimensions of base + handset: 84 mm x 224 mm
x 50.6 mm
Operating temperature +5 to +55°C
