Alcatel-Lucent 7210 User Manual

Hardware Description
Page 16 7210 SAS-M Installation Guide
Hardware Description

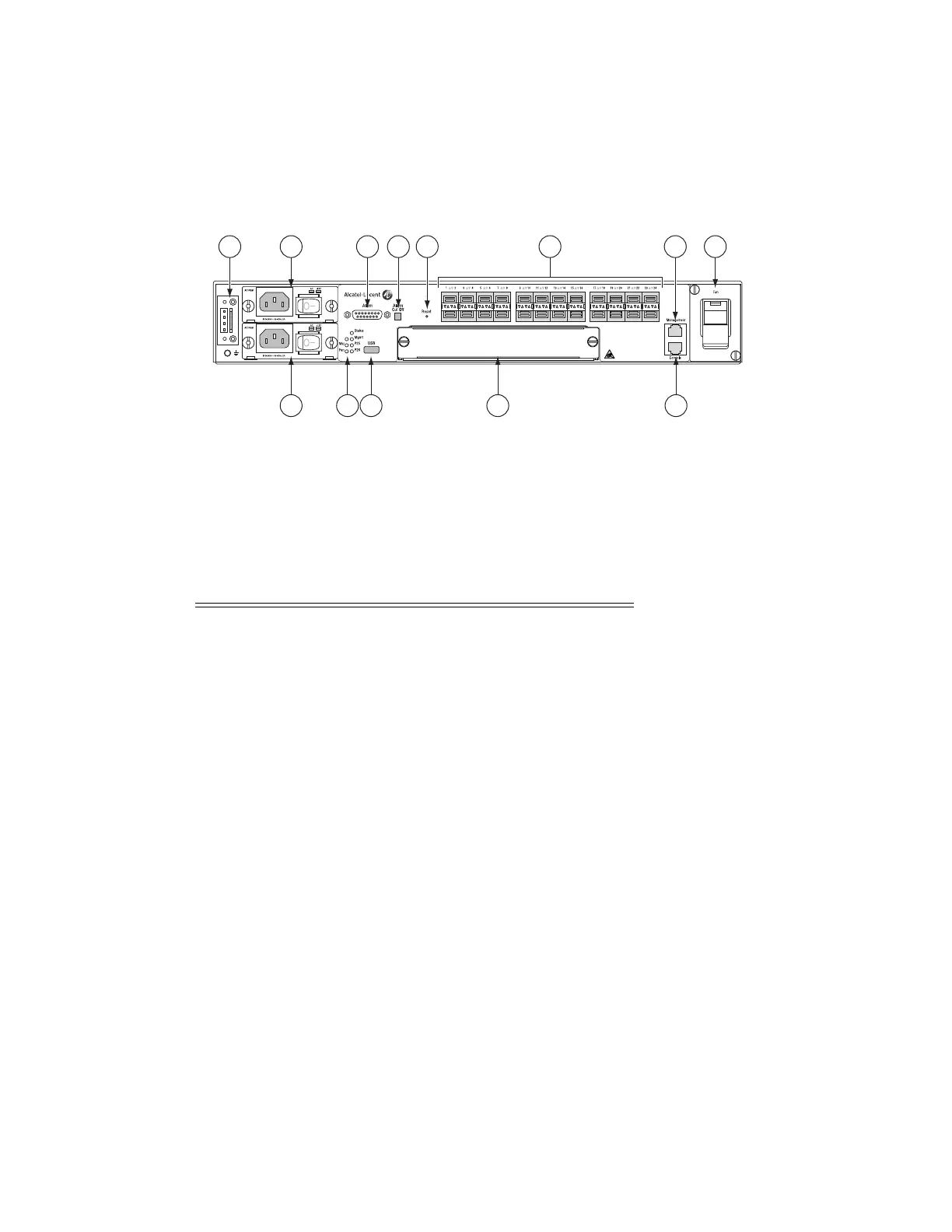

Figure 3: 7210 SAS-M 24F Front Panel
7210 SAS-M
Service Access Switch
24 SFP
Crit
1 4 6 7 9 10 12
2b
2a
3 5 8 11
SR72001
Table 2: 7210 SAS-M Front Panel Features
Key Description
1 Ground and DC power connection
2 Power trays
Power tray one to fit power supply 2a
Power tray two to fit power supply 2b
3 LEDs
4 Alarm connector
5USB port
6 Alarm cut off button
7 Reset button
8 Expansion slot
9 100/1000 SFP port LEDs
10 Management port
11 Console port
12 Fan tray

Alcatel-Lucent 7210 Specifications

General

Product Type	Switch
Product Family	Service Access Switch
Form Factor	Varies by model (e.g., 1U, 2U, or modular)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Management	CLI, SNMP, Web-based GUI
Model	7210 SAS-M
Power Supply	Redundant AC or DC power supplies
