7210 SAS-M Overview
7210 SAS-M Installation Guide Page 29
System LEDs and Buttons
The LEDs are located on the front panel and the power module trays. See Figure 8 for the location
of the system LEDs and buttons, Table 7 for key descriptions, and Table 8 for alarm descriptions.

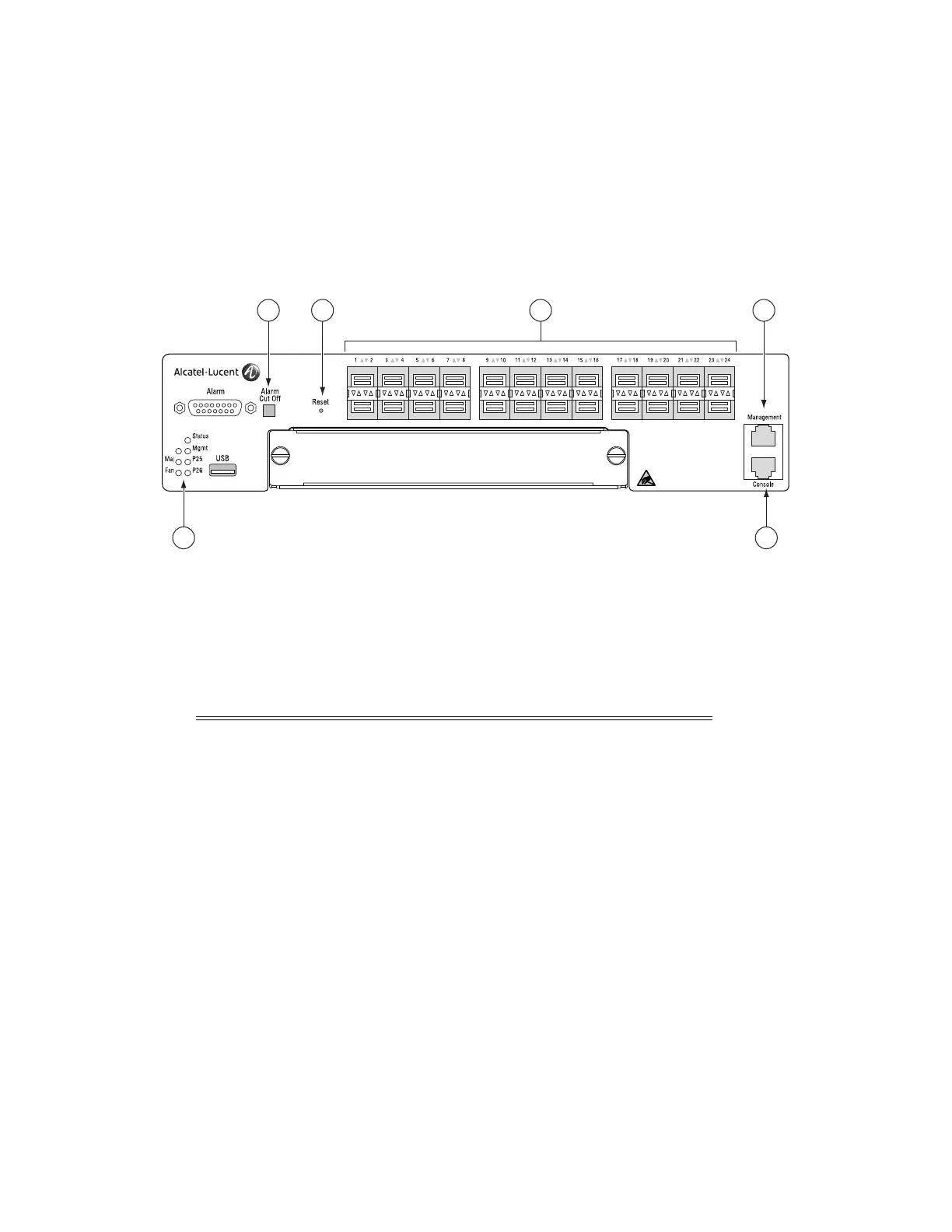

Figure 8: System LEDs and Buttons
7210 SAS-M
Service Access Switch
24 SFP
Crit
3
2 54
1 6
SR72025
Table 7: 7210 SAS-M System LEDs and Buttons
Key Description
1 Alarm LEDs and 10G port LEDs for 7210 SAS M 24F 2XFP
and 7210 SAS-M 24F 2XFP ETR only
2 Alarm Cut Off button
3 Reset button
4 100/1000 SFP port LEDs
5 Management port
6Console port
