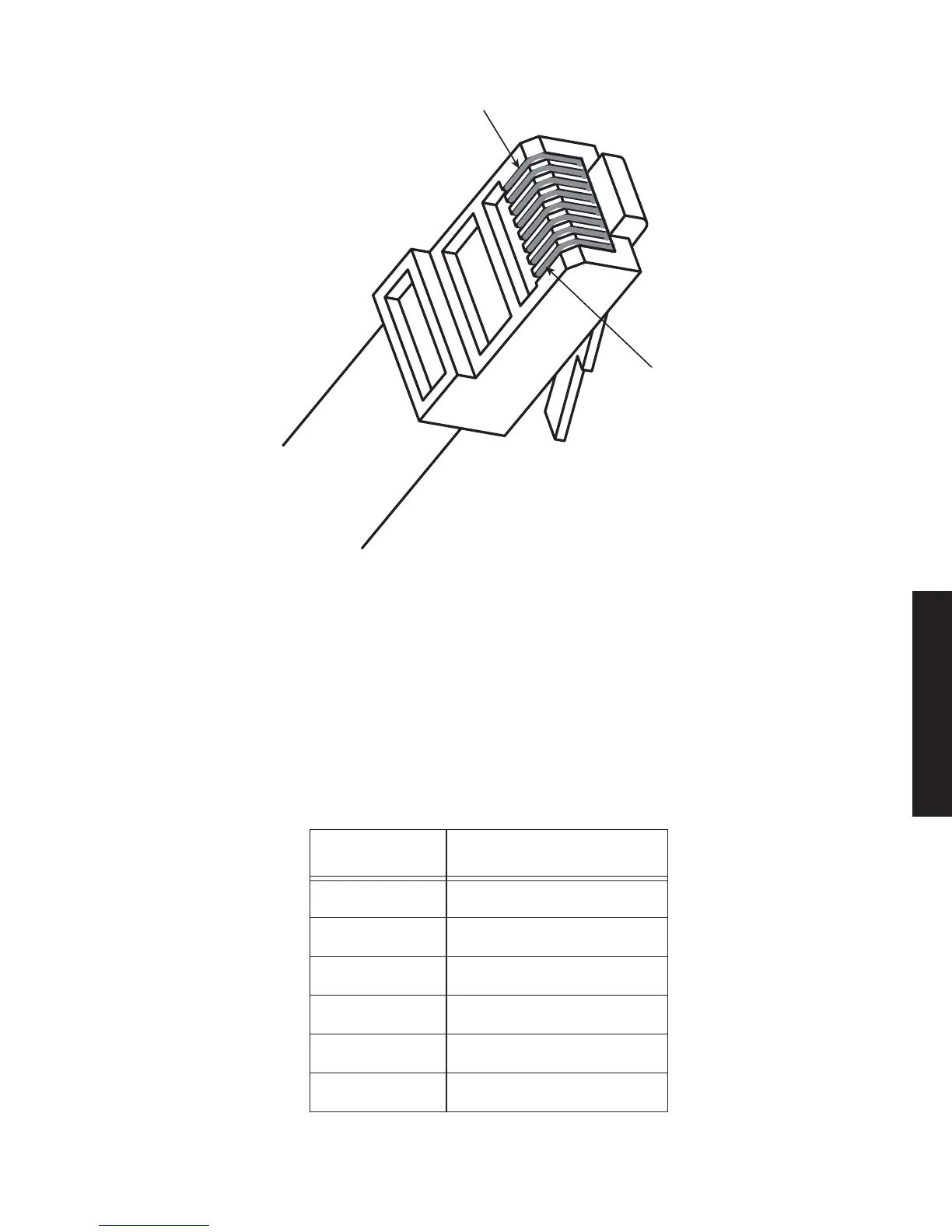

Figure 3-39 Typical RJ-45 Connector Pinout
3.19.3.1
Ethernet (ETH) 1 Uplink Connector J1
Uplink connector J1 is crosswired internally. Use a straight-through cable for connecting
to hub or other equipment. Refer to Table 3-22 for module connector pinout.
Table 3-22 ETH1 Uplink Connector J1 Pinout
PIN FUNCTION
1 TX+
2 TX-
3 RX+
4/5 GND (via 75 ohm resistor)
6 RX-
7/8 GND (via 75 ohm resistor)
PIN 1
LMW-8053F
06/30/03
PIN 8
