Alcatel-Lucent MDR-8000 - Station Alarm Wiring

3-78
3.22.4
Station Alarm Wiring
See Figure 3-47. Use wire wrap adapter PN 695-4171-002 to connect station alarm inputs
to the AE-27A Relay Interface module, via connector J305, in each rack. A typical connec-
tion scenario is shown. The station/shelf alarm for MCS-11 address A1A (MCS-11 alarm
point 1) is connected by software. The station alarms for MCS-11 address A1B and A1C are
assigned to MCS-11 Alarm points 2 and 3, respectively.

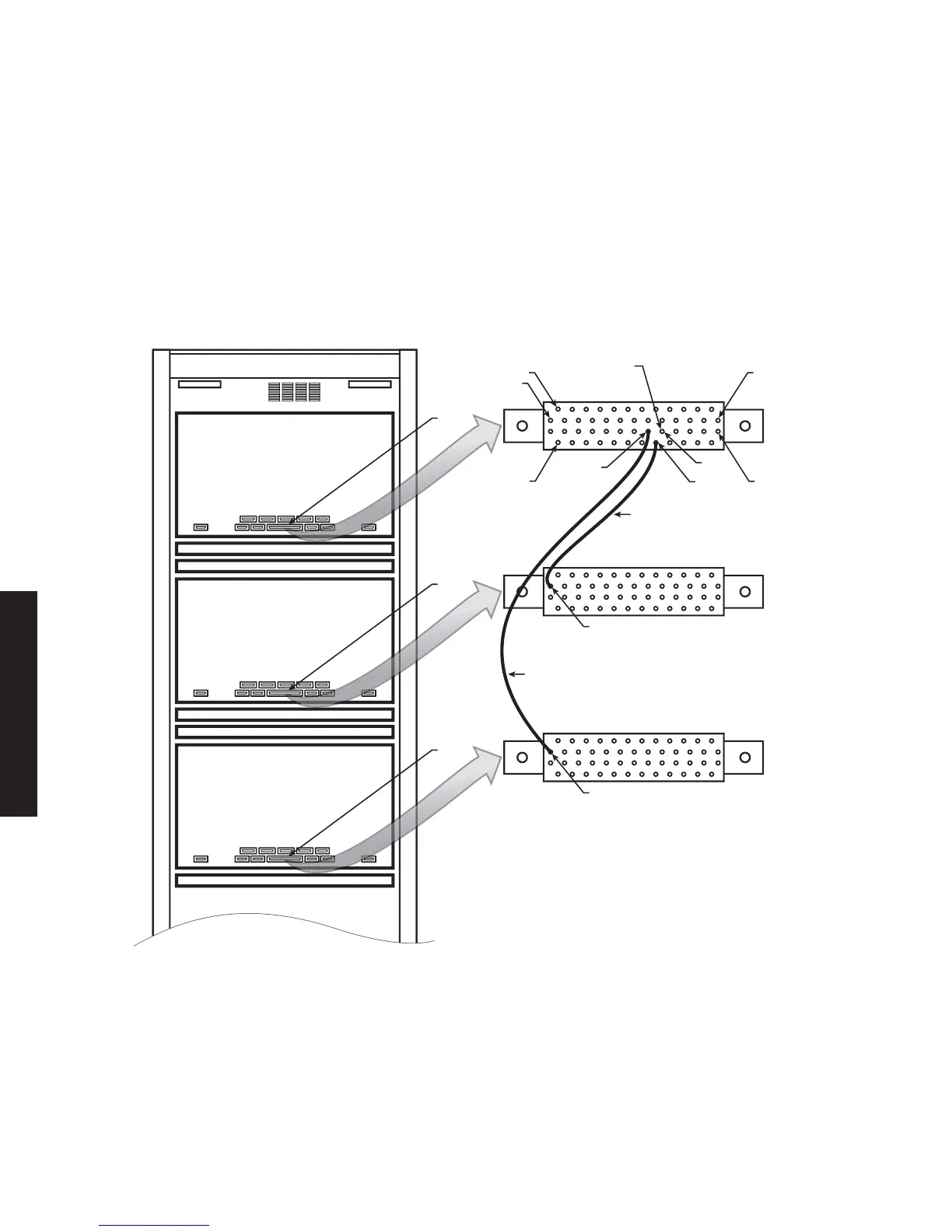

Figure 3-47 Station Alarm Wiring
MCS-11
ADDRESS
A1A
MDR-8000 SHELF
FAN ASSY
HEAT DEFLECTOR
MCS-11
ADDRESS
A1B
MDR-8000 SHELF
FAN ASSY
HEAT DEFLECTOR
MCS-11
ADDRESS
A1C
MDR-8000 SHELF
FAN ASSY
PDU
J305
J305
NOTE
SOFTWARE AUTOMATICALLY CONNECTS
RACK ALM OUTPUT FROM CONTROLLER
J305-25 TO #1 STATION ALM INPUT J305-24.
J305
25
RACK ALM
PIN 1
26
34
36
35
PIN 25
RACK ALM
PIN 25
RACK ALM
49
24
#1 STATION
ALM
WIRE WRAP ADAPTER
(PN 695-4171-002)
#3 STATION
ALM
#2 STATION
ALM
(SEE NOTE)
LMW-8002F
07/28/02
