3-72
3.21
FOREIGN ALARM INTERFACE (J305)
Recommended connectorized cable assembly – PN 695-4121-001/003 (24 AWG 25 pair
cable). See Figure 3-45 for shelf connector location and pinout. Refer to Table 3-29 for
mating cable pinout and color code.
or
Recommended wirewrap cable – PN 424-0429-020 (22 AWG 30-pair twisted cable) for use
with wirewrap adapter PN 695-4171-002. Refer to Table 3-29 for pinout.
TBOS connections on J305 share pins with station alarms 13 through
16 and either TBOS or station alarms 13 through 16 is selected (provi-
sioned) on the USI Radio Configuration Provisioning screen.

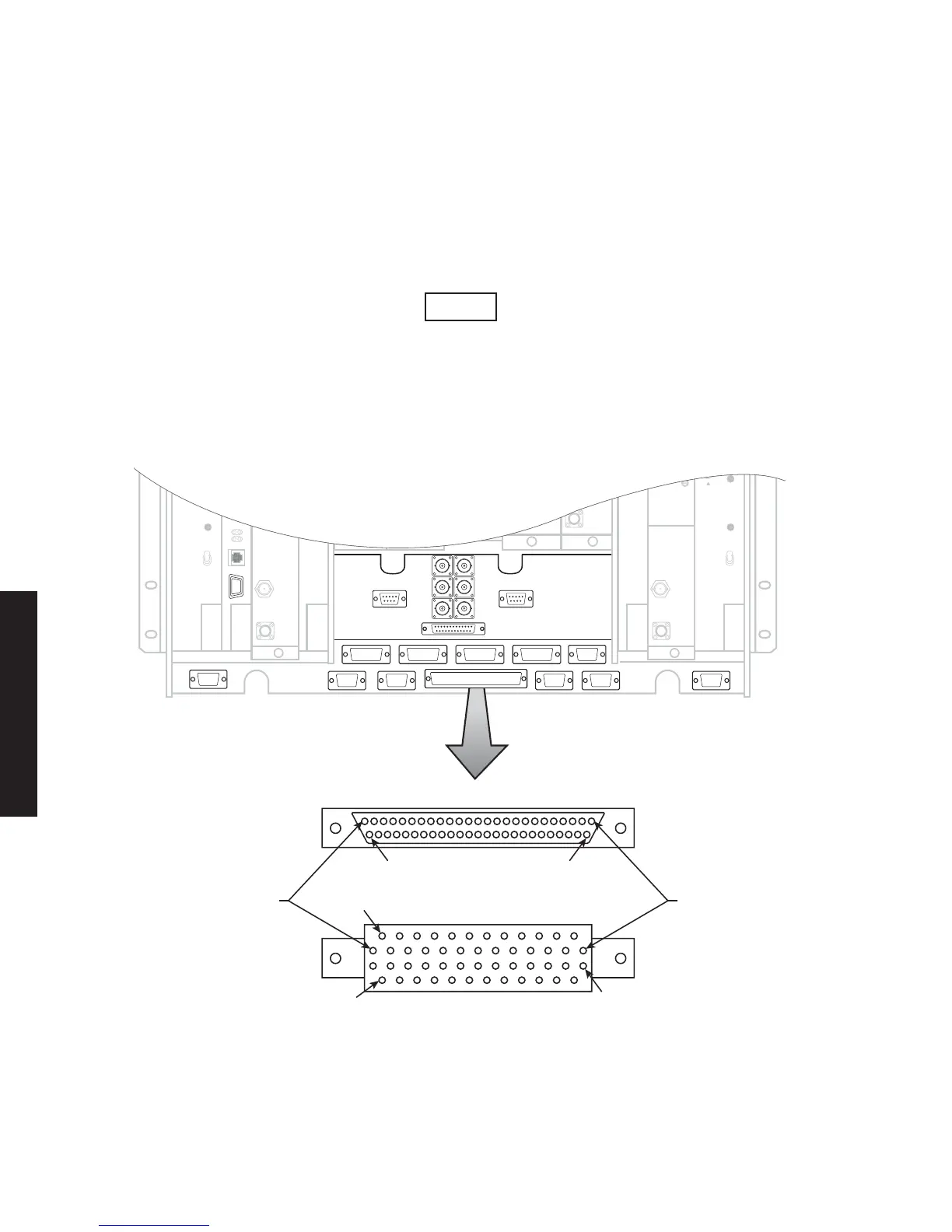

Figure 3-45 Alarm/Status/TBOS Connector J305 Location and Pinout
Note
J315
J301
J313
J308 J309 J310 J312
J318
J305
J316 J317 J302
J307
24
1
J305
FRONT VIEW
WIRE WRAP ADAPTER
26
2650
49
25
J305
LMW-7060F
07/23/02
