3-35
3.16 USI/CONTROLLER CABLE CONNECTION TO LAPTOP (J301)
Recommended connectorized cable assembly – PN 695-7848-001 through 004 (24 AWG 6
pair shielded, jacketed cable with DEMM-9P connector on each end). See
Figure 3 - 21 for
Figure 3 - 22 for controller connector location and pinout. Refer to Table 3 - 17 for mating
cable pinout and color code.

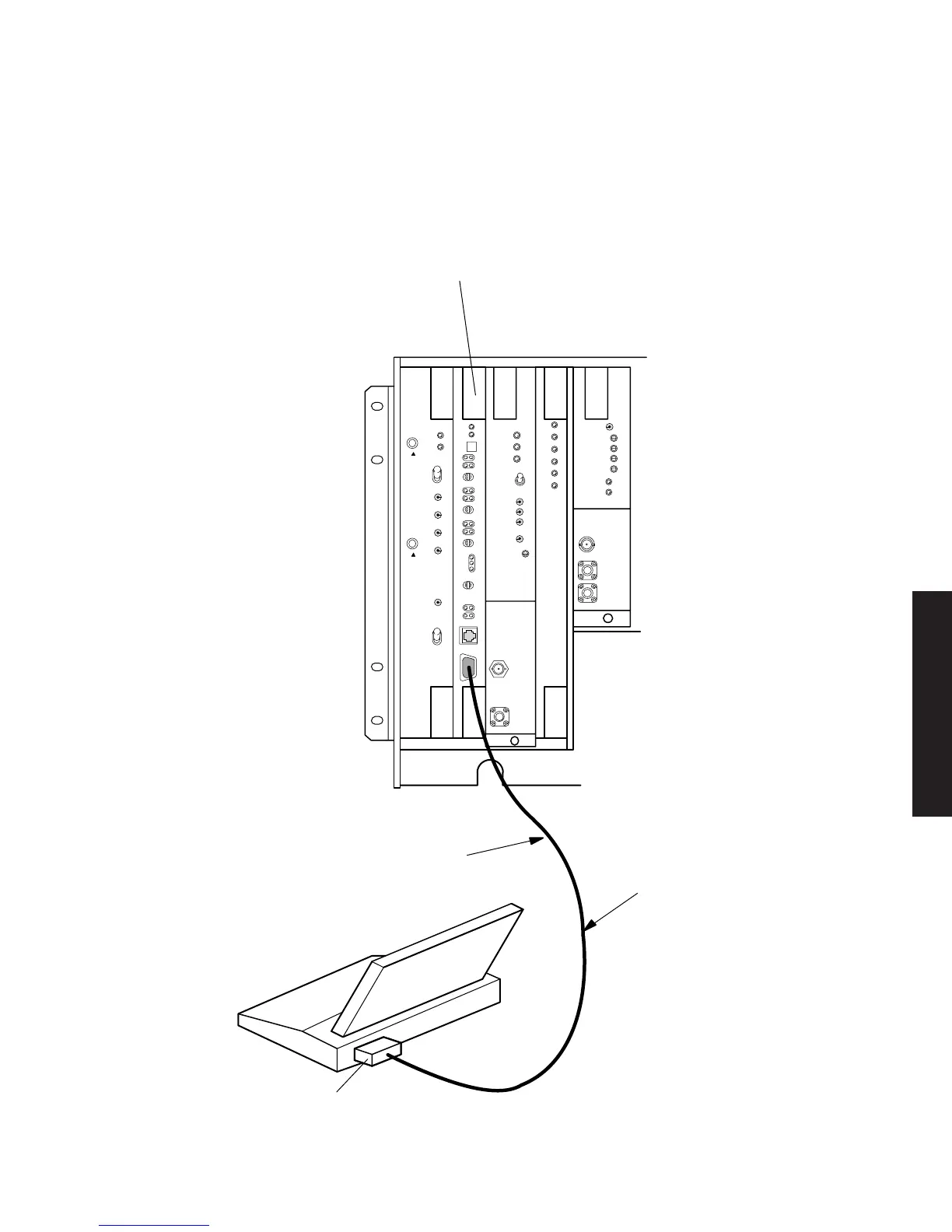

Figure 3 - 21 USI Computer to Controller Interconnection
MW211–0066–1
101598
AE–37( )
CNTLR
C1
RS–232C PORT
RS–232C
INTERFACE CABLE
USI
TERMINAL
TO CONNECTOR J301
(CONNECTS TO
AE–37 CONTROLLER)
MDR–8000
SHELF
