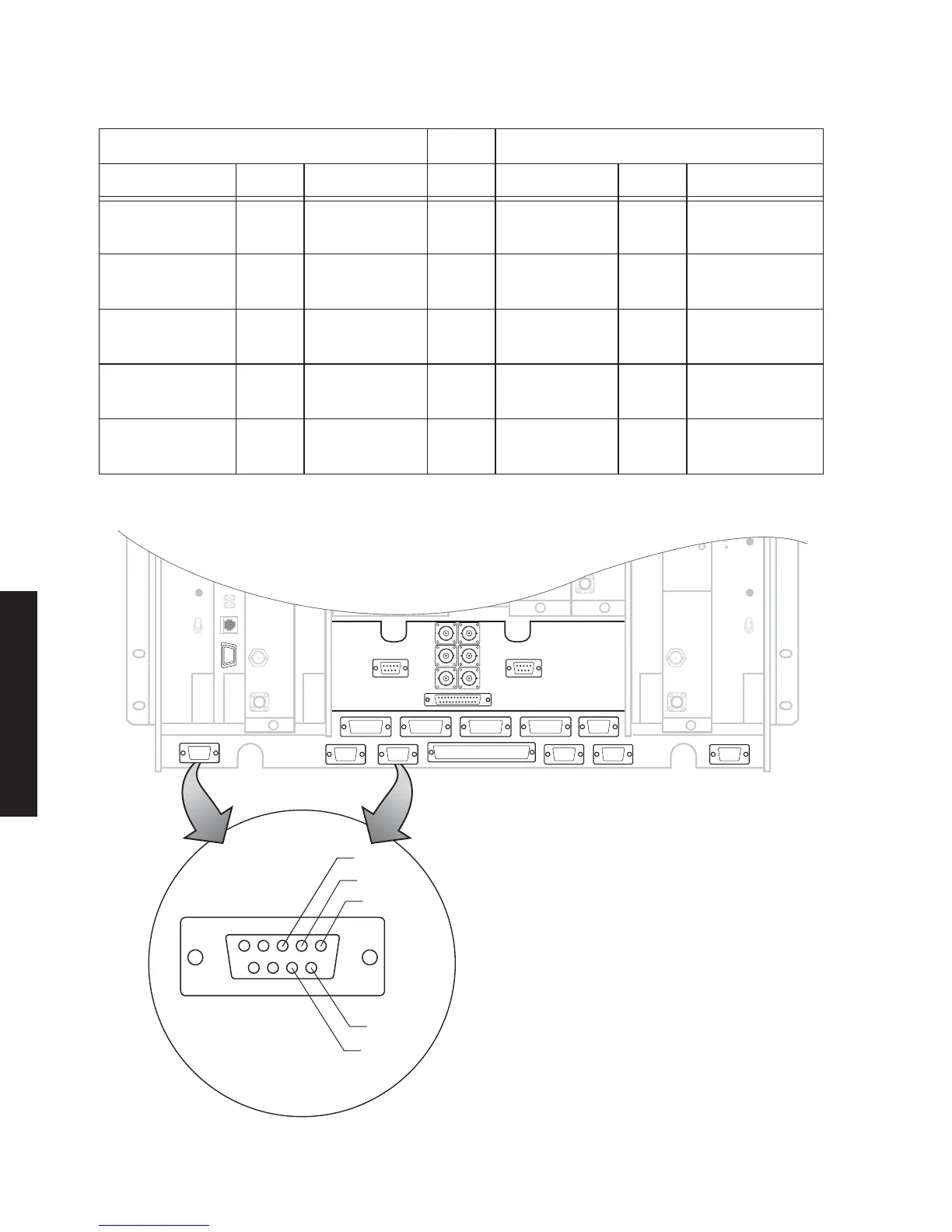

Figure 3-43 ELMC Connectors Location and Pinout
Table 3-28 ELMC Connector J315/J318 Mating Cable Wiring and Pinout
J315/J318 MDR-8000 J315/J318 MDR-8000
FUNCTION END 1 WIRE COLOR PAIR WIRE COLOR END 2 FUNCTION
RCV+ 01 BLACK 1 BLACK 02 XMT+
RCV- 06 RED RED 07 XMT-
XMT+ 02 BLACK 2 BLACK 01 RCV+
XMT- 07 WHITE WHITE 06 RCV-
NOT USED BLACK 3 BLACK NOT USED
GND 03 GREEN GREEN 03 GND
NOT USED 04 BLACK 4 BLACK 05 NOT USED
NOT USED 08 BLUE BLUE 09 NOT USED
NOT USED 05 BLACK 5 BLACK 04 NOT USED
NOT USED 09 YELLOW YELLOW 08 NOT USED
J315
J301
J313
J308 J309 J310 J312
J318
J305
J316 J317 J302
5
9876
4321
J315/J318
FRONT VIEW
GND
XMT +
RCV +
XMT –
RCV –
J307 J312J308 J309
J313
J315
J318
