2-16

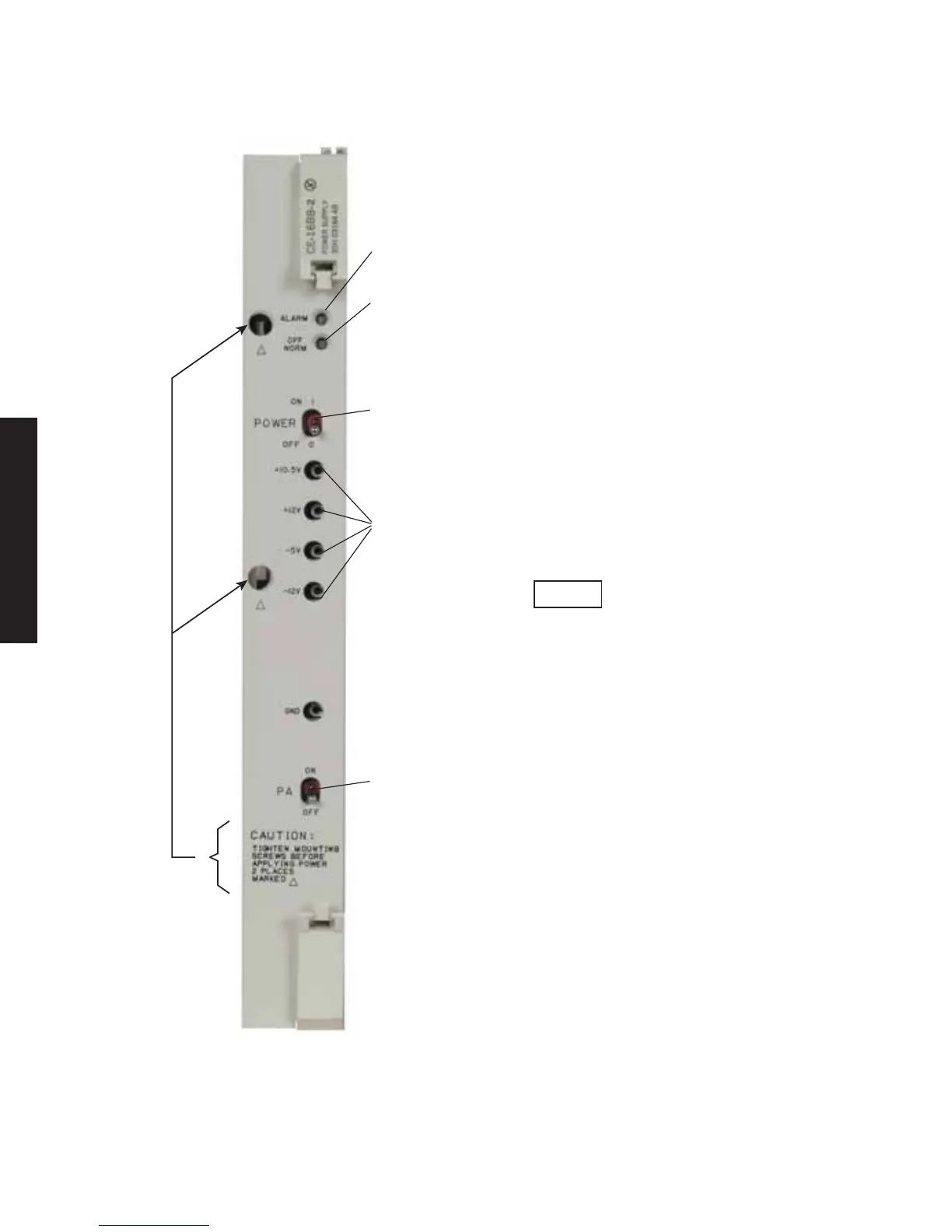

Figure 2-8 CE-16BB Power Supply Controls, Indicators, Test Points, and Connectors (Sheet 1 of 2)
RED LED INDICATES INTERNAL
FAILURE OR BLOWN FUSE.
YELLOW LED INDICATES PA ON/OFF
SWITCH IS SET TO OFF (LED IS LABELED
OFF NORM ON OLDER VERSIONS OF
POWER SUPPLIES).
FACTORY TEST POINTS FOR
POWER SUPPLY VOLTAGES.
2-POSITION TOGGLE SWITCH
APPLIES POWER TO POWER SUPPLY
(ON 1) OR REMOVES POWER (OFF 0).
2-POSITION TOGGLE SWITCH
APPLIES POWER TO PA (IF EQUIPPED)
(ON) OR REMOVES POWER (OFF).
MDR-1101P
01/13/05
Note
Power Supply versions 3DH03164ABAB and
3DH03164ABAD do not require mounting to the
shelf heat sink and therefore have no screw holes
on the front panel. All other versions have
mounting screw holes on the front panel.
