Phone line
connector
Handset connector

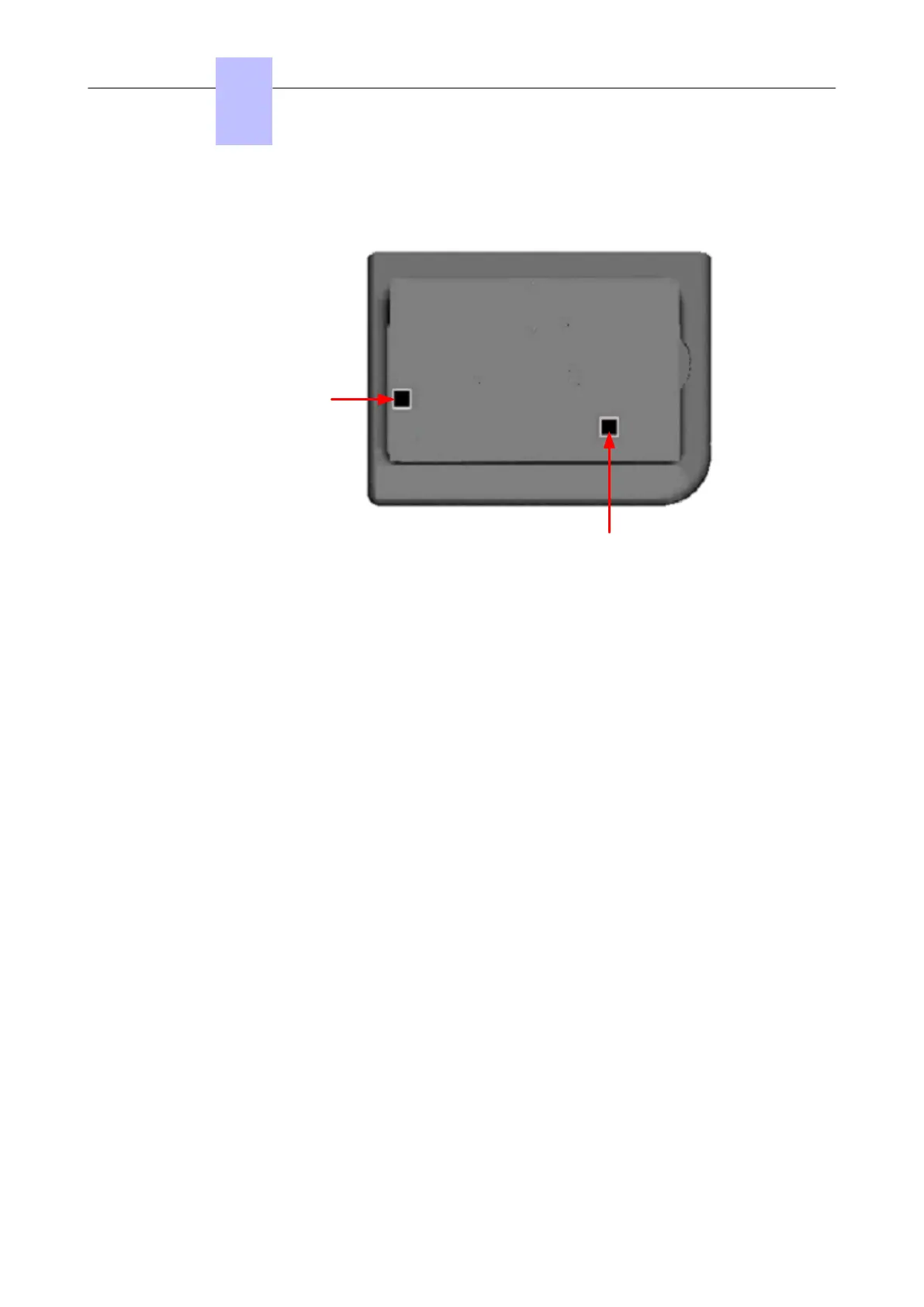

Figure 4.9: Alcatel-Lucent 4019 Digital Phone connectors
4.9.1.2 Commissioning the set
This section describes how to:
• Connect the set
• Program keys
4.9.1.2.1 Prerequisites
None.
4.9.1.2.2 Connecting the set
This section describes how to connect the set to the telephone system.
4.9.1.2.2.1 Prerequisites
None.
4.9.1.2.2.2 Connecting the set to the telephone system
To connect the set to the telephone system:
1. Turn the set over so that you can see its base.
2. Plug the RJ11 cable into the set's UA port/phone line connector.
3. Connect the RJ11 cable to a UA port in the telephone system.
4.9.1.2.3 Programming keys
This section describes how to program the programmable keys.
In fact, only the direct call key can be programmed (with a telephone number), which by default is the
sixth programmable key. However, the Personal/Dial by name key can be programmed in a similar way.
To program a key:
1. Press the i key followed by the required programmable key.
2. Press one key of the 2-way navigator (up or down).
3. Enter the telephone number to be associated with this programmable key.
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 107/207
