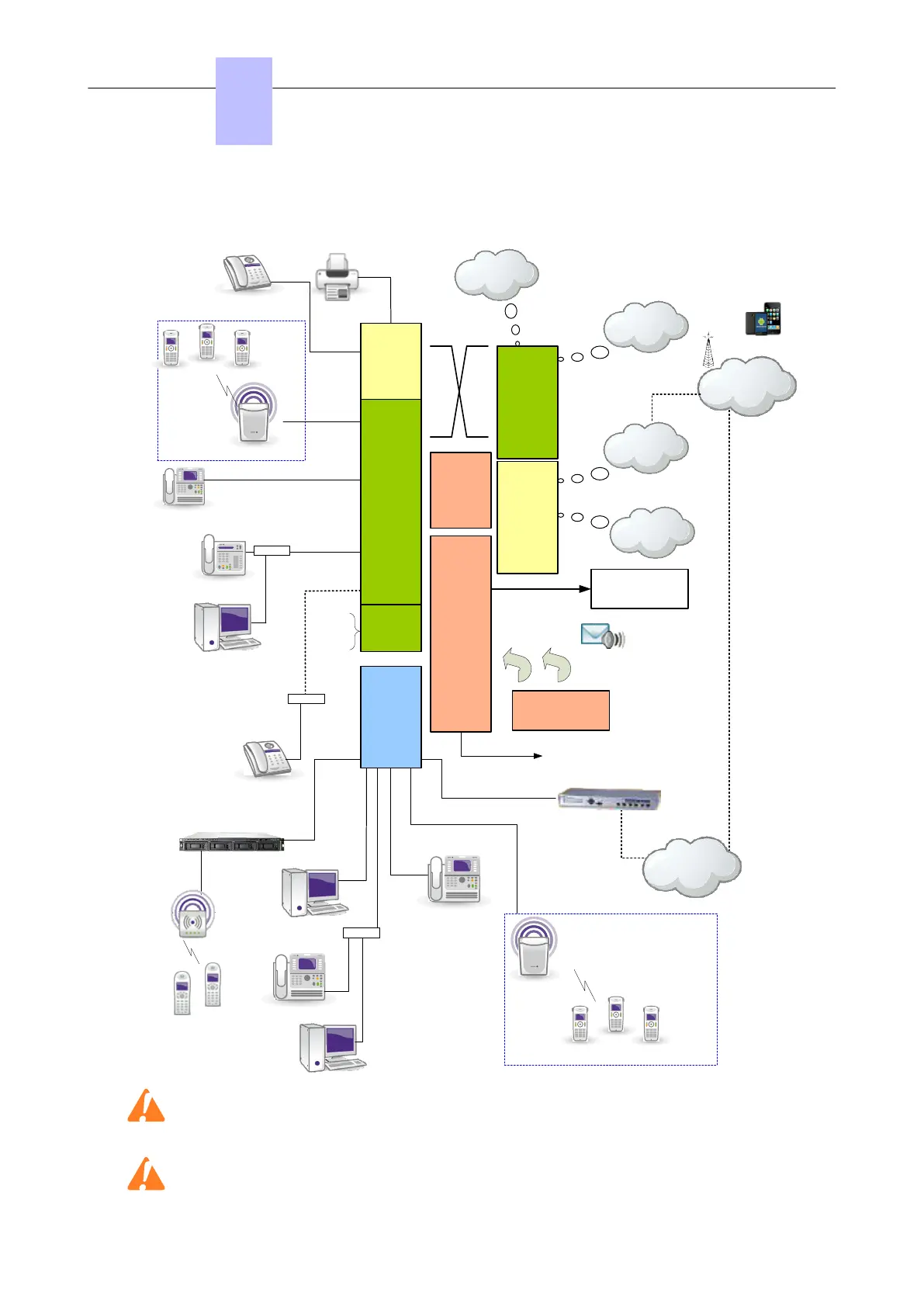

2.3 Installation Summary
Z Board
UA Board
Auxiliary
IBS
Analog set
Fax
IBS DECT
T0 – T2
Trunk/Tie line
Private
Network (QSIG)
ISDN
Wireless network
(3G to 3,5G)
PSTN
HSL Link
Core CPU
LAN
LAN switch
Analog Trunk
/DDI
Tie line
Private Network
VoIP
To expansion cabinet
Internet
SBC
Internet
MMC
RS 232 or LAN
V24
(Metering)
or S0
Plugware
Plugware
IP/LAN
10/100 base T
IP
Plugware
PC
UA
OmniAccess
Wireless Switch
IP DeskPhones
IP DAP
IP DECT
OmniTouch
VLAN Handsets
Access
Point
Switch
32x32
IP-DECT Solution
IBS DECT
Solution
Voice Mail
CSTA
ACD
Integrated
applications
Alarm
Audio I/O
PC
Digital Premium Deskphones
OTCV applications
This hardware must be installed on the customer's site, by a qualified installer, in compliance
with the instructions provided with the hardware.
Equipment shall be installed at the factory or in the field by submitter's trained personnel in
accordance with the installation instruction provided with the equipment.
Chapter
2
Hardware: Platform and Interfaces
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 23/207
