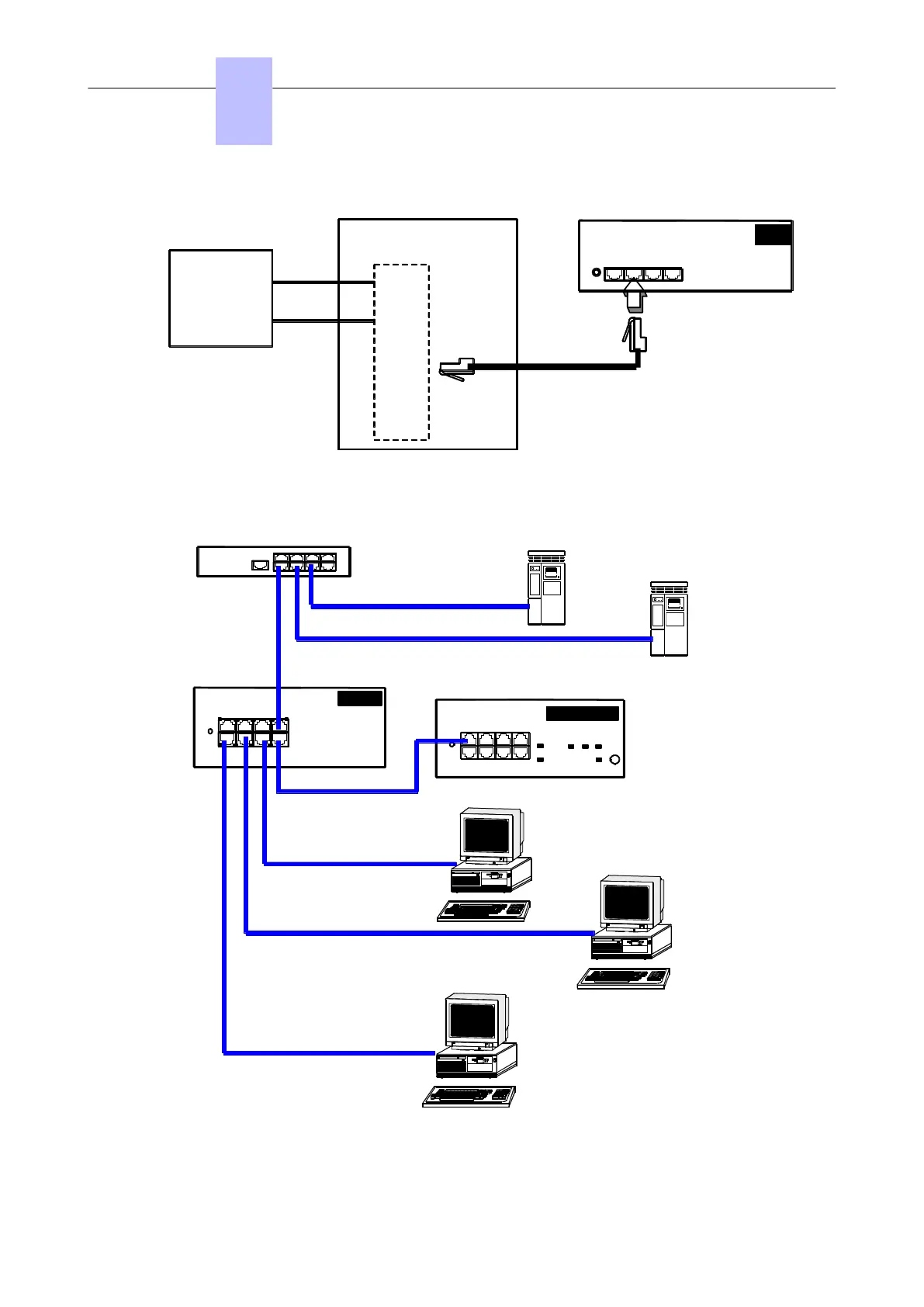

4.2.5.4 Analog Public Network - Direct Dialing In.
L+
L-
Distribution panel
DIRECT DIALLING INWARD
DDI4
Network
Public
Analog
4.2.6 LAN Connection
The LanX8-2/LanX16-2 board is used to connect servers, PCs, IP terminals and external switches.
PROCESSING UNIT
SWITCH
Alcatel
Port 1
Port 2
Port 3
Port 4
Up-Link
ETHERNET LANSWITCH
Ethernet 10/100 Mbits
Ethernet 10/100 Mbits
Ethernet 10/100 Mbits
Ethernet 10/100 Mbits
Ethernet 10/100 Mbits
Host 1
Host 2
Host 3
LanX8-2
PowerCPU EE
Server 2
Server 1
Category 5 cable, FTP or STP, impedance 100 Ohms: maximum length 100 m.
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 54/207
